PART №1708

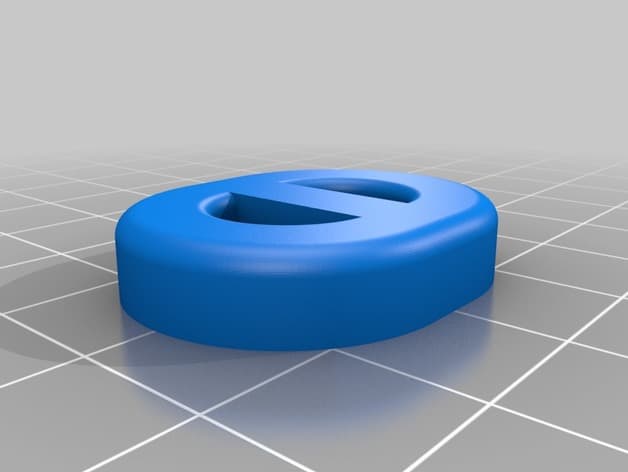

Air-Filter Housing Rubber Mount

REPLACES OEMA6110940385
TPU1 FILECC-BY-NCEngine & intake
SummaryREF 1708
PART
Air-Filter Housing Rubber Mount
OEM
A6110940385
FITS
C-Class W203 / S203 / CL203
PartREV 2026

Loading 3D viewer...

Ref 17081 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1708
  • [01]gomacoche30.stl.STL
  • [02]Bounding box30.000 × 24.444 × 6.000 mm
  • [03]Volume2,988.447 mm³
Field notes
BY RAMON MON (BIMON)

Flexible replacement mount for the diesel air-filter housing, printed and reported satisfactory by the creator. The exact serviced child is Mercedes A6110940385, independently corroborated as an air-filter housing elastomer mount for W203 C200 CDI, C220 CDI and C270 CDI applications; A6110940085 appears as a related alternative reference but is not assigned. Use engine-bay temperature-, oil- and ozone-resistant elastomer, compare the original mount and engine application, fit both required mounts and verify the housing remains secure without transmitting abnormal vibration.
