PART №1855

Air-Vent Phone-Mount Adapter

ABS · PETG2 FILESCC-BYDashboard & controls
SummaryREF 1855
PART
Air-Vent Phone-Mount Adapter
OEM
FITS
E-Class W213 / S213 / C238 / A238
PartREV 2026

Loading 3D viewer...

Ref 18552 STL filesPrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1855
  • [01]DJ_Handy_Halterung_eKlasse_02.stl.STL
  • [02]DJ_Handy_Halterung_eKlasse_04.stl.STL
  • [03]Bounding box81.368 × 36.375 × 30.668 mm
  • [04]Volume9,927.144 mm³
Field notes
BY DJ PICASSO (DJPICASSO)

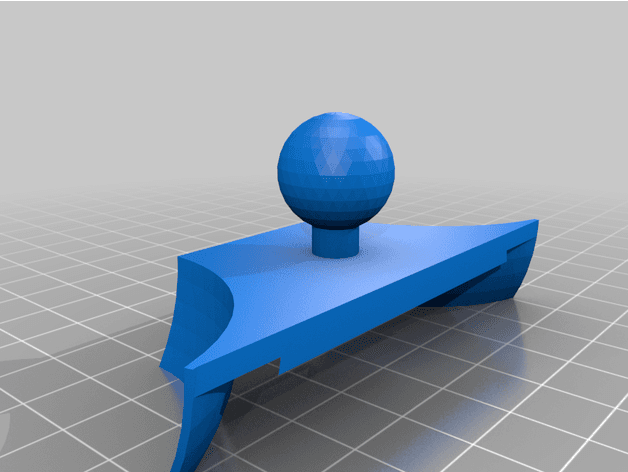

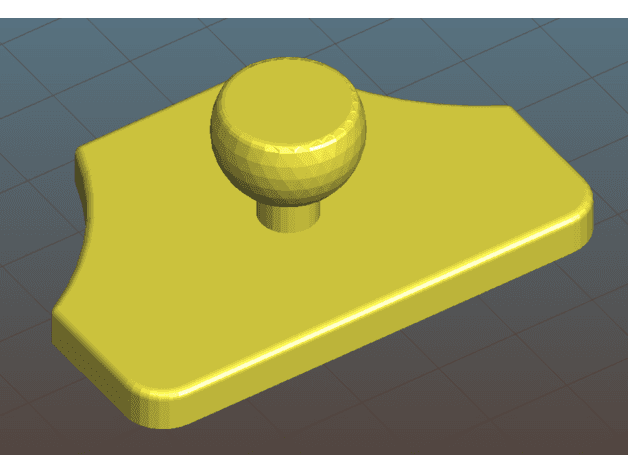

Two alternative bases for attaching an aftermarket ball-joint phone holder between the circular dashboard vents. The creator explicitly designed the geometry for the 213/238-series E-Class vent arrangement and shows the adhesive version installed. The second version is intended to engage the vent slots without adhesive, but the creator states that this version was not tested and warns against PLA because it may break during installation. Use a cabin-heat-resistant material, verify adhesive or clip retention before driving, and keep the device clear of controls, airbags and the driver's view.
