PART №1837
Ashtray MagSafe Charger Mount
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYDashboard & controls
- PART
- Ashtray MagSafe Charger Mount
- OEM
- —
- FITS
- C-Class W205 / S205 / C205 / A205
Loading 3D viewer...
Ref 18372 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions

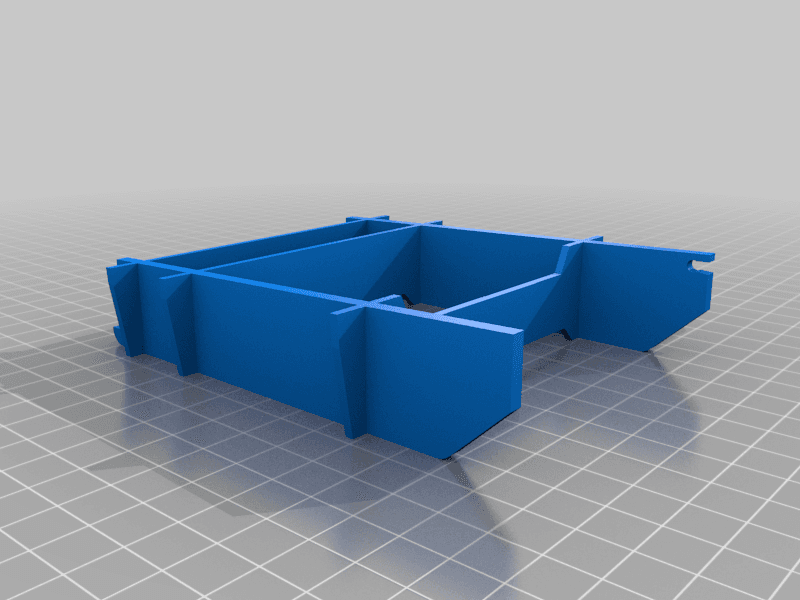

MAN-1837- [01]body.stlbody.stl.STL

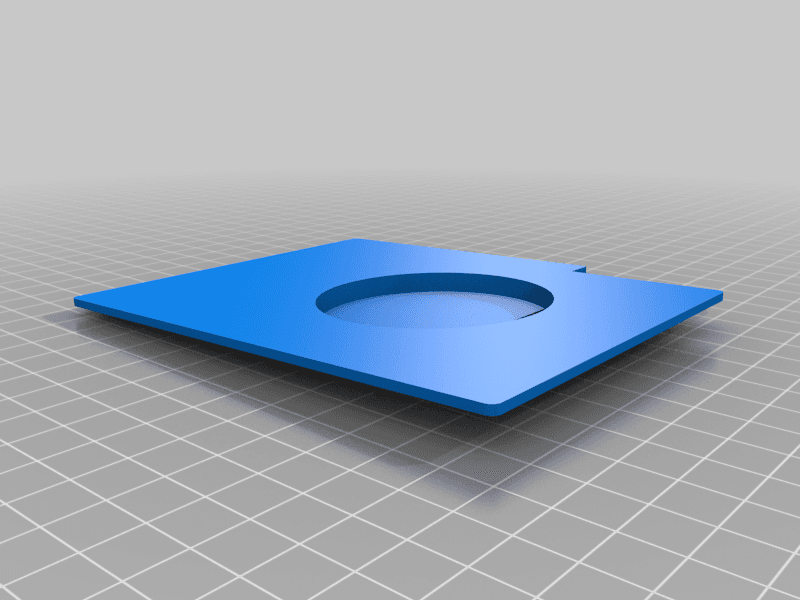

- [02]top.stltop.stl.STL
- [03]Bounding box127.520 × 103.000 × 36.264 mm
- [04]Volume52,944.654 mm³
Field notes

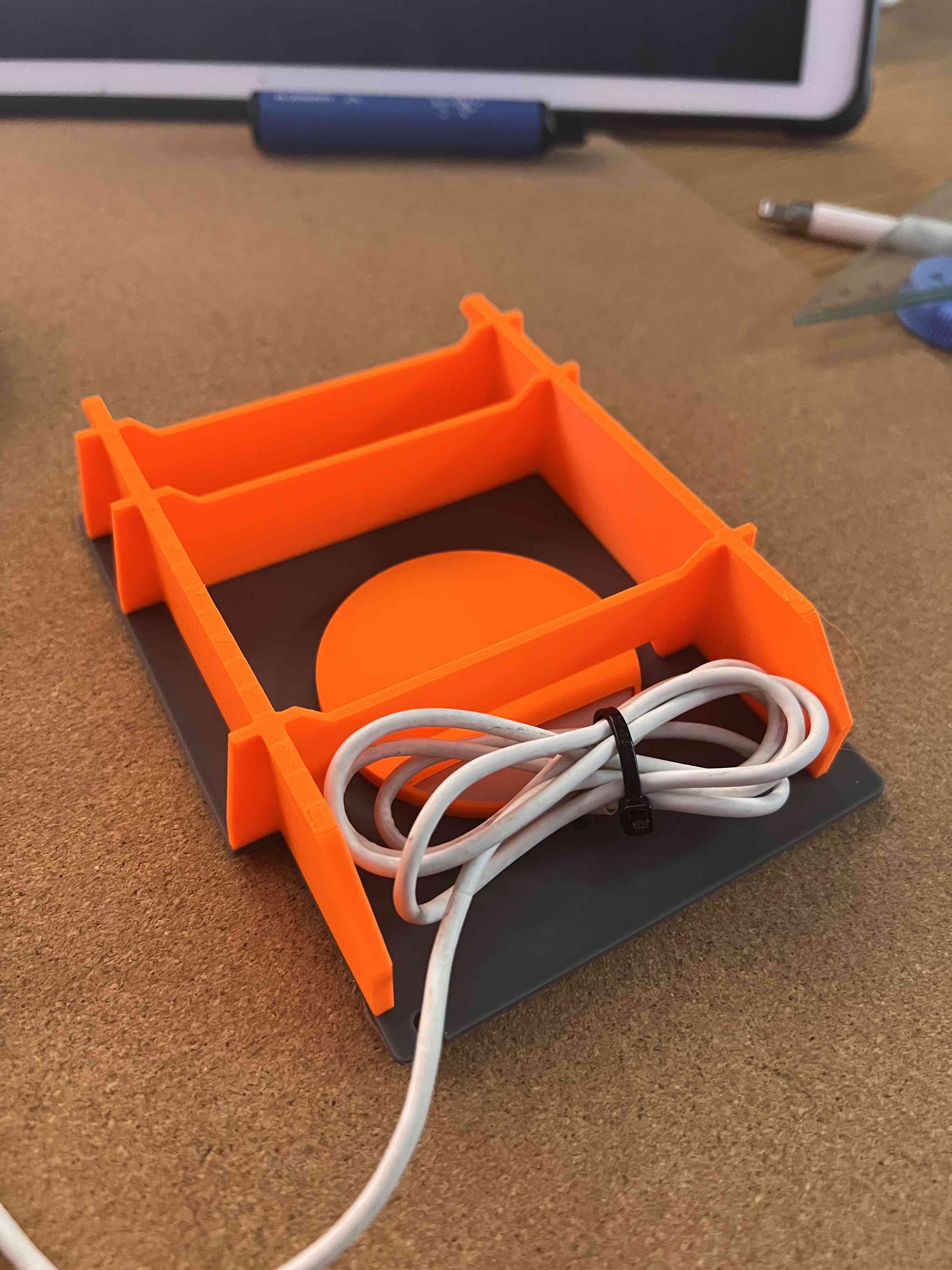

BY GOKER ERKMAN (GOKERERK)Two-part MagSafe-charger stand made to replace the ashtray insert and tested by the creator in the C-Class console. Source images show the physical print and installed charging position. Use cabin-heat-resistant material, verify the charger is securely retained and ventilated, route the cable without pinching it, preserve lid and control movement, and do not use the assembly as an ashtray.
