PART №1669

Ashtray-Replacement Cup Holder

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCConsole & storage
SummaryREF 1669
PART
Ashtray-Replacement Cup Holder
OEM
FITS
Sprinter W901–W905
PartREV 2026

Loading 3D viewer...

Ref 16692 STL filesPrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1669
  • [01]W903 CUP HOLDER PART1.step.STL
  • [02]W903 CUP HOLDER PART2.step.STL
Field notes
BY MAAATSI123

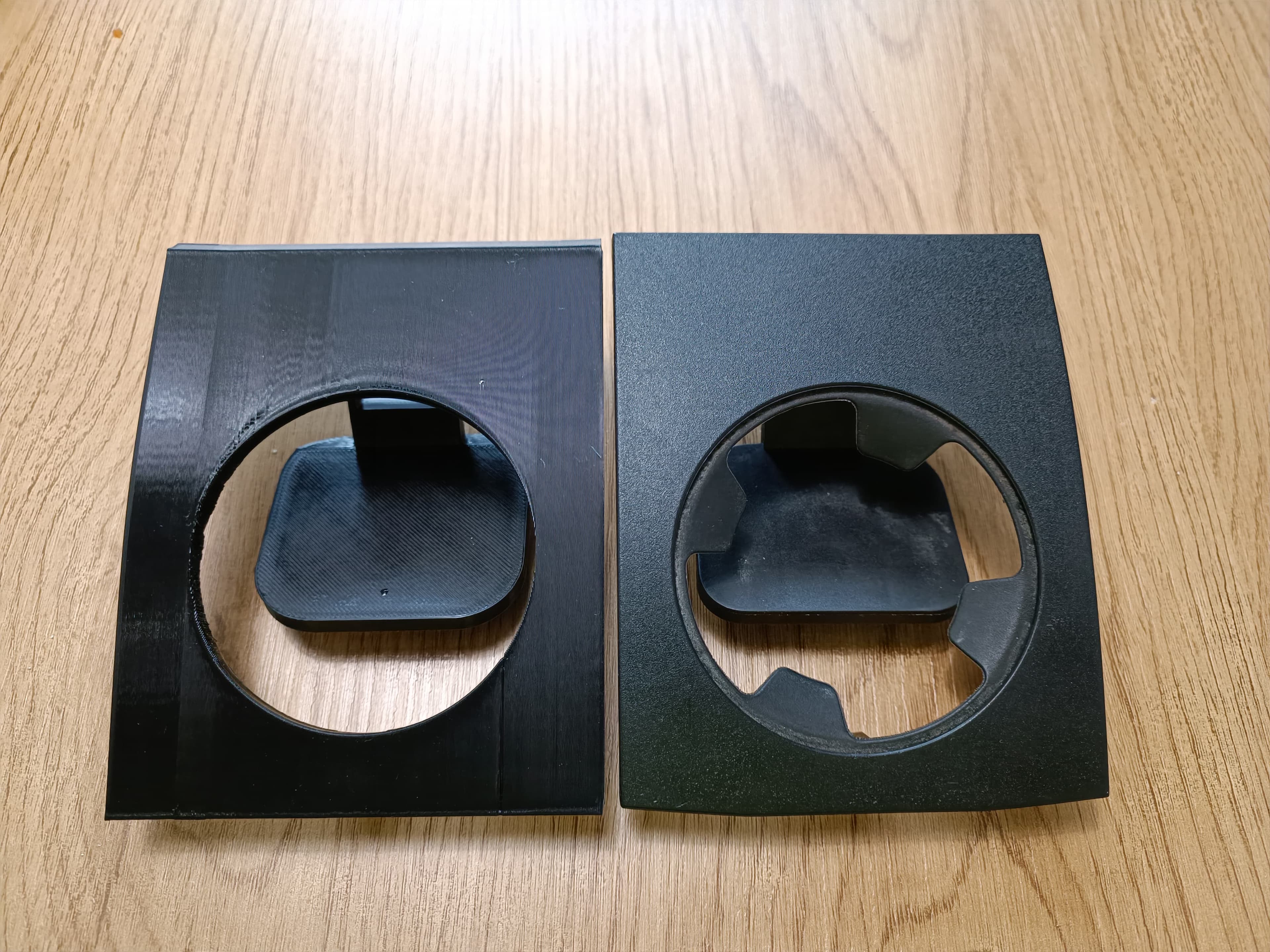

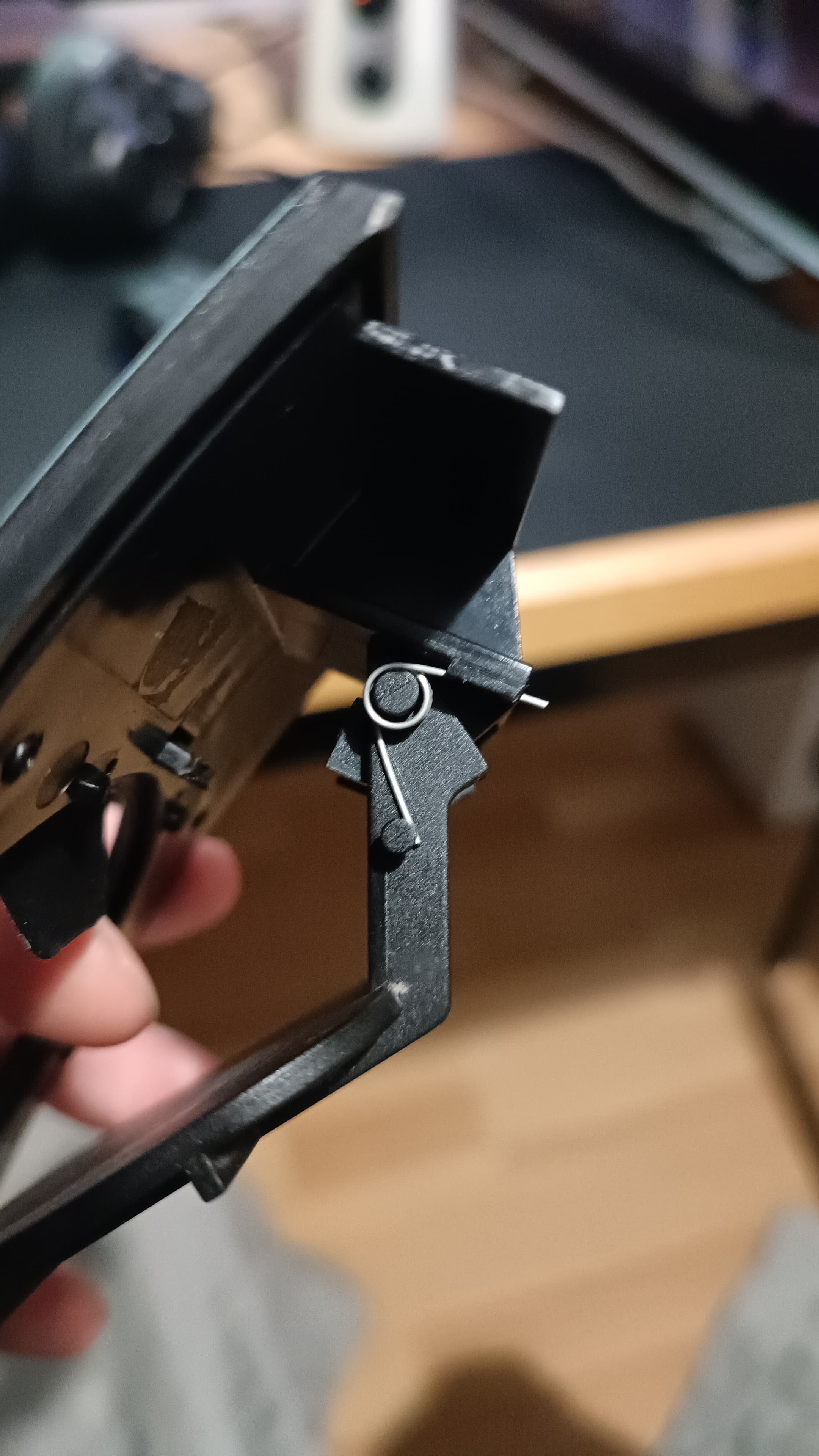

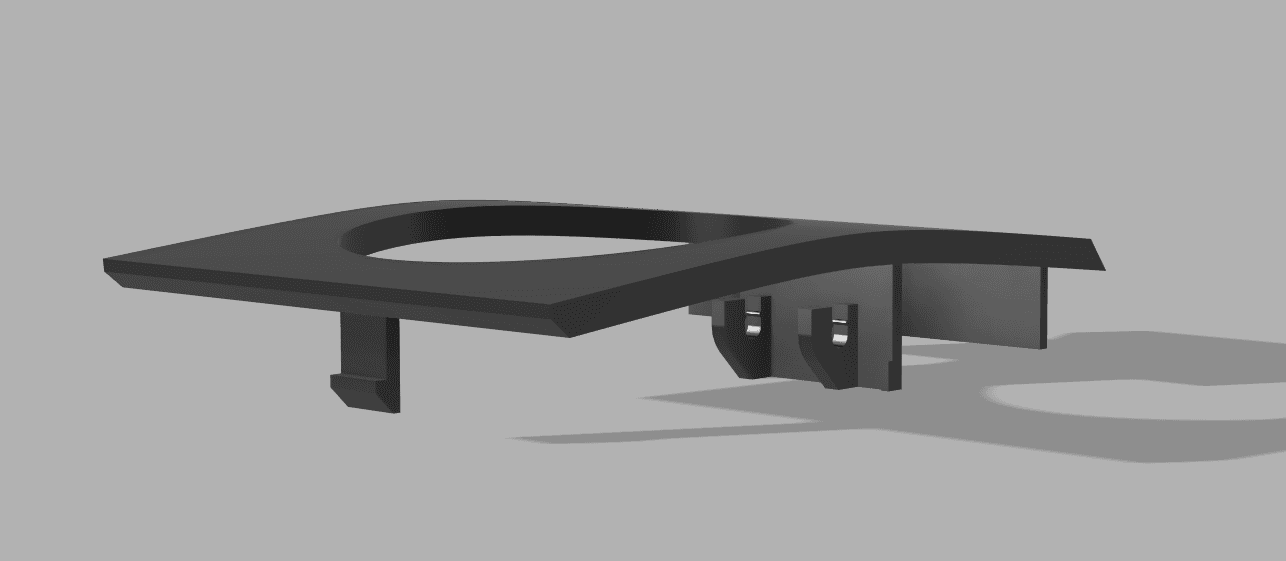

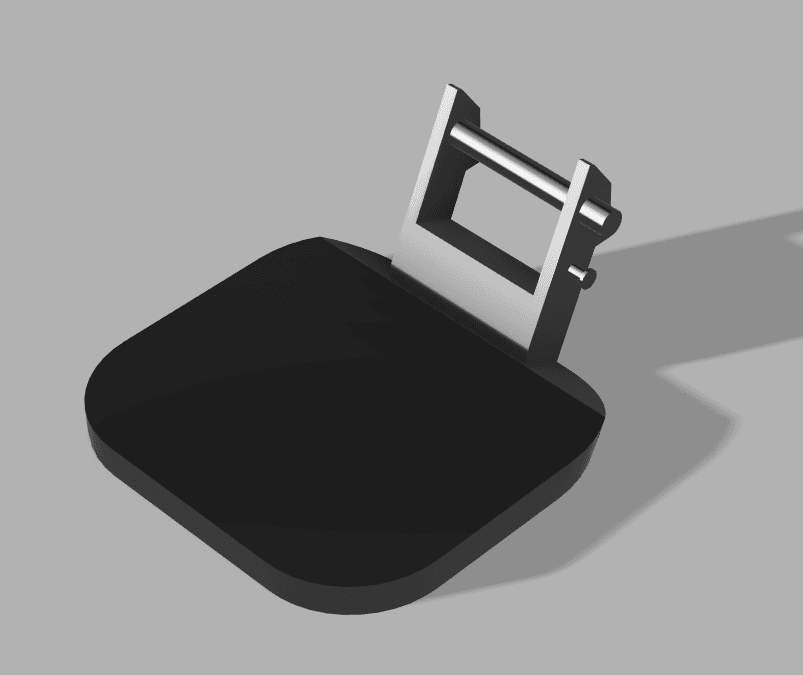

Two-piece cup holder replacing the original dashboard ashtray, explicitly designed for 903-series vans. The creator states that a spring must be added for the mechanism; source imagery shows the installed holder, loose physical parts, mechanism and CAD views. Use cabin-heat-resistant material and a securely retained spring, preserve controls and selector clearance and test only with closed cold containers until retention under braking is confirmed.
