PART №1786

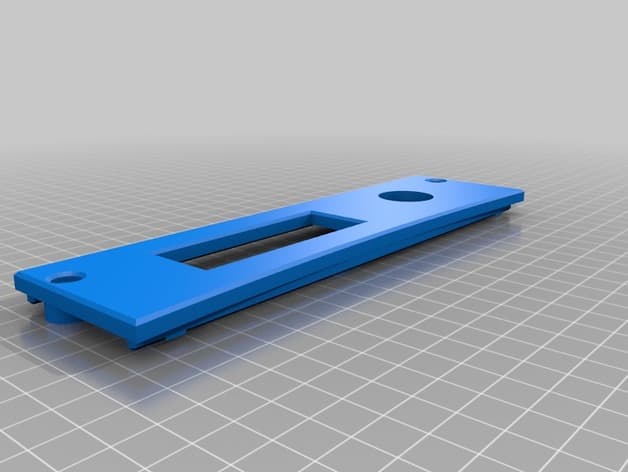

Ashtray-Replacement Multimedia Panel

ABS · Nylon · PETG1 FILECC-BYConsole & storage

SummaryREF 1786

PART: Ashtray-Replacement Multimedia Panel
OEM: —
FITS: M-Class / GLE W164

Loading 3D viewer...

Ref 17861 STL filePrints without supports

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Files & dimensions

MAN-1786

[01]ML320caratula.stlML320caratula.stl.STL
[02]Bounding box194.000 × 54.000 × 10.500 mm
[03]Volume45,365.558 mm³

Field notes

BY JAVIER ASENSI (JAVIEROSKY)

Centre-console panel that replaces the ashtray box and cigarette lighter to mount a small aftermarket Bluetooth/MP3/SD/USB module. The creator states fitment for the 2006–2009 W164 ML280, ML320 and related variants and shows the physical panel installed. The file contains no electronics: use cabin-heat-resistant material, secure the module, independently fuse and insulate any wiring, and confirm selector and control clearance.

View original source ↗
