Ashtray-Replacement Storage Set

ABS · Nylon · PETGMULTI-PART5 FILESPublic DomainConsole & storage

SummaryREF 1598

PART: Ashtray-Replacement Storage Set
OEM: —
FITS: W123 Series W123 / S123 / C123

Loading 3D viewer...

Ref 15985 STL filesPrints without supports

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Files & dimensions

MAN-1598

[01]W123Ashtray.stlW123Ashtray.stl.STL
[02]W123AshtrayExtendedPlate.stlW123AshtrayExtendedPlate.stl.STL
[03]W123AshtrayExtendedPlateBlank.stlW123AshtrayExtendedPlateBlank.stl.STL
[04]W123AshtrayExtendedPlateLedge.stlW123AshtrayExtendedPlateLedge.stl.STL
[05]W123AshtrayShallowPlate.stlW123AshtrayShallowPlate.stl.STL
[06]Bounding box210.482 × 189.000 × 88.500 mm
[07]Volume191,084.512 mm³

Field notes

BY GARRETT JOHNSON

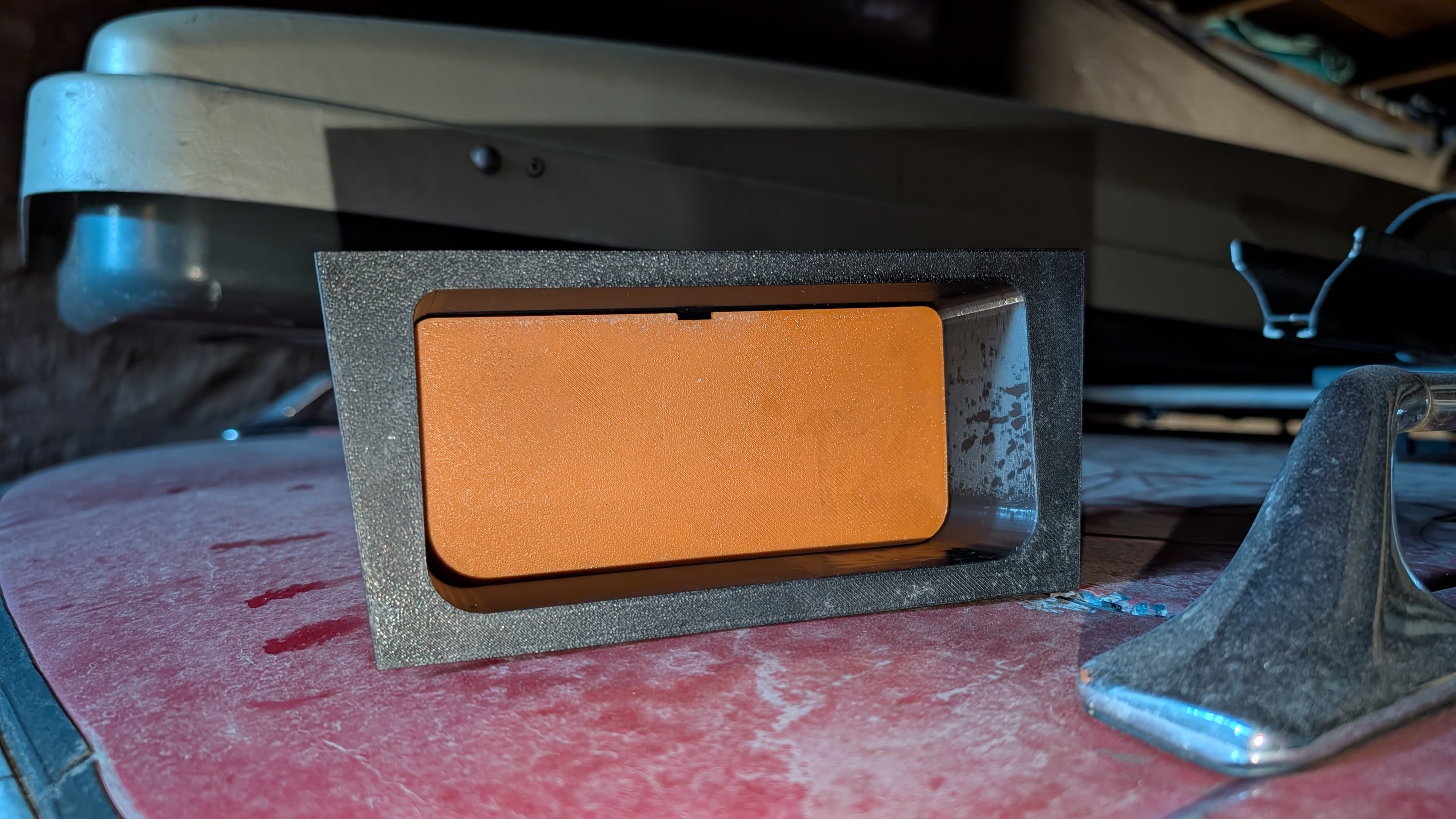

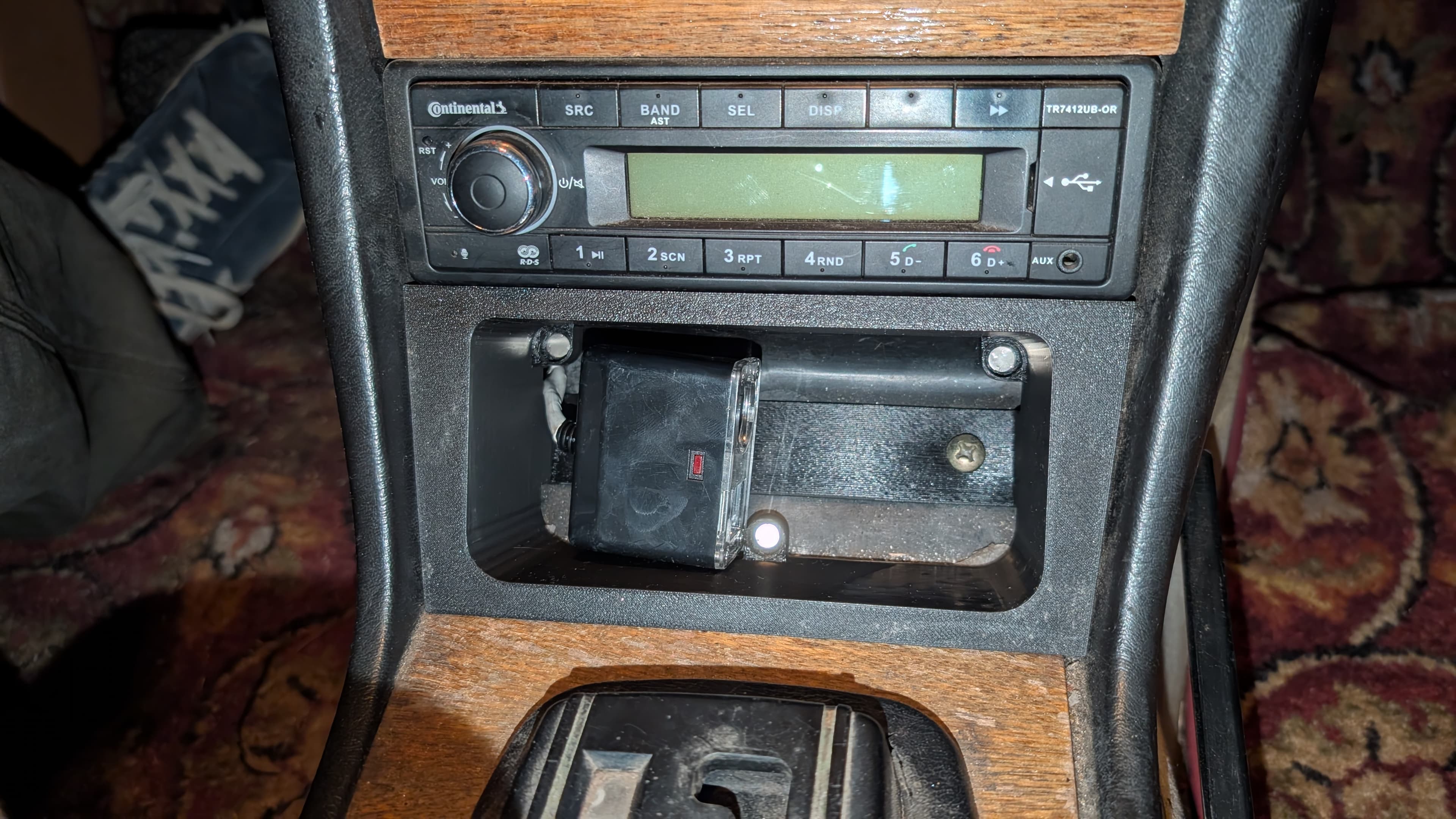

Multi-part replacement for the centre-console ashtray: a storage body plus shallow, flush, blank and outlet-ready plate options. The creator shows the body installed and notes unused space beneath the extended plate for a separately wired 12-volt or USB outlet. Use heat-resistant material, retain safe selector clearance, secure the assembly, and fuse and insulate any electrical addition independently; the files contain no electrical hardware.
