PART №1665
Ashtray-Slot Phone Holder Set
ABS · Nylon · PETGMULTI-PART4 FILESCC-BYConsole & storage
- PART
- Ashtray-Slot Phone Holder Set
- OEM
- —
- FITS
- Sprinter W901–W905
Loading 3D viewer...
Ref 16654 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions

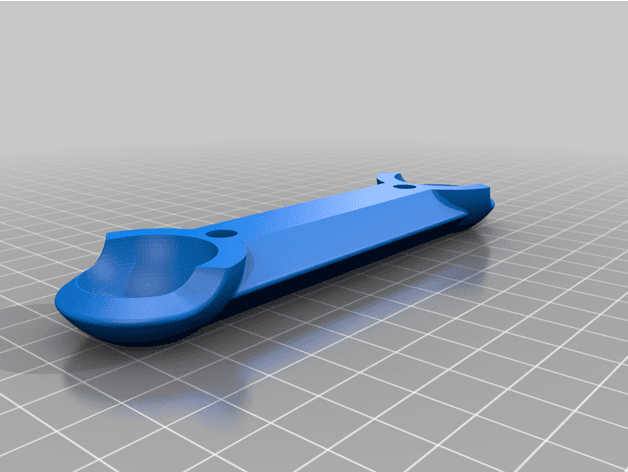

MAN-1665- [01]YakFisher_Ram_Mount_-_Left_Arm.stlYakFisher_Ram_Mount_-_Left_Arm.stl.STL

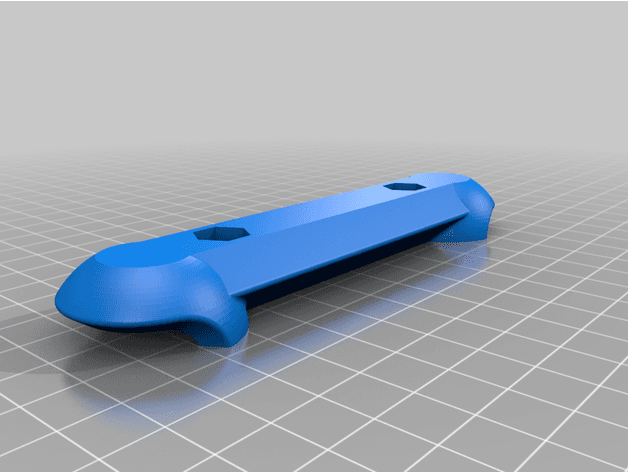

- [02]YakFisher_Ram_Mount_-_Right_Arm.stlYakFisher_Ram_Mount_-_Right_Arm.stl.STL

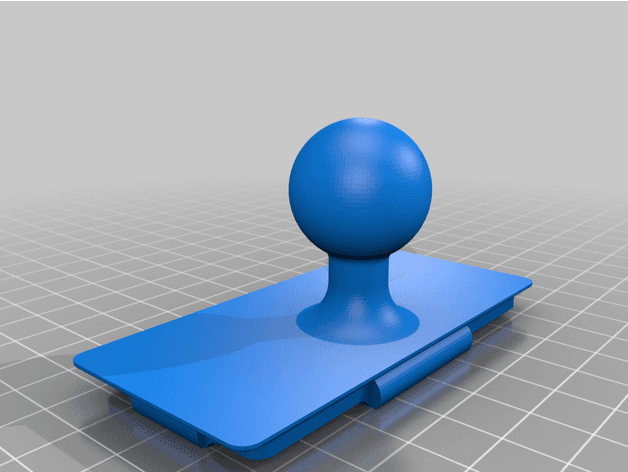

- [03]console_Abdeckung_v5_ball.stlconsole_Abdeckung_v5_ball.stl.STL
- [04]phone_holder.stlphone_holder.stl.STL
- [05]Bounding box130.808 × 117.419 × 73.880 mm
- [06]Volume104,891.626 mm³
Field notes
BY PHILIPP KOLLER (PHILIPP_KOLLER)Four-piece phone-holder system that clips into the dashboard ashtray position, with a phone cradle, left and right support arms and a ball-interface console base. The creator explicitly states 903-series fitment and supplies CAD source views but no installed follow-up photograph. Confirm the ashtray opening, phone dimensions and ball interface, use cabin-heat-resistant material, keep the assembly clear of the selector and controls and verify the phone cannot detach or obstruct the driver under braking.
