PART №1660
Ashtray USB and Coin Insert Set
ABS · Nylon · PETGMULTI-PART7 FILESCC-BY-NCConsole & storage
- PART
- Ashtray USB and Coin Insert Set
- OEM
- —
- FITS
- E-Class W210 / S210
Loading 3D viewer...
Ref 16607 STL filesPrints without supports
Field photographs
8 PLATESPLATE 01 / 08No caption recorded
Files & dimensions
MAN-1660- [01]Ascherersatz_Muenzspender_Deckel.stlAscherersatz_Muenzspender_Deckel.stl.STL
- [02]Ascherersatz_Muenzspender_Kolben.stlAscherersatz_Muenzspender_Kolben.stl.STL
- [03]Ascherersatz_USB_50Cent_Behaelter.stlAscherersatz_USB_50Cent_Behaelter.stl.STL
- [04]Ascherersatz_USB_50Cent_Deckel.stlAscherersatz_USB_50Cent_Deckel.stl.STL
- [05]Ascherersatz_USB_50Cent_Kolben.stlAscherersatz_USB_50Cent_Kolben.stl.STL
- [06]Ascherersatz_USB_Behaelter.stlAscherersatz_USB_Behaelter.stl.STL
- [07]Ascherersatz_USB_Deckel.stlAscherersatz_USB_Deckel.stl.STL
- [08]Bounding box132.980 × 94.847 × 85.650 mm
- [09]Volume60,722.735 mm³
Field notes

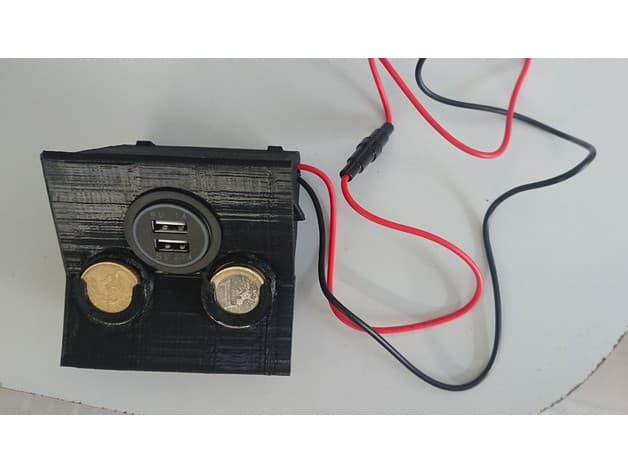

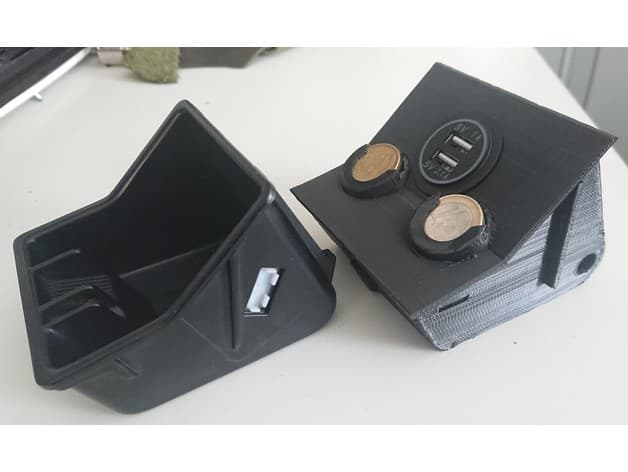

BY INGO JANDA (INGOJ)Modular replacement for the centre-console ashtray insert, with USB-power and optional 50-cent coin-dispenser configurations. The creator states 210-series fitment, documents an installed dimensional correction, and specifies a 9 x 35 mm spring and adhesive for the dispenser components; source photographs show loose physical assemblies and the wired USB insert. Use cabin-heat-resistant insulating material, a fused automotive-grade USB module and strain-relieved wiring, keep conductors and coins isolated, and confirm selector and console clearances.
