PART №1619

Blower-Control Switch Cap

ABS · PETG1 FILECC-BYDashboard & controls

SummaryREF 1619

PART: Blower-Control Switch Cap
OEM: —
FITS: 190 Series W201

Loading 3D viewer...

Ref 16191 STL filePrints without supports

Field photographs

3 PLATES

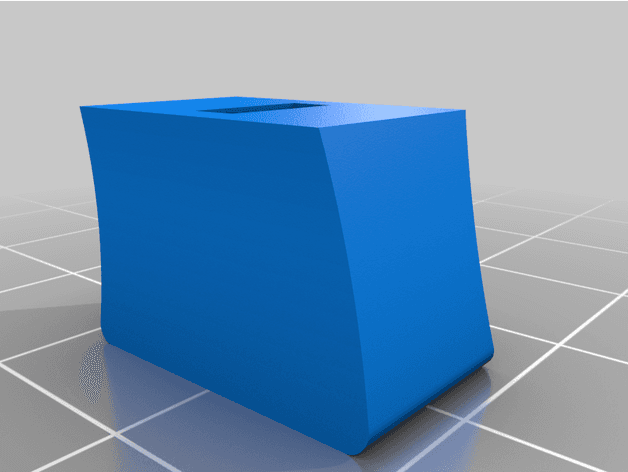

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1619

[01]Mercedes_190e_Blower_Switch_Replacement.stlMercedes_190e_Blower_Switch_Replacement.stl.STL
[02]Bounding box17.270 × 12.000 × 10.200 mm
[03]Volume1,716.599 mm³

Field notes

BY JOHNNICK2001

Replacement cap for a broken cabin-blower control switch, modeled from the original for a 190-series interior. The source provides comparison imagery but no long-term validation details. Compare the switch shaft and detents, use tough cabin-heat-resistant material, and verify every blower position operates and the cap cannot bind against the panel.

View original source ↗
