PART №1569
Bonnet-Latch Pull Handle
ABS · Nylon · PETG1 FILECC-BYDoors, bonnet, boot & bed hardware
- PART
- Bonnet-Latch Pull Handle
- OEM
- —
- FITS
- W123 Series W123 / S123 / C123
Loading 3D viewer...
Ref 15691 STL filePrints without supports
Field photographs
1 PLATE

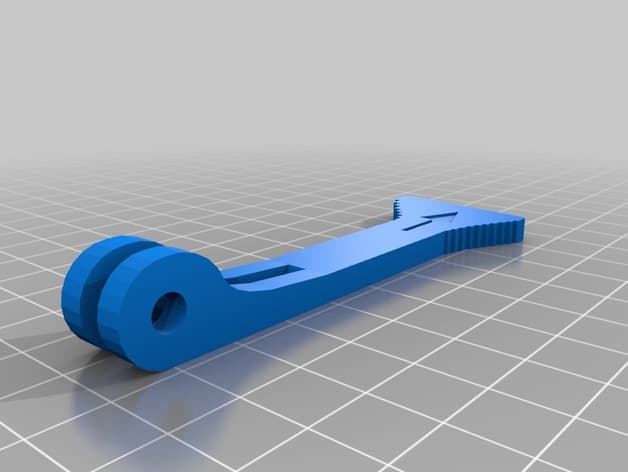

PLATE 01 / 01No caption recorded
Files & dimensions
MAN-1569- [01]MERC_123_hood_latch_puller.stlMERC_123_hood_latch_puller.stl.STL
- [02]Bounding box93.801 × 30.500 × 14.075 mm
- [03]Volume6,442.73 mm³
Field notes
BY KEITH LURIE (MOONANTS)Replacement pull handle for the bonnet release latch. The creator designed it for 123-series cars, printed it successfully, warm-formed the slight original curve and drilled the metal-pin hole after printing. Shape only while warm, retain the original metal pin, verify full latch travel and confirm both primary and safety latches engage before road use. The creator only says it may fit later 124-series cars, so no cross-fitment is assigned.
