PART №1622

Bonnet-Release Handle

ABS · Nylon · PETG1 FILECC-BY-NC-SADoors, bonnet, boot & bed hardware

SummaryREF 1622

PART: Bonnet-Release Handle
OEM: —
FITS: 190 Series W201

Loading 3D viewer...

Ref 16221 STL filePrints without supports

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1622

[01]Motorhaube_öffner.STLMotorhaube_öffner.STL.STL
[02]Bounding box99.250 × 44.286 × 13.499 mm
[03]Volume10,019.282 mm³

Field notes

BY RALF HÖRHAGER

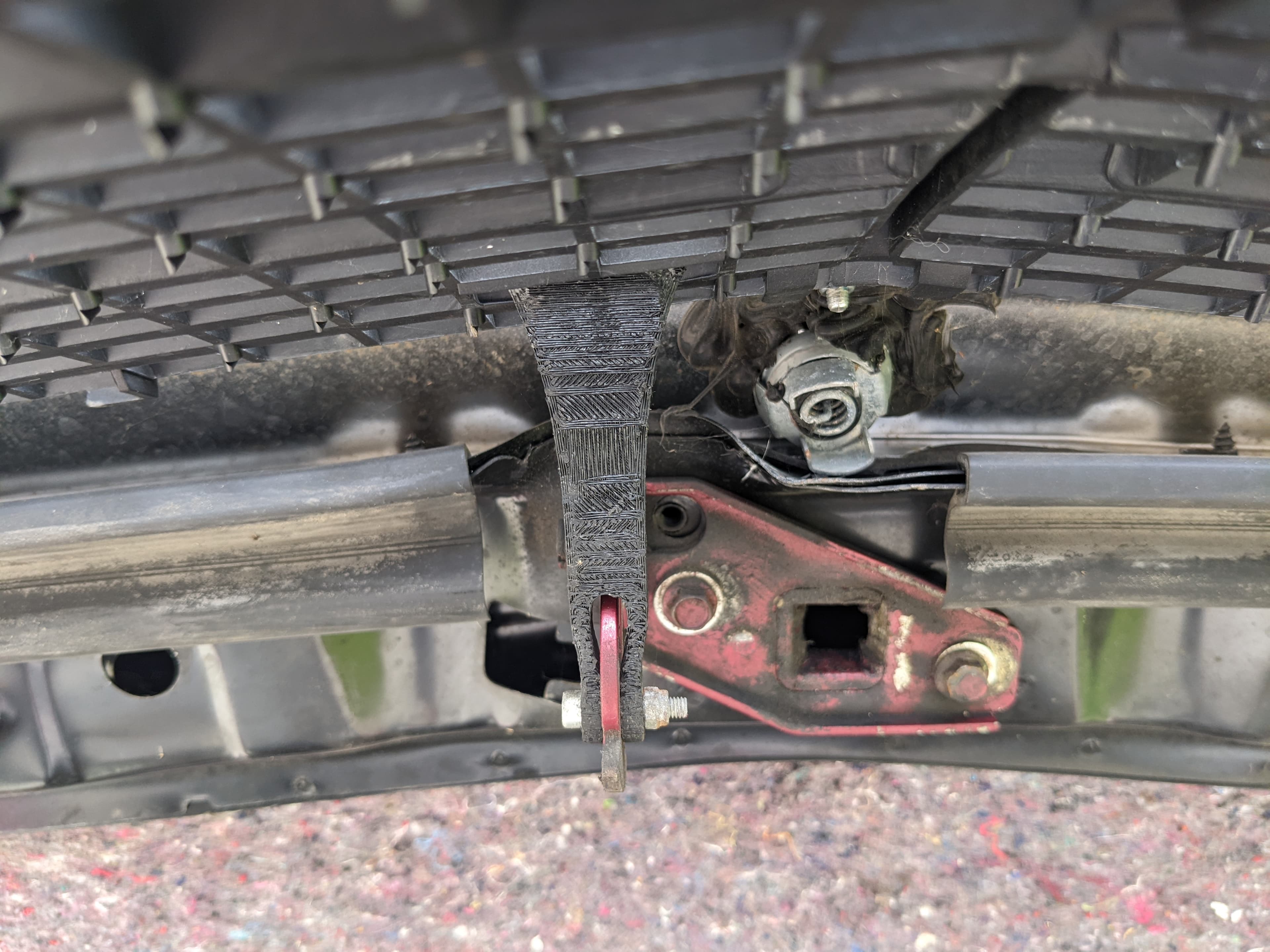

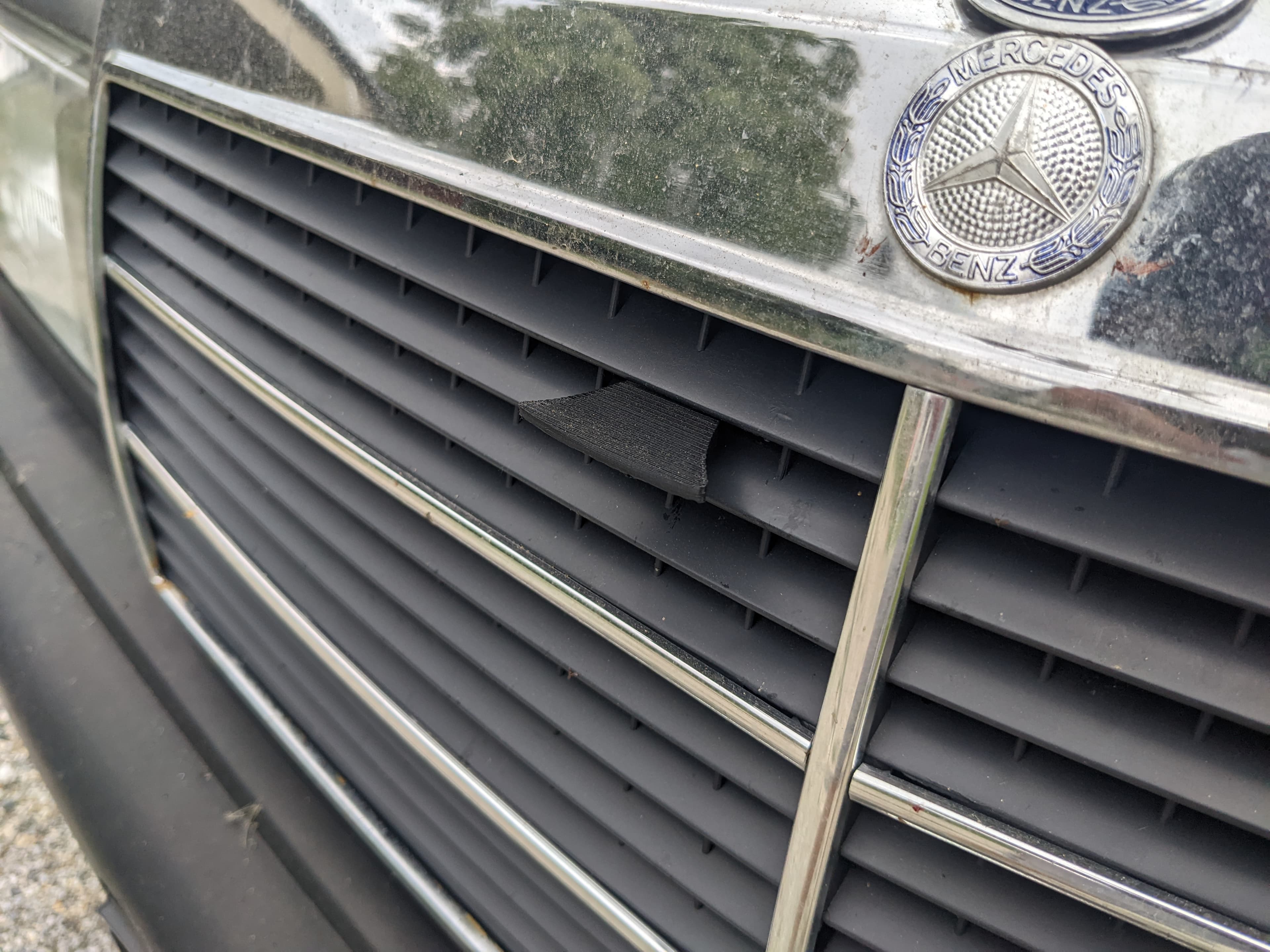

Replacement handle modeled after the original bonnet-release handle. Source photographs document the latch area and installed handle location. Compare the pivot and cable-end geometry, use tough cabin-heat-resistant material, preserve full cable travel, and verify the bonnet opens, closes and latches correctly before driving.
