PART №1567
Boot-Lid Warning-Triangle Holder
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYCabin trim, cargo & roof
- PART
- Boot-Lid Warning-Triangle Holder
- OEM
- —
- FITS
- S-Class W116
Loading 3D viewer...
Ref 15672 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions

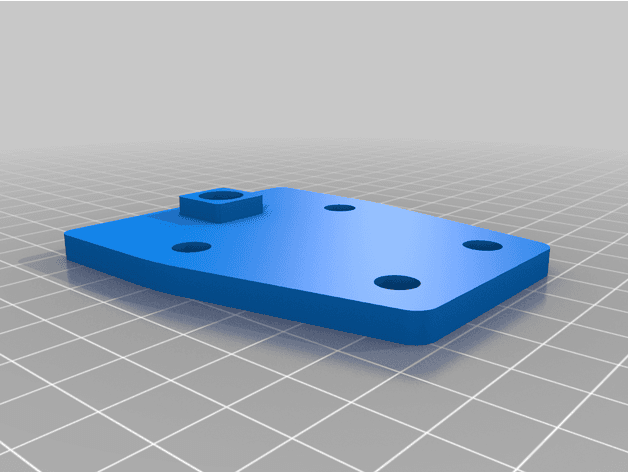

MAN-1567- [01]Trunk_Triangle_Bracket.stlTrunk_Triangle_Bracket.stl.STL

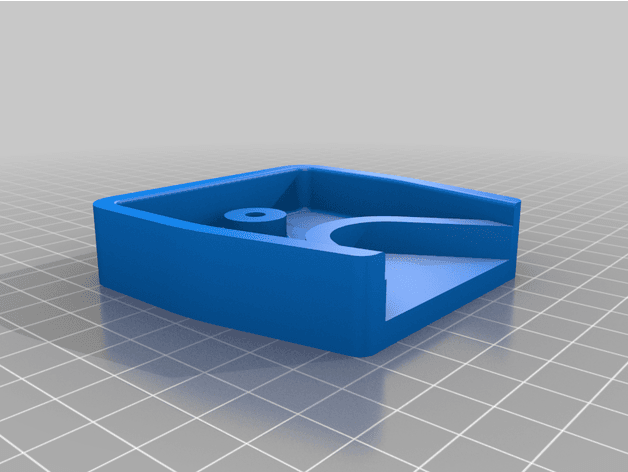

- [02]Trunk_Triangle_Holder.stlTrunk_Triangle_Holder.stl.STL
- [03]Bounding box76.000 × 72.281 × 26.500 mm
- [04]Volume62,273.183 mm³
Field notes

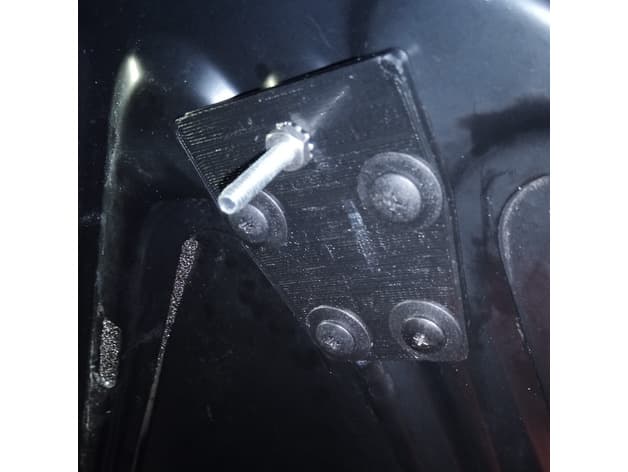

BY SUTEKHTwo-piece holder and mounting bracket for storing a reflective warning triangle on the inside of the boot lid. The creator measured and photographed this custom installation on a 1979 300 SD that was built for the US market and therefore did not originally have the bracket; no other model year, body, market or factory-option fitment is inferred. The demonstrated installation uses four plastic rivets plus a roughly #10-24 by 1.5-inch screw, nut and wingnut. Compare the boot-lid pressing and triangle dimensions before printing, use automotive-interior heat-resistant material, keep hardware clear of wiring and the outer skin, and confirm the triangle is retained without obstructing the lid or latch.
