PART №1611

Cassette-Deck Cubby

ABS1 FILECC-BYConsole & storage
SummaryREF 1611
PART
Cassette-Deck Cubby
OEM
FITS
190 Series W201
PartREV 2026

Loading 3D viewer...

Ref 16111 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1611

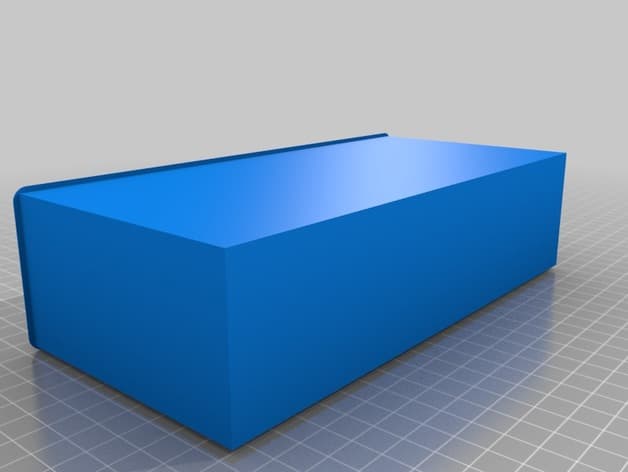

  • [01]autobakje.STL.STL
  • [02]Bounding box215.000 × 101.500 × 58.000 mm
  • [03]Volume228,052.936 mm³
Field notes
BY MTB3D

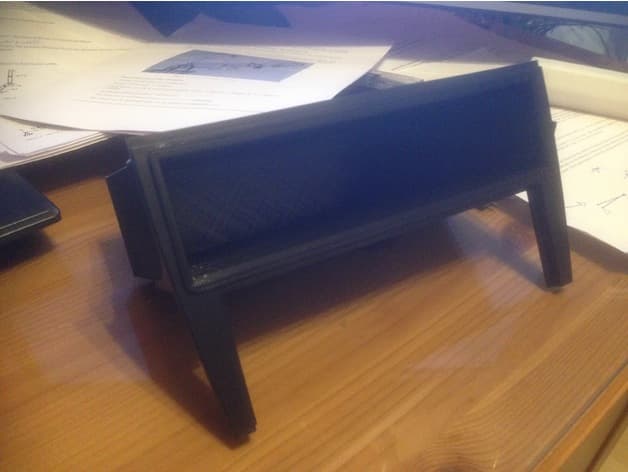

Replacement storage cubby for the obsolete cassette-changer opening below the radio. The source correction identifies 190-series fitment, and photographs show the printed ABS cubby and its installed position. Use cabin-heat-resistant material, check radio and console clearances, retain wiring safely behind the opening, and keep stored objects clear of the selector and controls.
