PART №1747

CD-Changer-Bay Storage Compartment

ABS · PETGMULTI-PART4 FILESCC-BYConsole & storage

SummaryREF 1747

PART: CD-Changer-Bay Storage Compartment
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17474 STL filesPrints without supports

Field photographs

4 PLATES

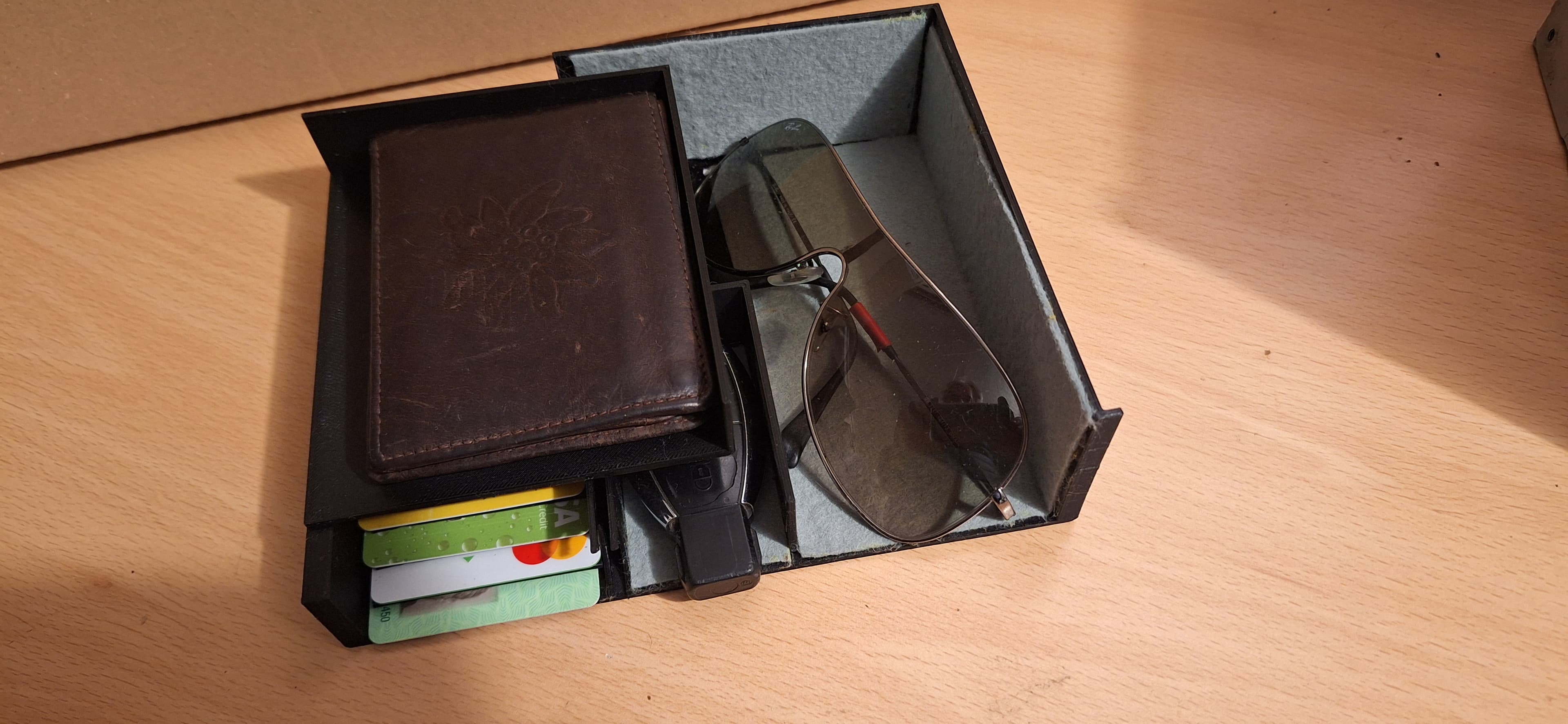

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1747

[01]Geheimfach1 MB W211_v2.stlGeheimfach1 MB W211_v2.stl.STL
[02]Geheimfach2 MB W211_v2.stlGeheimfach2 MB W211_v2.stl.STL
[03]Geheimfach3 MB W211_v2.stlGeheimfach3 MB W211_v2.stl.STL
[04]Geheimfach4 MB W211_v2.stlGeheimfach4 MB W211_v2.stl.STL
[05]Bounding box369.500 × 179.500 × 50.000 mm
[06]Volume196,819.621 mm³

Field notes

BY ANDI MAKE-IT

Four-piece concealed storage compartment installed in place of the factory CD changer and opened with the button below the radio. The source states automatic closing after 30 seconds; wiring and actuator details remain the installer’s responsibility.

View original source ↗
