PART №1782

Center-Console Magnetic Phone Mount

ABS · PETGMULTI-PART3 FILESCC-BYConsole & storage
SummaryREF 1782
PART
Center-Console Magnetic Phone Mount
OEM
FITS
SLK / SLC R171
PartREV 2026

Loading 3D viewer...

Ref 17823 STL filesPrints without supports
Field photographs
9 PLATES
Plate 1 of 9
PLATE 01 / 09No caption recorded
Files & dimensions
MAN-1782

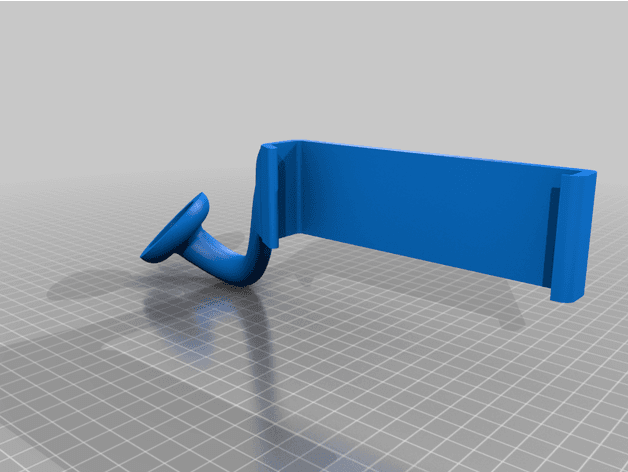

  • [01]R171_Phone_Holder.stl.STL

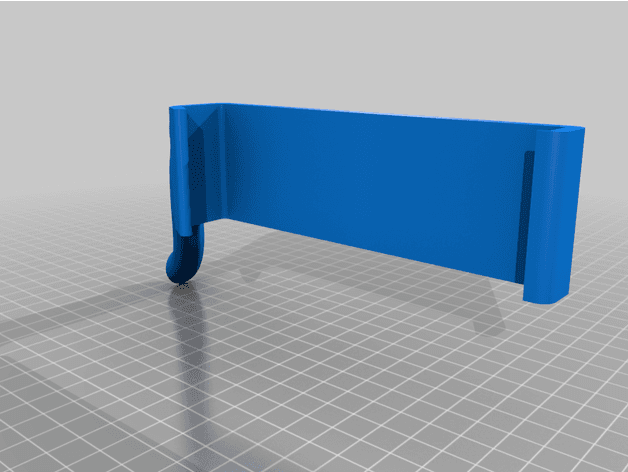

  • [02]R171_Phone_Holder_Base.stl.STL

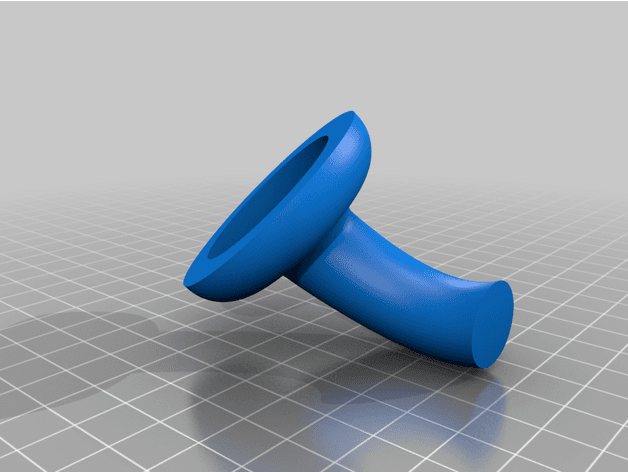

  • [03]R171_Phone_Holder_Top.stl.STL
  • [04]Bounding box508.295 × 87.722 × 65.067 mm
  • [05]Volume142,424.182 mm³
Field notes
BY ANDRES CORRAL (ACORRAL_EPYC)

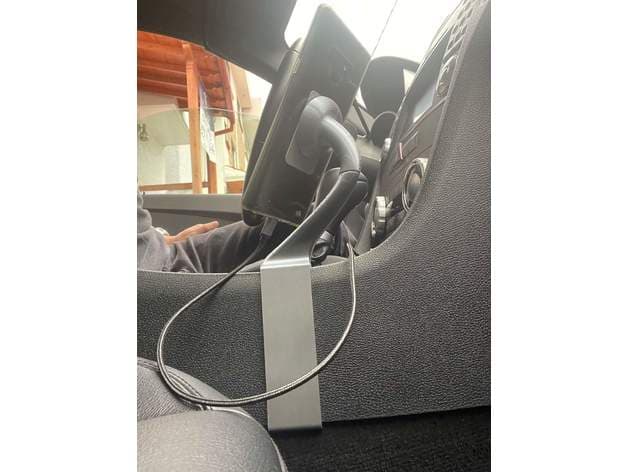

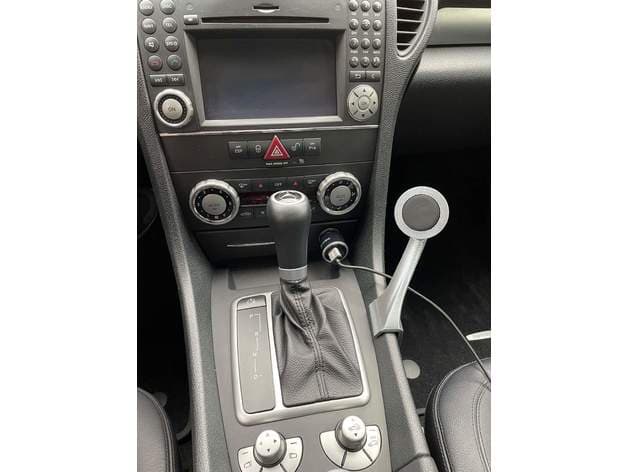

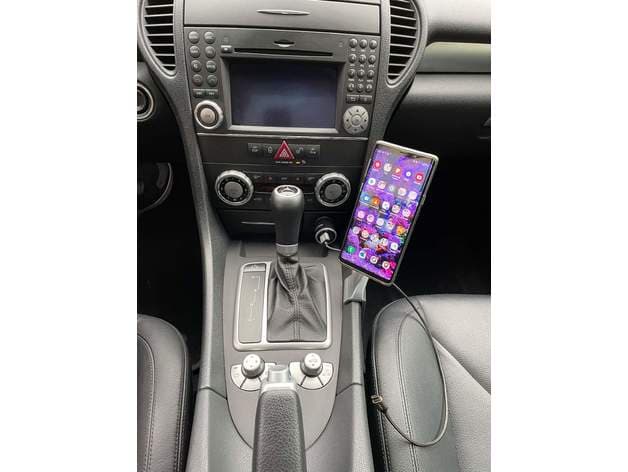

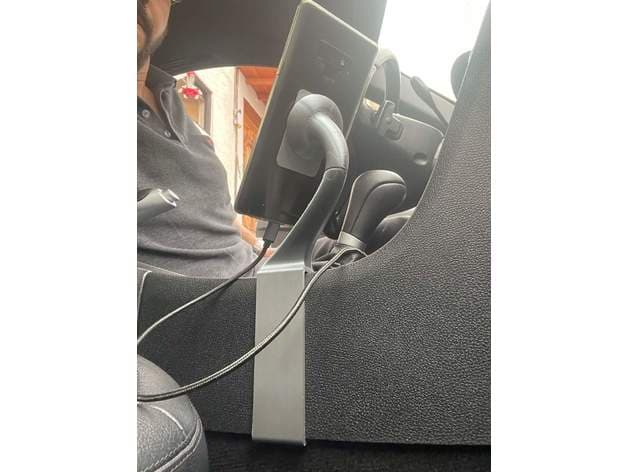

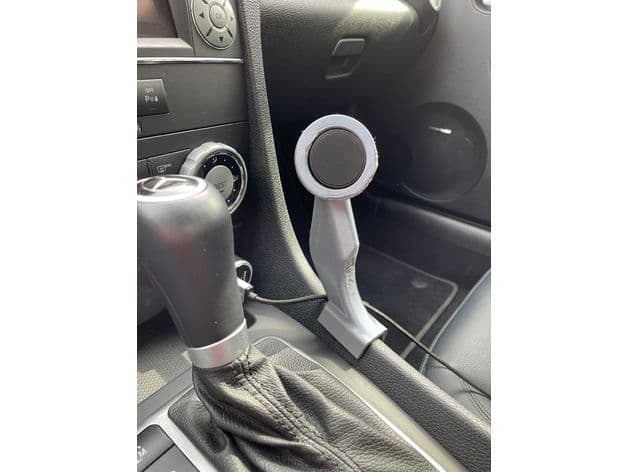

Three-file magnetic phone-mount body designed specifically to clip into the R171 center console without glue, drilling, or permanent vehicle modification. The source includes a one-piece model and a split base/top alternative; add a generic magnetic phone pad to the upper surface with adhesive. Creator photographs show the printed mount installed beside the selector in left-hand-drive vehicles. Use only the one-piece file or the two split files as a complete alternative, print in a cabin-temperature-capable material, confirm the mount cannot contact the selector or controls, route charging cables clear of moving controls, and remove it if it loosens or obstructs operation.
