PART №1859
Center Console Organizer
PETGMULTI-PART3 FILESCC-BY-NCConsole & storage
- PART
- Center Console Organizer
- OEM
- —
- FITS
- A-Class W177
Loading 3D viewer...
Ref 18593 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1859- [01]Effectieve_Organiser_Hook_Versie_FINAL.stlEffectieve_Organiser_Hook_Versie_FINAL.stl.STL
- [02]NEW_Organiser_W177_Lid_Base.stlNEW_Organiser_W177_Lid_Base.stl.STL
- [03]Organiser_W177_Versie_FINAL.stlOrganiser_W177_Versie_FINAL.stl.STL
- [04]Bounding box109.000 × 100.000 × 44.000 mm
- [05]Volume63,691.226 mm³
Field notes

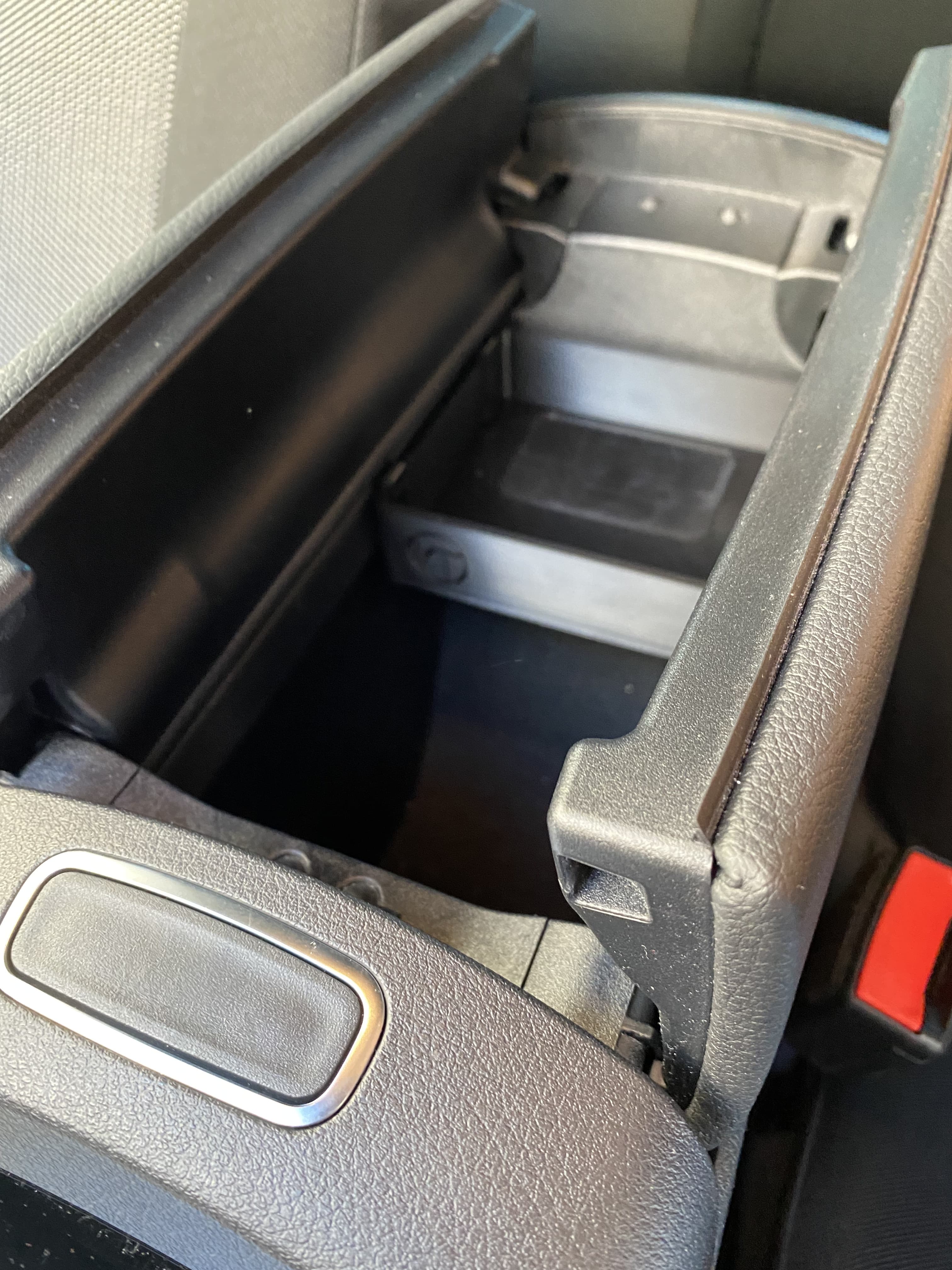

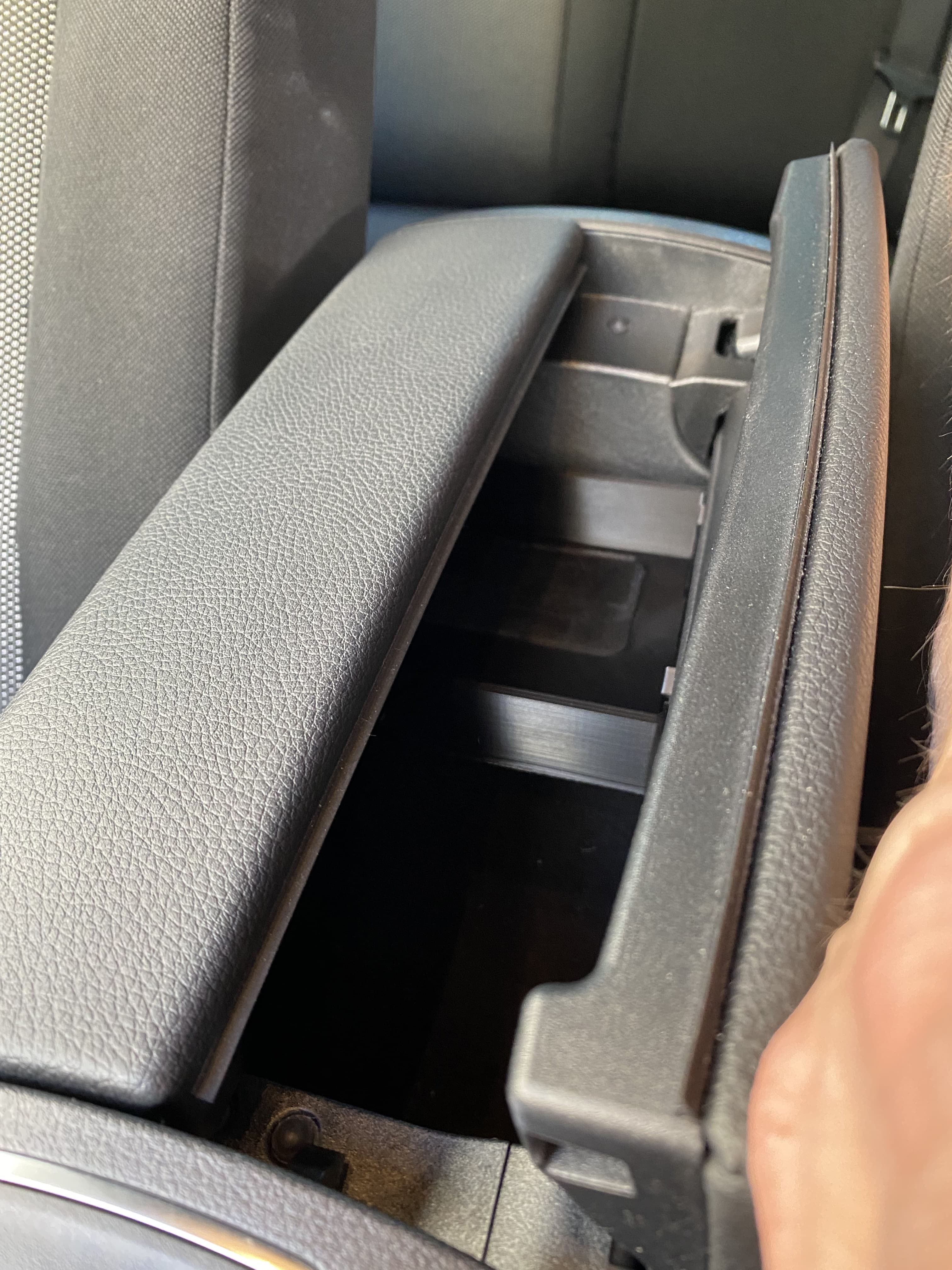

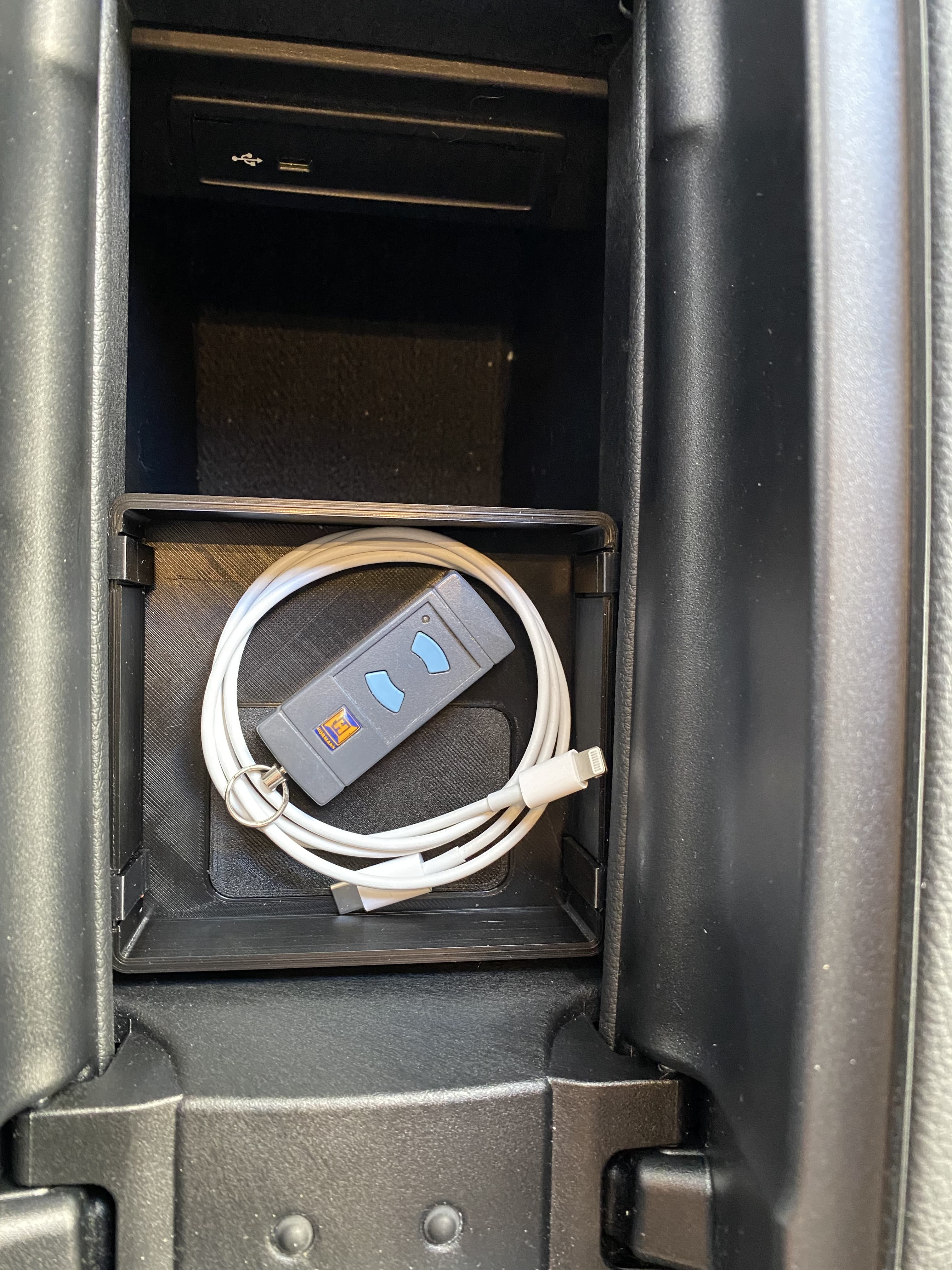

BY KT3DESIGNThree-piece organizer and lid system for the center-console storage compartment. The preserved author package names the main organizer and lid geometry for W177, and four author photographs show the parts installed and in use. No screws or bolts are required; the creator states that the hooks lock into place with light force. Use a cabin-heat-resistant material, test the hook engagement gradually, and verify that the lid and armrest open and close freely without pinching stored items or wiring.
