PART №1730

Center-Console Phone Holder Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYDashboard & controls

SummaryREF 1730

PART: Center-Console Phone Holder Set
OEM: —
FITS: CLK C209 / A209

Loading 3D viewer...

Ref 17302 STL filesPrints without supports

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1730

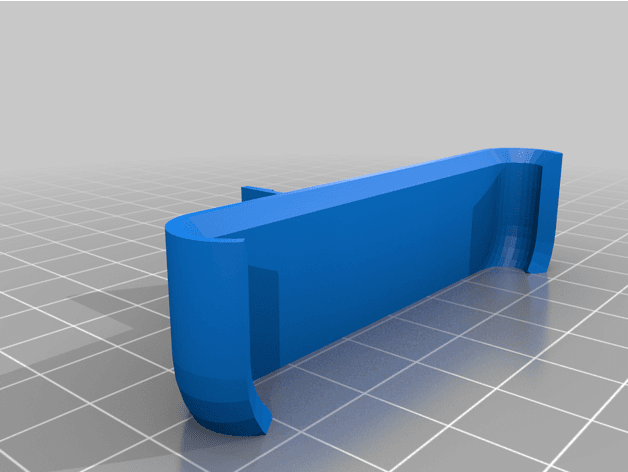

[01]phone_holder.stlphone_holder.stl.STL

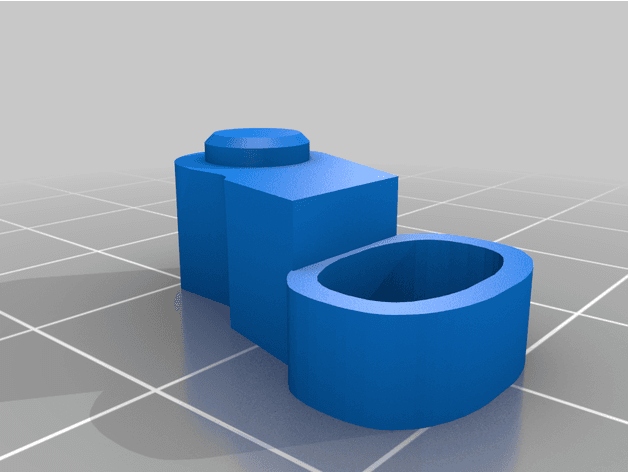

[02]cable_bracket.stlcable_bracket.stl.STL
[03]Bounding box95.351 × 35.272 × 19.000 mm
[04]Volume7,995.764 mm³

Field notes

BY RAFAŁ BIAŁEK (RIODORO1)

Two-piece phone holder and charging-cable bracket for the CLK 209 series, source-tagged by the creator for W209. The holder clips between the center-console side wall and the climate-control panel, accepts an iPhone 6, 7 or 8, and locates a Baseus charging cable so the phone charges when inserted. The creator explicitly warns against ordinary PLA because it can melt in a hot cabin. Fitment is not extended beyond C209/A209.
