Merc 3D Parts
PART №1823

Center-Console Remote-Control Rack

ABS · PETGMULTI-PART2 FILESCC-BY-SAConsole & storage
SummaryREF 1823
PART
Center-Console Remote-Control Rack
OEM
FITS
SLK / SLC R172
PartREV 2026

Loading 3D viewer...

Ref 18232 STL filesPrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1823
  • [01]Cendrier_Mercedes_10.stl.STL
  • [02]cendrier_mercedes_6.stl.STL
  • [03]Bounding box161.000 × 117.499 × 52.209 mm
  • [04]Volume88,708.309 mm³
Field notes
BY ALAIN BOURHIS (AZTECH13)

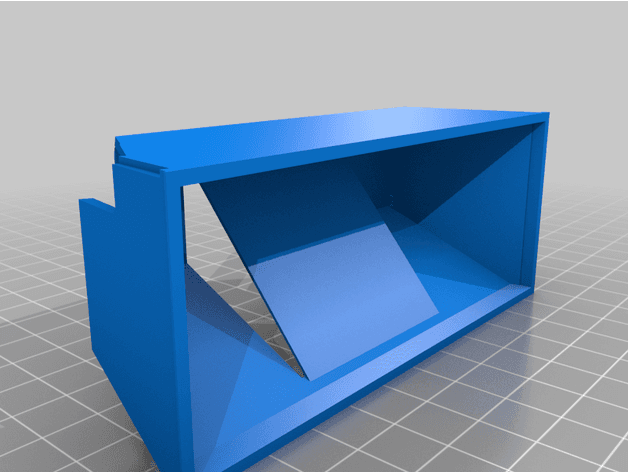

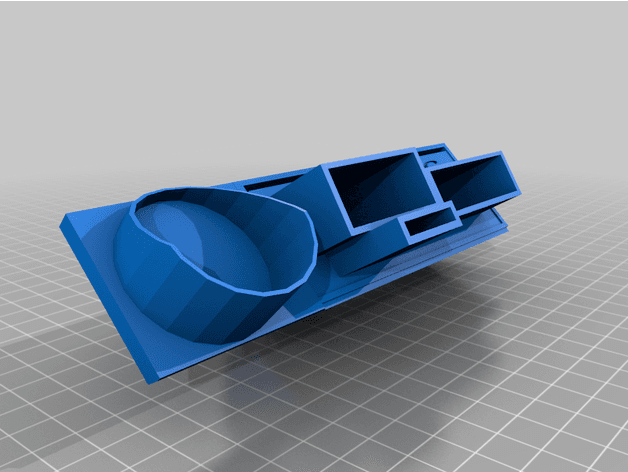

Two-file custom rack system made to fit the center-console ashtray opening in an SLC 180. The author description explicitly identifies the R172 ashtray and provides a fitted remote-control rack plus a starter frame that can be extended for other small controls. Source fitment is limited to the SLC 180 facelift variant; no pre-facelift SLK fitment is claimed. Use a cabin-temperature-capable material, verify the insert is fully seated, keep controls and loose objects clear of the selector and roof controls, and remove the rack if it can move or obstruct driving controls.
