PART №1641

Centre-Console Storage Bin

ABS · Nylon · PETG1 FILEOtherConsole & storage
SummaryREF 1641
PART
Centre-Console Storage Bin
OEM
FITS
SL R129
PartREV 2026

Loading 3D viewer...

Ref 16411 STL filePrints without supports
Field photographs
2 PLATES

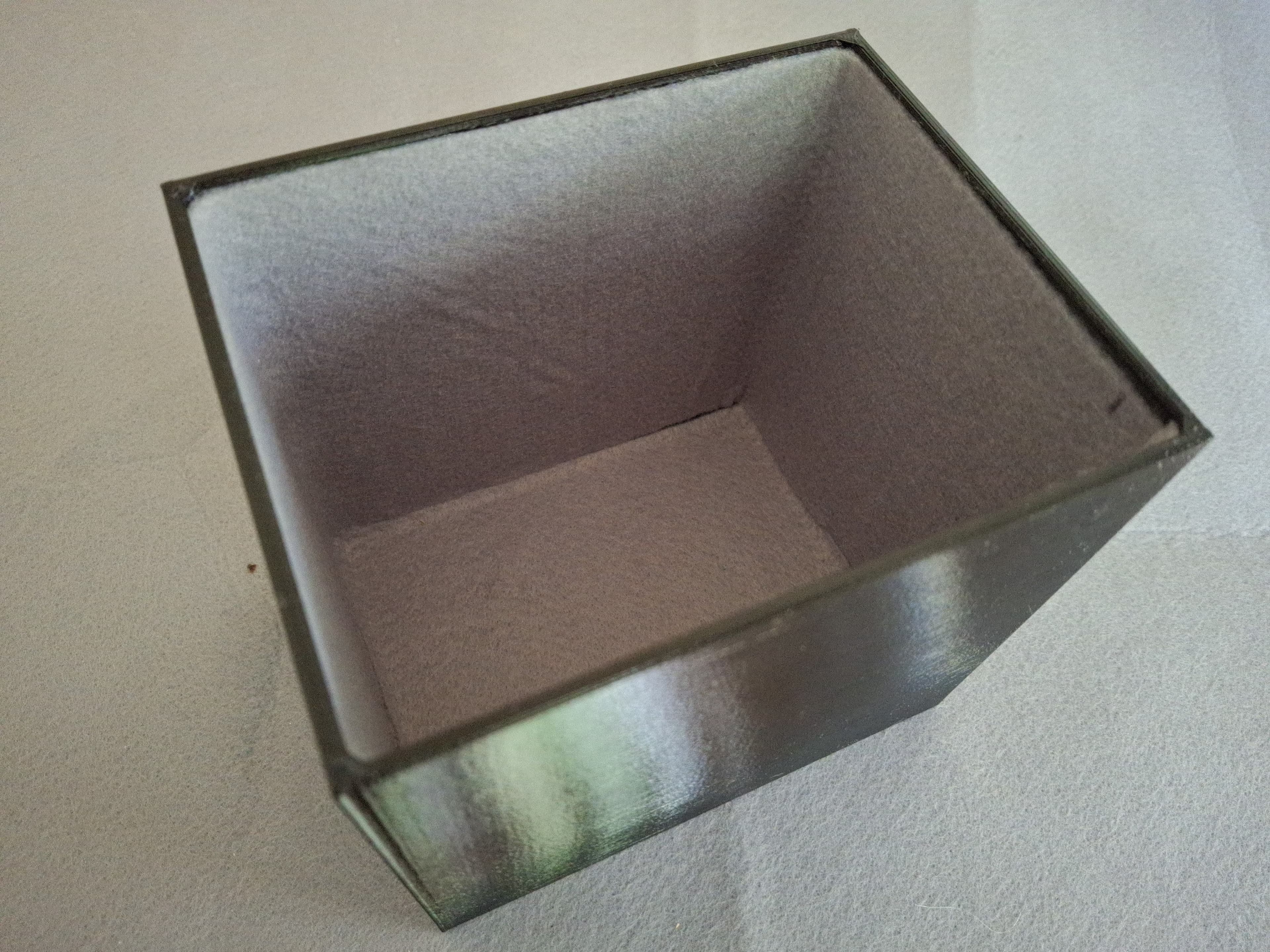

Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1641
  • [01]R129 console box MK3.3mf.STL
  • [02]Bounding box137.000 × 127.400 × 109.000 mm
  • [03]Volume122,892.289 mm³
Field notes
BY PRUSA-USER

Storage bin replacing the obsolete cassette or CD box in the centre console. The source shows the physical bin loose and installed, recommends 0.20 mm layers and 15% infill and suggests a felt lining. The preserved 3MF loads successfully but is non-watertight in an independent mesh audit, so inspect and repair the sliced geometry before printing. The author distributes it under GNU GPL v3; the API represents that licence as Other. Use cabin-heat-resistant material, check console and selector clearances, secure any retained wiring below the opening and ensure stored objects cannot obstruct vehicle controls.
