PART №1658
Climate-Control Adjustment Handle
ABS · Nylon · PETG2 FILESCC-BY-NC-SADashboard & controls
- PART
- Climate-Control Adjustment Handle
- OEM
- —
- FITS
- E-Class W210 / S210
Loading 3D viewer...
Ref 16582 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1658- [01]For_Editing.STLFor_Editing.STL.STL
- [02]Ru4ka_mercedes.STLRu4ka_mercedes.STL.STL
- [03]Bounding box16.000 × 13.900 × 10.400 mm
- [04]Volume786.428 mm³
Field notes

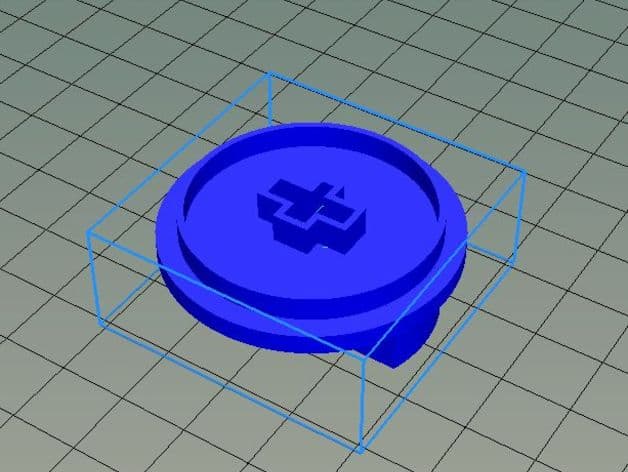

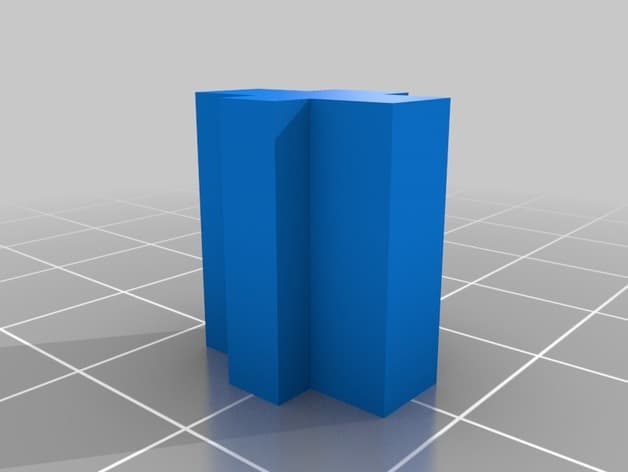

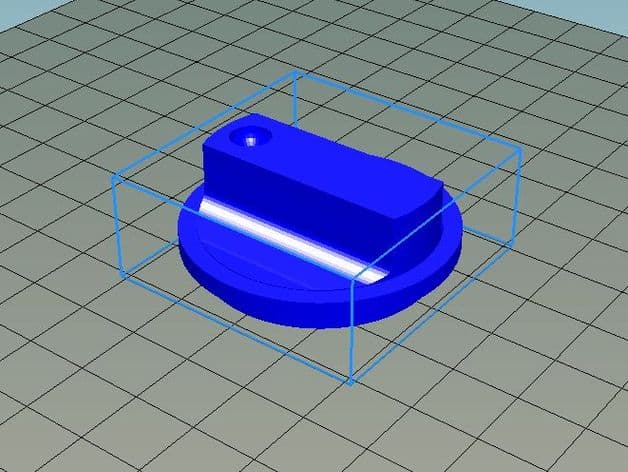

BY FEDOR (DEVCORP)Replacement handle for the climate-control panel. The creator states exact 210-series use and provides four CAD views plus a printable part and an editing variant, but no installed photograph or detailed trim/market split. Compare the original handle, shaft and panel before printing, use cabin-heat-resistant material, keep the control mechanism free of debris, and verify full smooth travel and the correct setting indication after installation.
