PART №1732

Console-Mounted Cup Holder

ABS · PETGMULTI-PART3 FILESCC-BYConsole & storage

SummaryREF 1732

PART: Console-Mounted Cup Holder
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17323 STL filesPrints without supports

Field photographs

3 PLATES

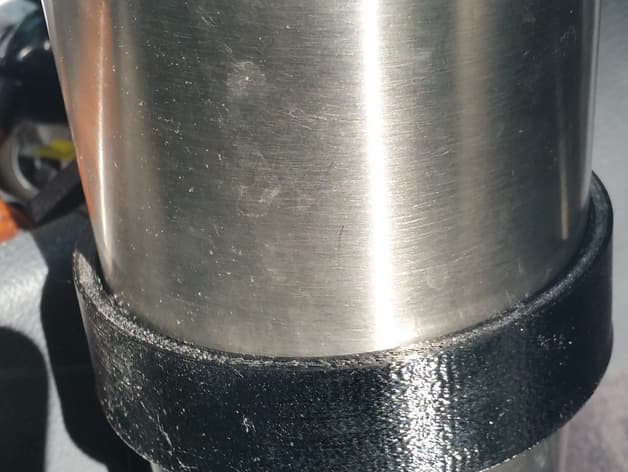

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1732

[01]e320_cup_holder_v2_complete.stle320_cup_holder_v2_complete.stl.STL
[02]e320_cup_holder_v2_printable_parts.stle320_cup_holder_v2_printable_parts.stl.STL
[03]e320_cup_holder_v3_upside_down.stle320_cup_holder_v3_upside_down.stl.STL
[04]Bounding box409.722 × 126.500 × 94.996 mm
[05]Volume211,086.829 mm³

Field notes

BY BART LOUWAGIE (BLOUWAGIE)

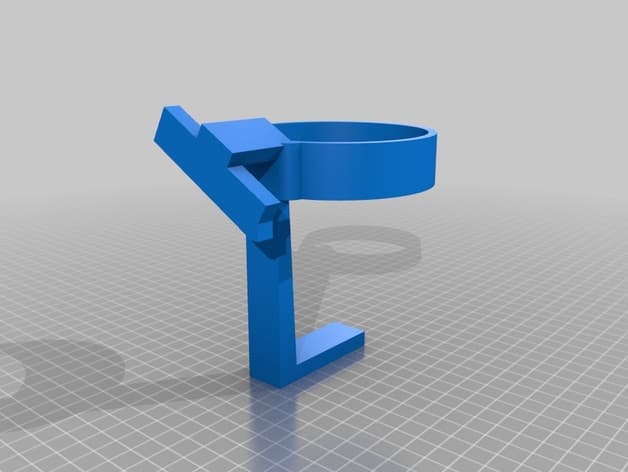

Cup holder that clips to the right side of the center console through the open cigarette-lighter door. The author designed it for 2003–2008 vehicles and recommends printing the version 3 upside-down STL as one piece; the parametric and split alternatives are retained.

View original source ↗
