PART №1830

Cupholder Phone Cradle

ABS · Nylon · PETG1 FILECC-BY-NC-SAConsole & storage
SummaryREF 1830
PART
Cupholder Phone Cradle
OEM
FITS
C-Class W205 / S205 / C205 / A205
PartREV 2026

Loading 3D viewer...

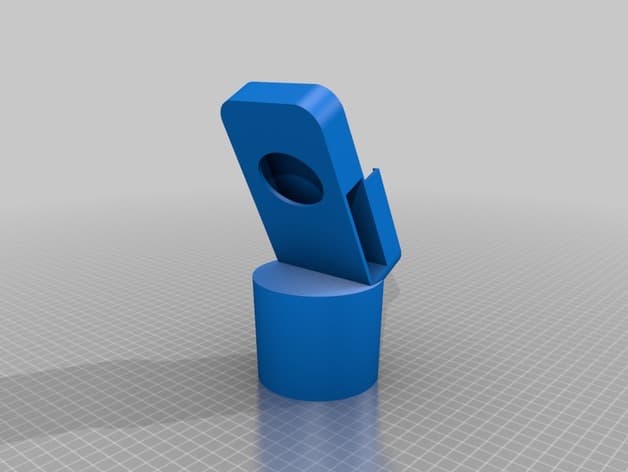

Ref 18301 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1830
  • [01]v3.stl.STL
  • [02]Bounding box195.713 × 94.471 × 86.901 mm
  • [03]Volume342,987.879 mm³
Field notes
BY DON HER (DHERUER)

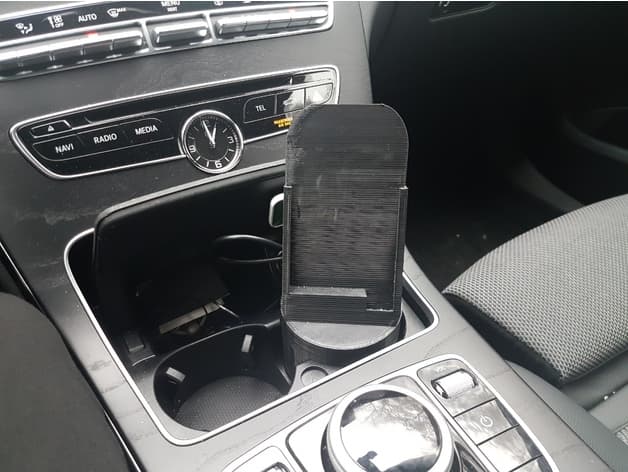

Cupholder-mounted cradle made for a Sony Xperia XZ2 in a protective PU case and test-fitted by the creator in a C350e. The vehicle must have the removable factory cupholder option. Confirm the cradle is snug without overstressing the cupholder, keep the phone and cable clear of the selector and controls, and remove it if the print softens, cracks, or permits the phone to move.
