PART №1846
Dashboard Display iPad Pro Holder
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYDashboard & controls
- PART
- Dashboard Display iPad Pro Holder
- OEM
- —
- FITS
- Vito / Viano / V-Class W447
Loading 3D viewer...
Ref 18462 STL filesPrints without supports
Field photographs
6 PLATES
PLATE 01 / 06No caption recorded
Files & dimensions
MAN-1846- [01]Audio_20_Halterung_Display-Aufsatz.stlAudio_20_Halterung_Display-Aufsatz.stl.STL
- [02]Audio_20_Halterung_iPad.stlAudio_20_Halterung_iPad.stl.STL
- [03]Bounding box374.764 × 323.000 × 42.000 mm
- [04]Volume848,626.843 mm³
Field notes

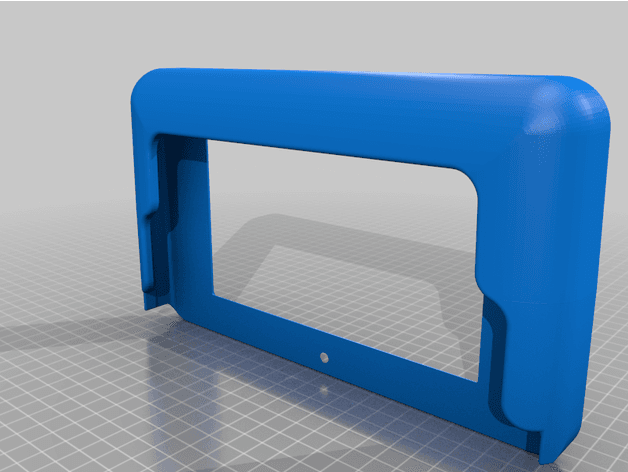

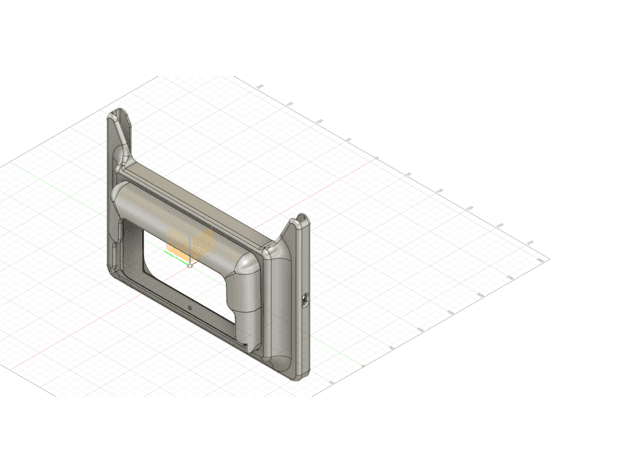

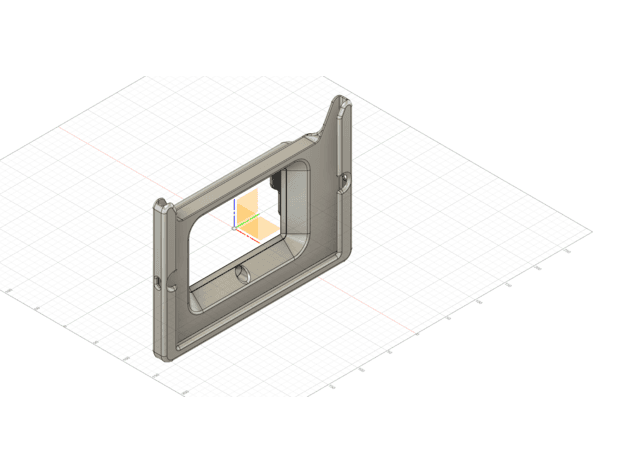

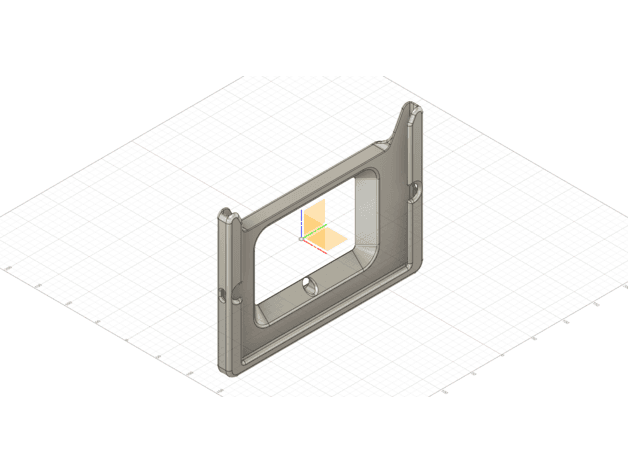

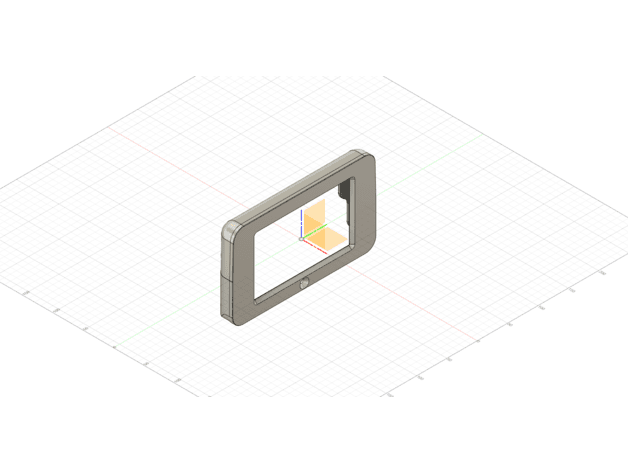

BY PETER WILD (KUENSTLER)Two-piece holder that slides over the central Audio 20 display and carries a 12.9-inch second-generation iPad Pro in its leather case. The creator explicitly designed it for the V-Class/Vito/Marco Polo display in this chassis and instructs bonding the two printed pieces after printing. The source gives no material; PETG, ABS and nylon are listed only as conservative cabin-heat-resistant choices. Match the Audio 20 display and tablet/case dimensions, line the vehicle-display interface with textile tape as shown on the same-author follow-up, and verify the holder cannot obscure the road, controls or airbags or release the tablet under braking.
