PART №1617

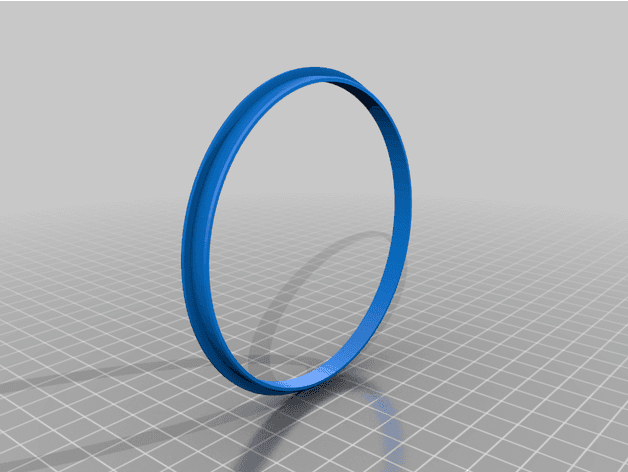

Dashboard Speaker Adapter Ring

ABS · PETG1 FILECC-BY-SADashboard & controls
SummaryREF 1617
PART
Dashboard Speaker Adapter Ring
OEM
FITS
190 Series W201
PartREV 2026

Loading 3D viewer...

Ref 16171 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1617
  • [01]W201_AlpineSXE-1025S_adapter.stl.STL
  • [02]Bounding box99.989 × 99.978 × 7.000 mm
  • [03]Volume4,423.44 mm³
Field notes
BY THXANDBYE

Adapter ring for fitting an Alpine SXE-1025S speaker to the original dashboard mounting points while retaining the original grille. Fitment evidence is specific to that speaker model. Check depth, terminals and grille clearance, use cabin-heat-resistant material, protect the dashboard and wiring, and secure the speaker so it cannot rattle or detach.
