Merc 3D Parts
PART №1854

Dashboard Tablet Mount

ABS · NylonMULTI-PART2 FILESCC-BYDashboard & controls
SummaryREF 1854
PART
Dashboard Tablet Mount
OEM
FITS
GLK / GLC X253 / C253
PartREV 2026

Loading 3D viewer...

Ref 18542 STL filesPrints without supports
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Files & dimensions
MAN-1854
  • [01]IPadHolder.stl.STL
  • [02]iPadMount.stl.STL
  • [03]Bounding box288.500 × 234.548 × 91.436 mm
  • [04]Volume571,222.655 mm³
Field notes
BY THOM BOESSEL (THOMBOESSEL)

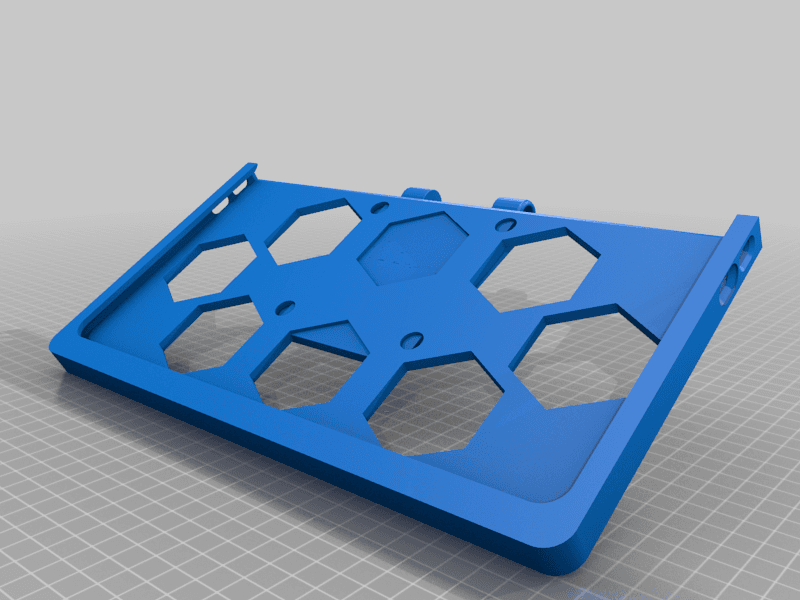

Two-piece mount designed for a 2018 GLC and a 12.9-inch sixth-generation iPad Pro. The vehicle-side piece slips over the factory display and accepts a soft-opening hinge so the tablet can be moved for rear-camera use. Source imagery is CAD/render evidence only. Verify the exact tablet and hinge hardware, protect the factory screen and trim, secure and strain-relieve all wiring, preserve visibility of the road, instruments and reversing image, and remove the mount if it loosens, obstructs controls, or overheats.
