PART №1668

Dashboard-Vent Connecting Rod

ABS · Nylon · PETG1 FILECC-BY-NCDashboard & controls
SummaryREF 1668
PART
Dashboard-Vent Connecting Rod
OEM
FITS
Sprinter W901–W905
PartREV 2026

Loading 3D viewer...

Ref 16681 STL filePrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1668
  • [01]biellette ventilation.stl.STL
  • [02]Bounding box51.300 × 5.000 × 3.000 mm
  • [03]Volume423.948 mm³
Field notes
BY SON'S OF PRINTERY

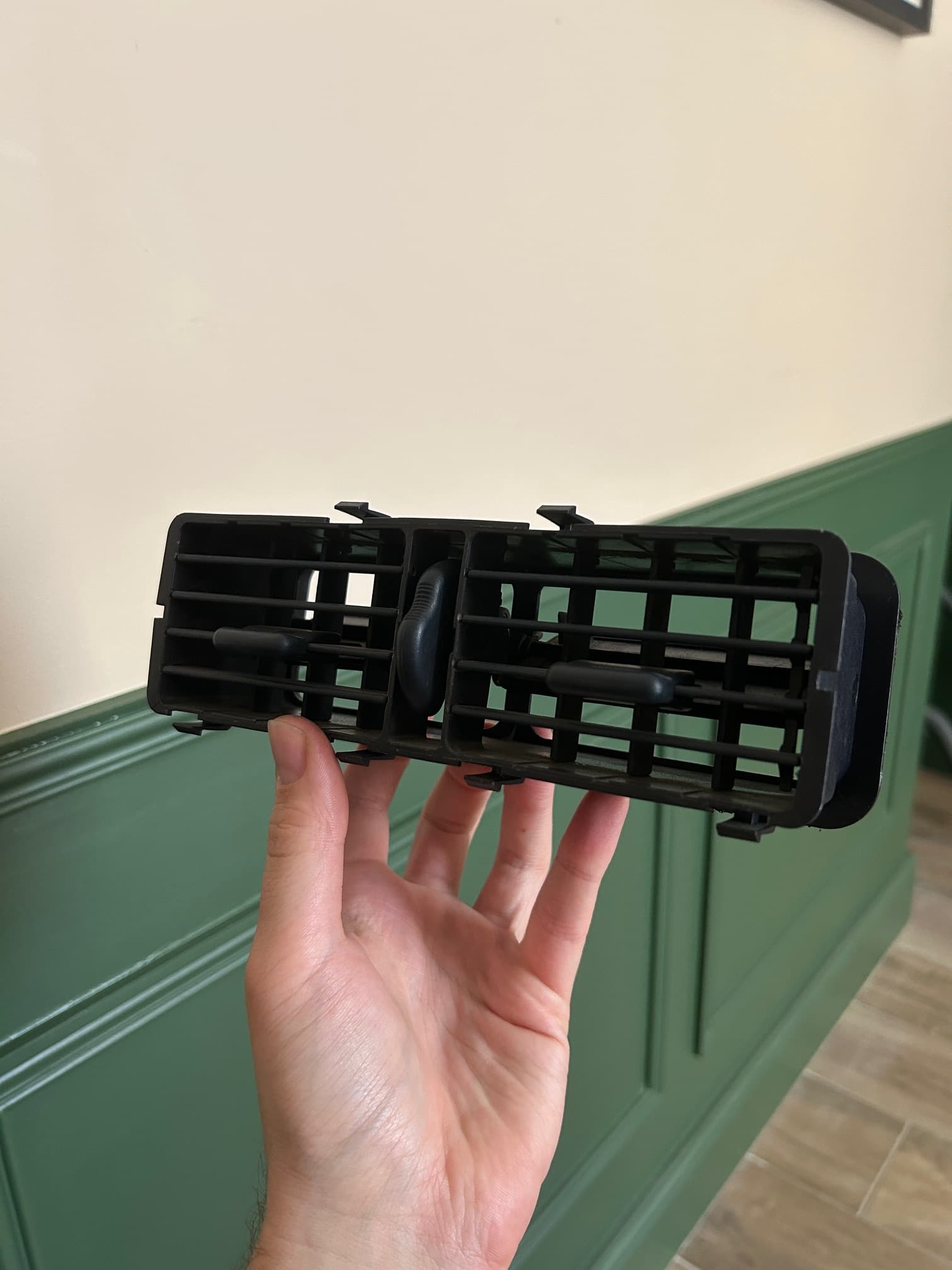

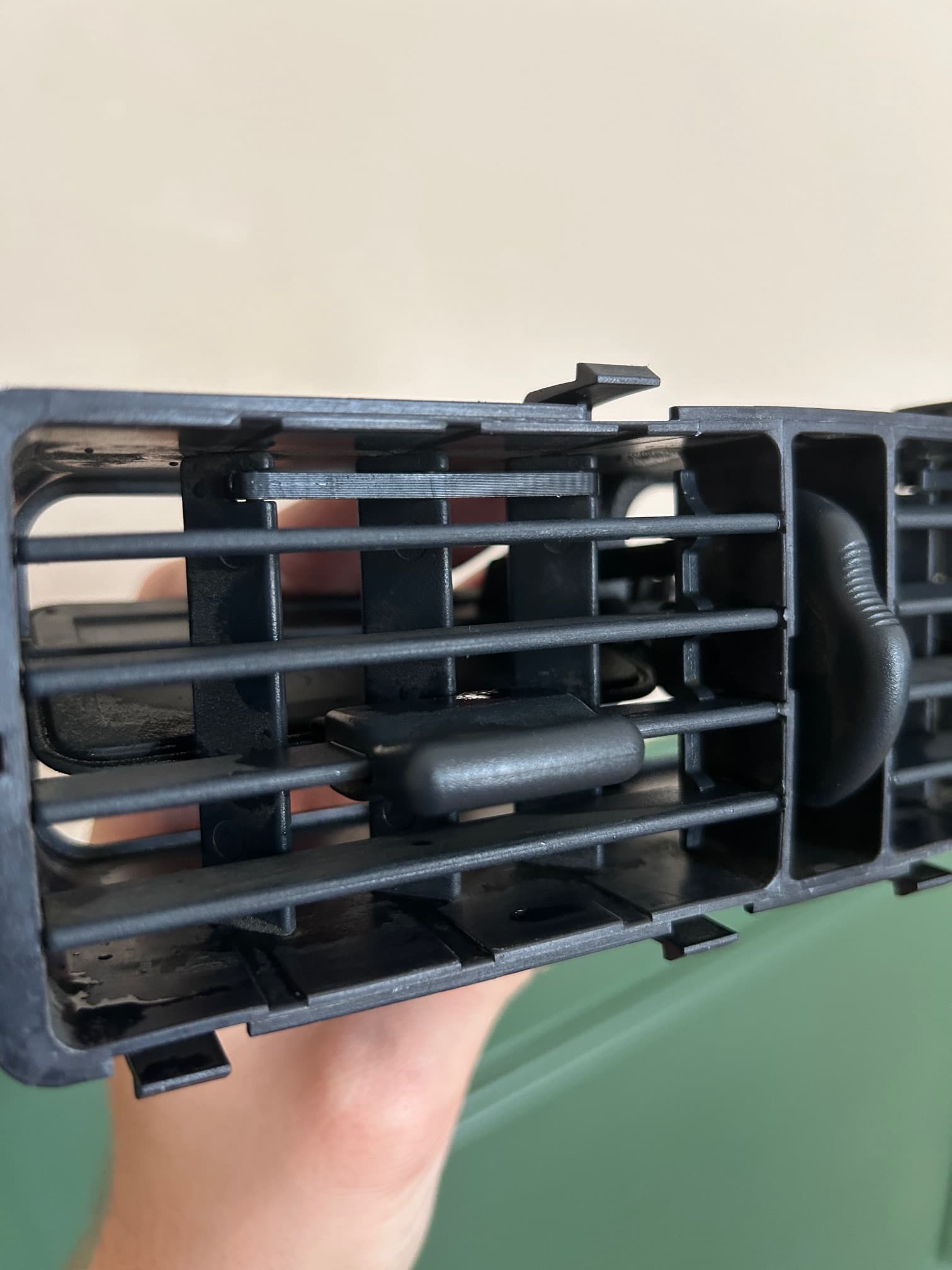

Replacement linkage rod for a dashboard air vent, explicitly identified for 901-series vans. Source photographs show the small printed rods and the matching vent assembly, but no steering-side or vent-position split is stated. Compare the original linkage length, pins and grille geometry, use tough cabin-heat-resistant material and verify every vane moves together through full travel without binding or detaching.
