PART №1826

Display-Side Phone Holder

ABS · PETG4 FILESCC-BYDashboard & controls

SummaryREF 1826

PART: Display-Side Phone Holder
OEM: —
FITS: A-Class W176

Loading 3D viewer...

Ref 18264 STL filesPrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1826

[01]Holder.stlHolder.stl.STL
[02]Iphone11.stlIphone11.stl.STL
[03]Iphone8-plus.stlIphone8-plus.stl.STL
[04]Iphone_SE_2016.stlIphone_SE_2016.stl.STL
[05]Bounding box165.600 × 85.500 × 4.500 mm
[06]Volume12,450.479 mm³

Field notes

BY RO PA (UMBI1987)

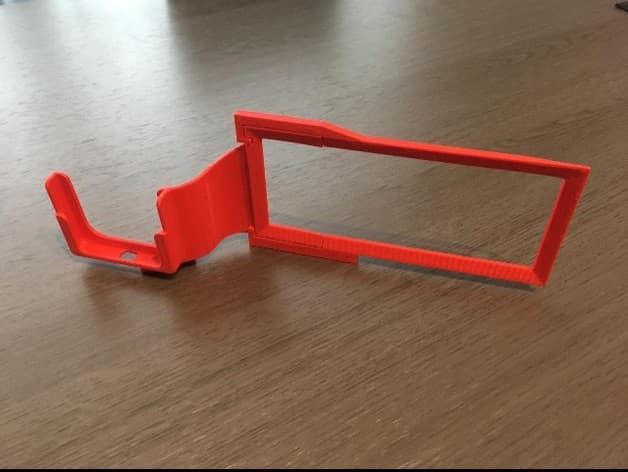

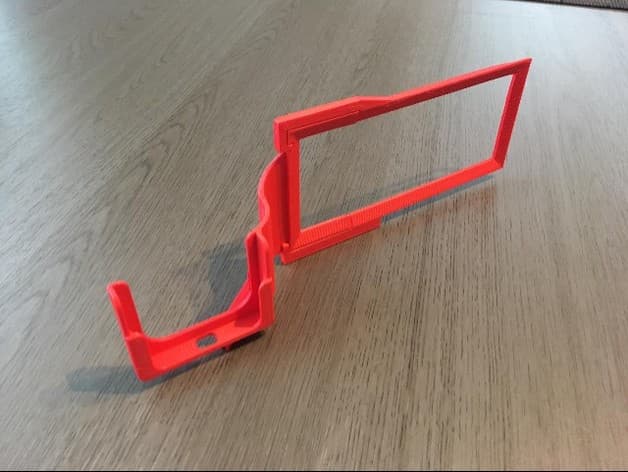

Phone holder designed to fit beside the dashboard display. The author supplies a base holder and phone-specific variants for iPhone 11, iPhone 8 Plus, and the 2016 iPhone SE, and shows a physical holder fitted in the vehicle. The creator used heat-resistant Extrudr GreenTEC rather than ordinary PLA, which can soften in a hot cabin. Choose only the matching variant, confirm secure retention, and keep the device clear of the driver’s view, controls, airbags, and ventilation.
