PART №1626
Door Vapour-Barrier Covering Clip
REPLACES OEMA2017270287
Nylon3 FILESCC-BY-NC-SAInterior doors & windows
- PART
- Door Vapour-Barrier Covering Clip
- OEM
- A2017270287
- FITS
- 190 Series W201, E-Class W124 / S124 / C124 / A124
Loading 3D viewer...
Ref 16263 STL filesPrints without supports
Field photographs
2 PLATES

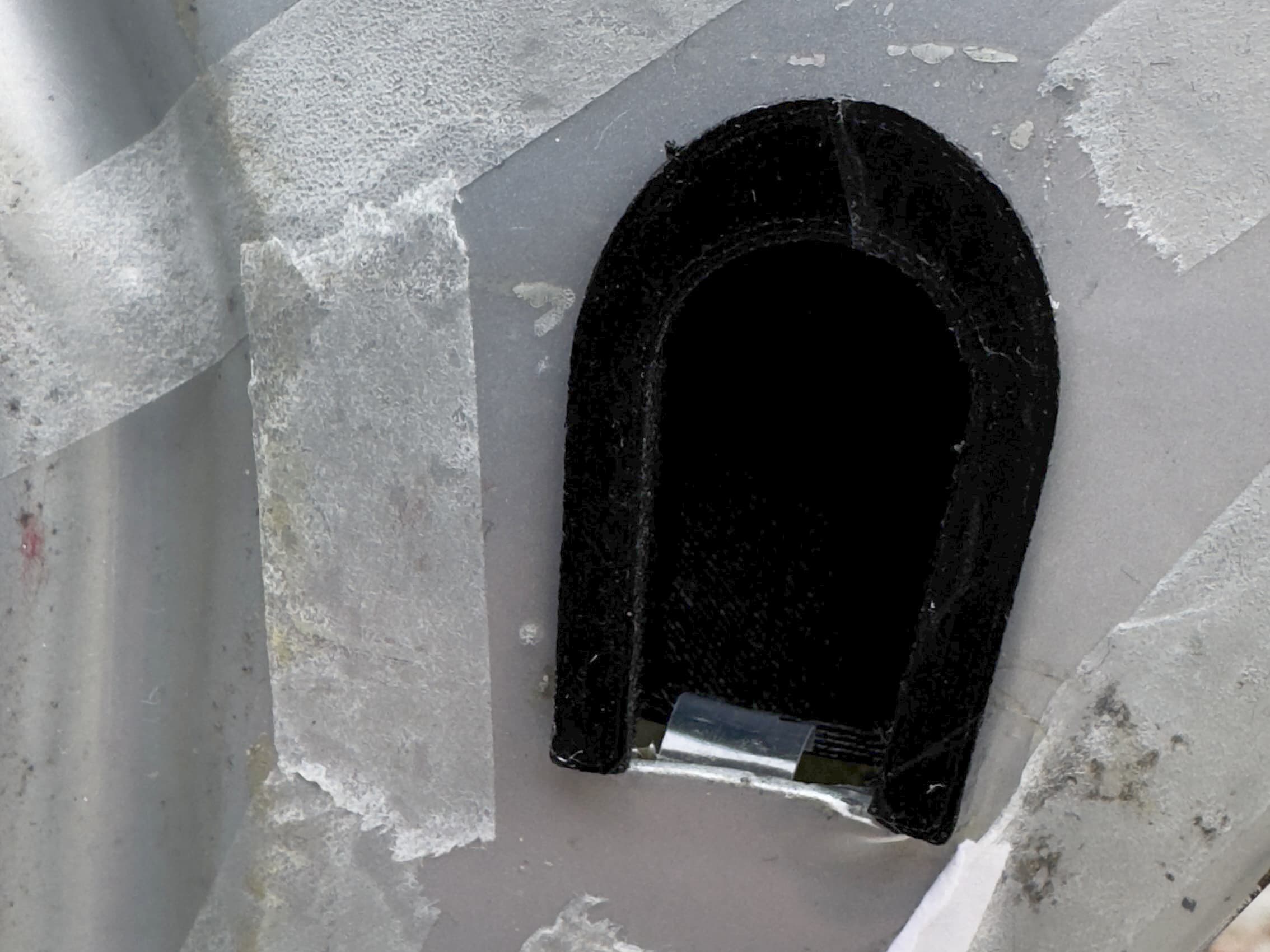

PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1626- [01]mercedes-A2017270287-v1.4-printfile-4x-sequentially_prusa-slicer.3mfmercedes-A2017270287-v1.4-printfile-4x-sequentially_prusa-slicer.3mf.STL
- [02]mercedes-A2017270287-v1.4-with-number.stlmercedes-A2017270287-v1.4-with-number.stl.STL
- [03]mercedes-A2017270287-v1.4-without-number.stepmercedes-A2017270287-v1.4-without-number.step.STL
- [04]Bounding box156.000 × 130.300 × 14.200 mm
- [05]Volume9,219.575 mm³
Field notes
BY VALENTINReplacement covering/clip for retaining the vapour barrier behind the interior door panel. The creator explicitly identifies both 190-series and 124-series applications, supplies numbered and unnumbered geometry, and recommends glass-fibre-reinforced polypropylene with controlled support separation. The controlled material taxonomy does not include that polymer; nylon is listed only as a durable alternative and requires fit validation. EPC applicability maps the exact covering to both chassis families. Match the original profile, avoid tearing the moisture barrier, and confirm the door panel seats without bulging.
