PART №1684

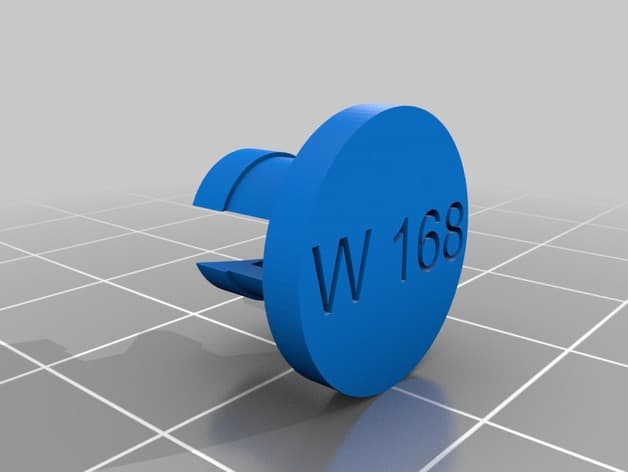

Door-Weatherstrip Retaining Clip

ABS · Nylon · PETG1 FILECC-BYDoors, bonnet, boot & bed hardware

SummaryREF 1684

PART: Door-Weatherstrip Retaining Clip
OEM: —
FITS: A-Class W168

Loading 3D viewer...

Ref 16841 STL filePrints without supports

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Files & dimensions

MAN-1684

[01]W168.stlW168.stl.STL
[02]Bounding box13.498 × 13.497 × 10.000 mm
[03]Volume415.652 mm³

Field notes

BY UDO KURT EWALD UTTERMANN (APFELLINK99)

Replacement retaining clip for the door weatherstrip/seal. The creator designed it after the original clip broke and reports that it performs nearly as well as the original component. Use an automotive-temperature-capable material, compare the printed clip against an intact original before installation, and replace it if the seal is not held securely.

View original source ↗
