PART №1575

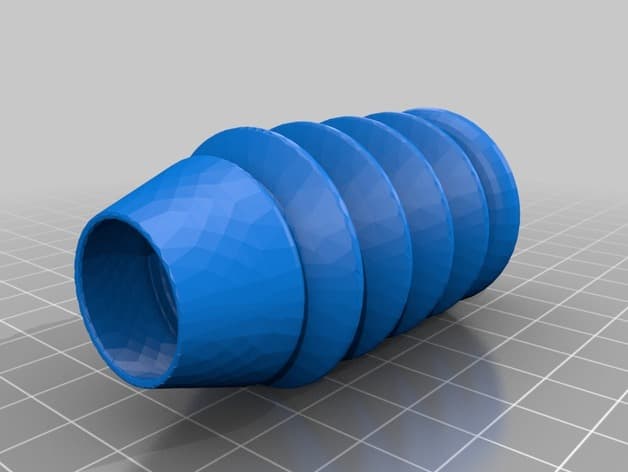

Door-Wiring Protective Boot

TPU1 FILECC-BYInterior doors & windows
SummaryREF 1575
PART
Door-Wiring Protective Boot
OEM
FITS
W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15751 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1575
  • [01]W123_Schutzschlauch_fertig.stl.STL
  • [02]Bounding box74.832 × 34.995 × 34.956 mm
  • [03]Volume9,179.057 mm³
Field notes
BY CHRISTOPH DREWES (CHRISTOPH003)

Flexible protective sleeve for wiring passing into a front door. The creator specifies 123-series driver or passenger doors, flexible filament, and an upward slicer orientation for the sealing-lip end. Route the wiring without tension, seat both ends fully, confirm the door closes without pinching the sleeve, and inspect periodically for abrasion or water ingress.
