PART №1703

Door Wood-Trim Retaining Clip

TPU1 FILECC-BY-SAInterior doors & windows
SummaryREF 1703
PART
Door Wood-Trim Retaining Clip
OEM
FITS
S-Class W220
PartREV 2026

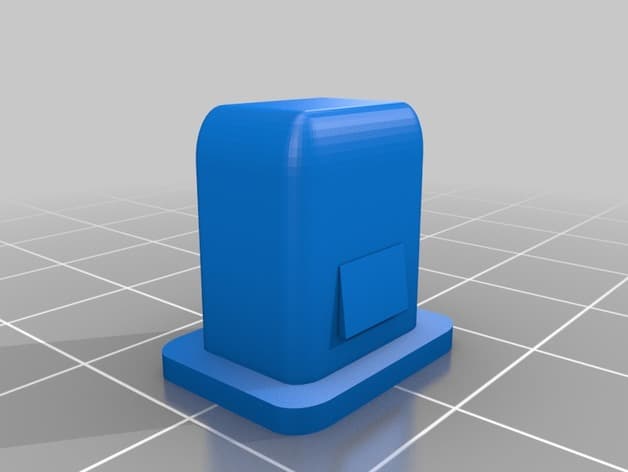

Loading 3D viewer...

Ref 17031 STL filePrints without supports
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1703
  • [01]mercedes_w220_wood_trim_clip.stl.STL
  • [02]Bounding box16.000 × 15.498 × 12.000 mm
  • [03]Volume852.714 mm³
Field notes
BY GABRIEL GINER (GABIGINER)

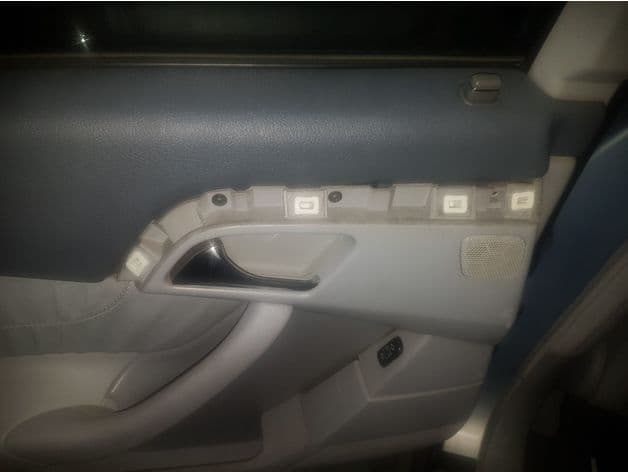

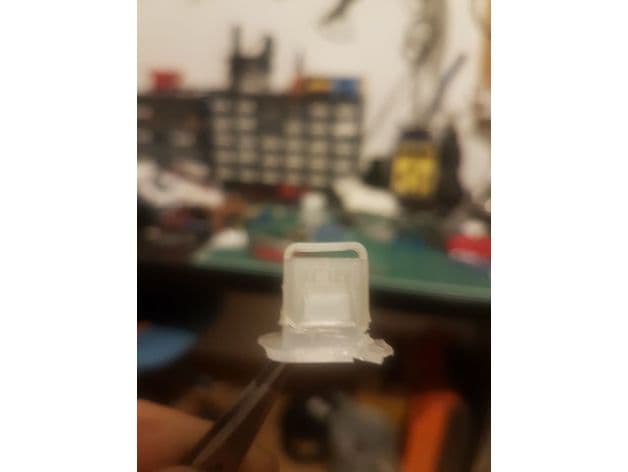

Replacement retaining clip for the interior door wood trim. The creator identifies exact 220-series fitment, recommends flexible FilaFlex material, and the preserved source photographs show the loose printed clip, the wood trim installed and the door with the trim removed. The creator does not provide a molded Mercedes number. EPC evidence lists several position-specific clips and clamps around W220 door and pillar panelling, but does not establish which exact serviced child this geometry reproduces, so no OEM number is assigned. Compare the original clip, door position, trim profile and production/option version, fit without forcing the veneer, and confirm the wood trim is fully retained without rattles or interference.
