PART №1620
Driver-Vent Surround
ABSMULTI-PART3 FILESCC-BYDashboard & controls
- PART
- Driver-Vent Surround
- OEM
- —
- FITS
- 190 Series W201
Loading 3D viewer...
Ref 16203 STL filesPrints without supports
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1620- [01]Vent_Surround.stlVent_Surround.stl.STL
- [02]Vent_Surround_-_Back.stlVent_Surround_-_Back.stl.STL
- [03]Vent_Surround_-_Front.stlVent_Surround_-_Front.stl.STL
- [04]Bounding box173.117 × 120.352 × 93.356 mm
- [05]Volume86,777.999 mm³
Field notes

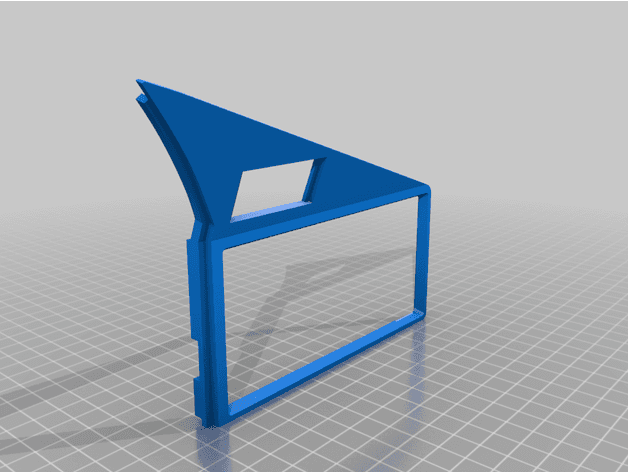

BY K8200USERReplacement driver-side dashboard vent surround, supplied as both a complete model and a two-piece version for easier printing. The creator reports that it fitted but was not fully refined, warns that PLA deformed in summer heat, and says to mirror the part for left-hand-drive use. The complete STL appears about 25.4 times smaller than the split files when interpreted as millimetres, so verify source units and final dimensions in the slicer. Confirm steering side and vent geometry, print in heat-resistant material, and verify free vent-slider movement.
