PART №1557

Early Dash Conversion Set

ABS · Nylon · PETGMULTI-PART4 FILESCC-BYDashboard & controls

SummaryREF 1557

PART: Early Dash Conversion Set
OEM: —
FITS: SL R107

Loading 3D viewer...

Ref 15574 STL filesPrints without supports

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Files & dimensions

MAN-1557

[01]AC_Panel-V2.0.stlAC_Panel-V2.0.stl.STL
[02]Left_Trim.stlLeft_Trim.stl.STL
[03]Right_Trim.stlRight_Trim.stl.STL
[04]power_outlet_holder.stlpower_outlet_holder.stl.STL
[05]Bounding box311.775 × 210.000 × 50.000 mm
[06]Volume115,802.042 mm³

Field notes

BY TRAVIS KEEDY (GULFCOASTPNUT)

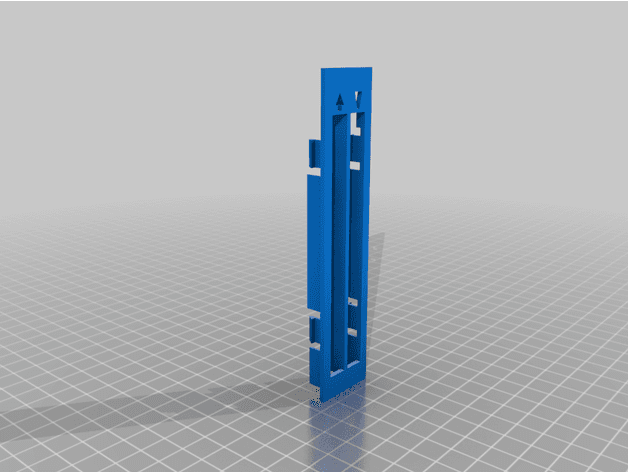

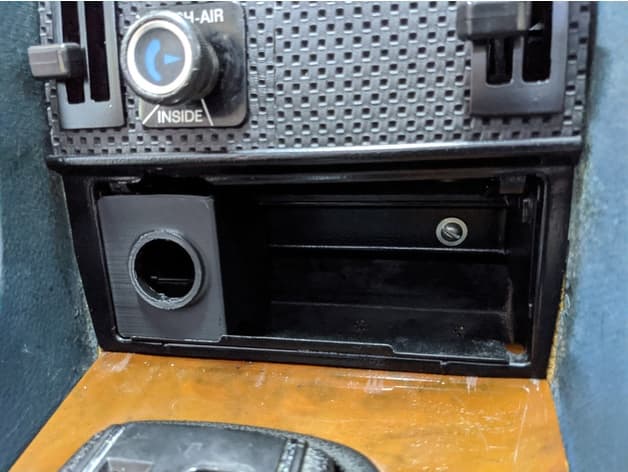

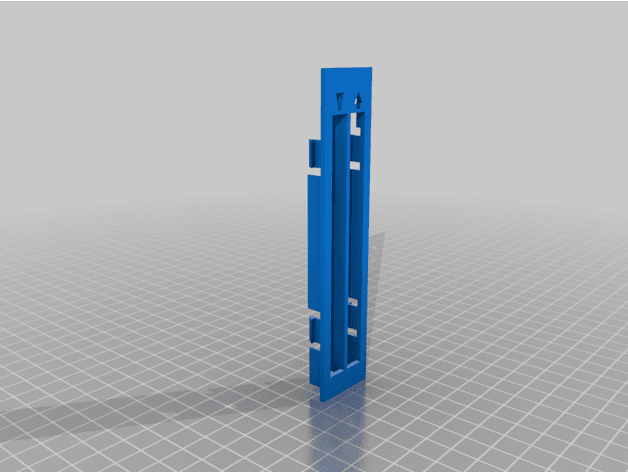

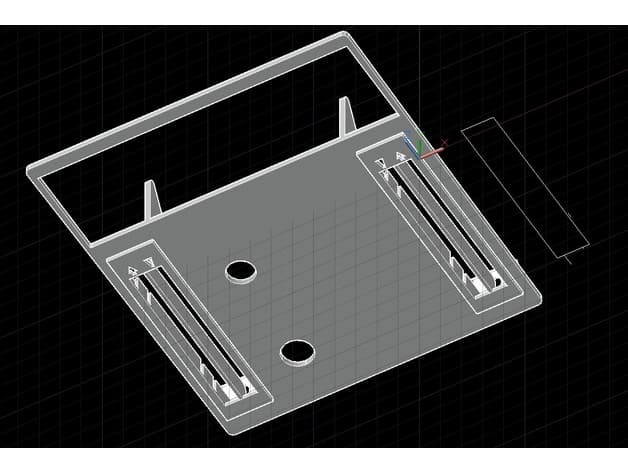

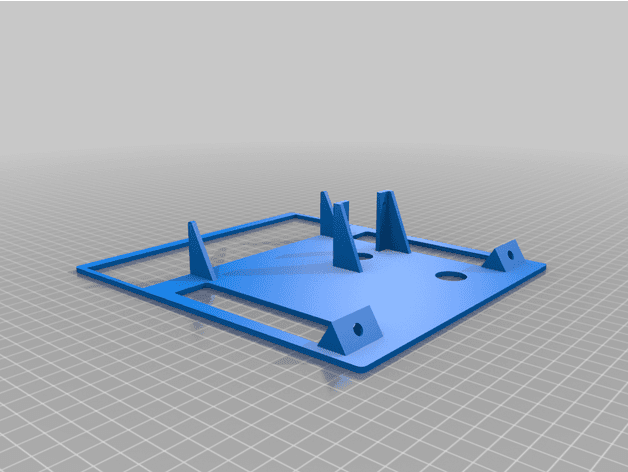

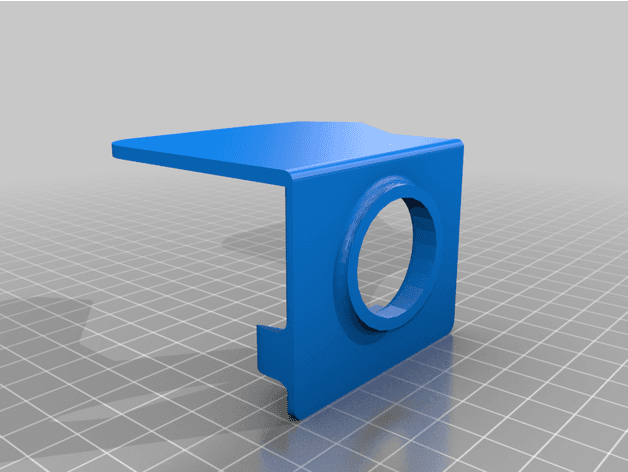

Four-piece conversion set for the early dashboard centre stack: a single-DIN HVAC/radio panel, left and right slider trim, and an ashtray-replacement holder for a USB charger or voltmeter. The creator built and photographed it in an early 450 SL and warns that switch layouts changed over production even though the panel outline may remain similar. Restrict use to the demonstrated early layout, compare every opening and fastener before printing, fuse any added electrical outlet correctly, and retain safe clearance from wiring and HVAC controls.
