PART №1772

Electrical Fuse-Box Latch Clip

REPLACES OEMA6395450073
ABS · Nylon2 FILESCC-BY-NC-SAEngine-bay electrical & sensors
SummaryREF 1772
PART
Electrical Fuse-Box Latch Clip
OEM
A6395450073
FITS
Vito / Viano / V-Class W639
PartREV 2026

Loading 3D viewer...

Ref 17722 STL filesPrints without supports
Field photographs
7 PLATES
Plate 1 of 7
PLATE 01 / 07No caption recorded
Files & dimensions
MAN-1772
  • [01]w639-elektrik-box-clip.3mf.STL
  • [02]w639-elektrik-box-clip.stl.STL
  • [03]Bounding box50.000 × 31.693 × 21.182 mm
  • [04]Volume5,724.539 mm³
Field notes
BY MOWERK

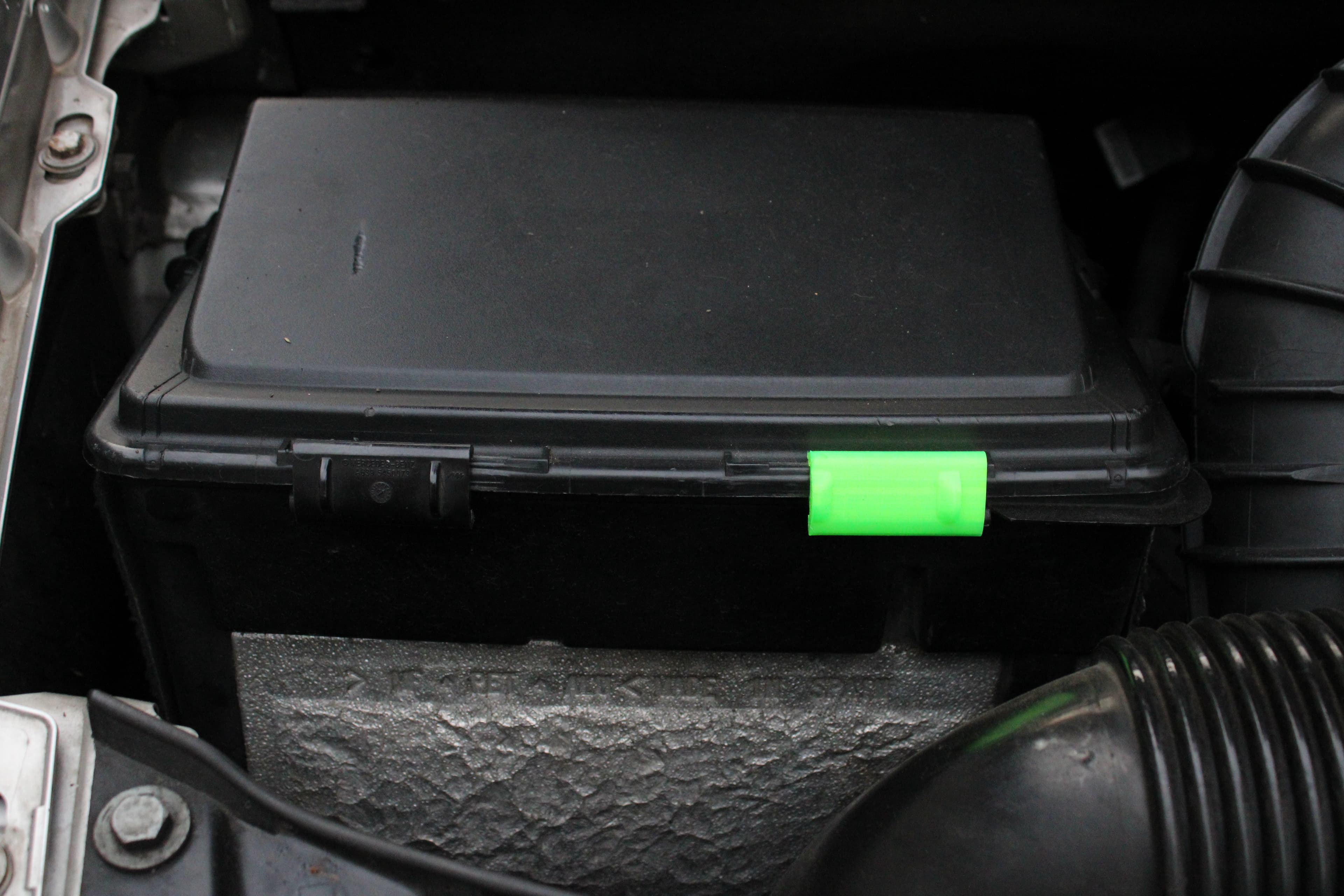

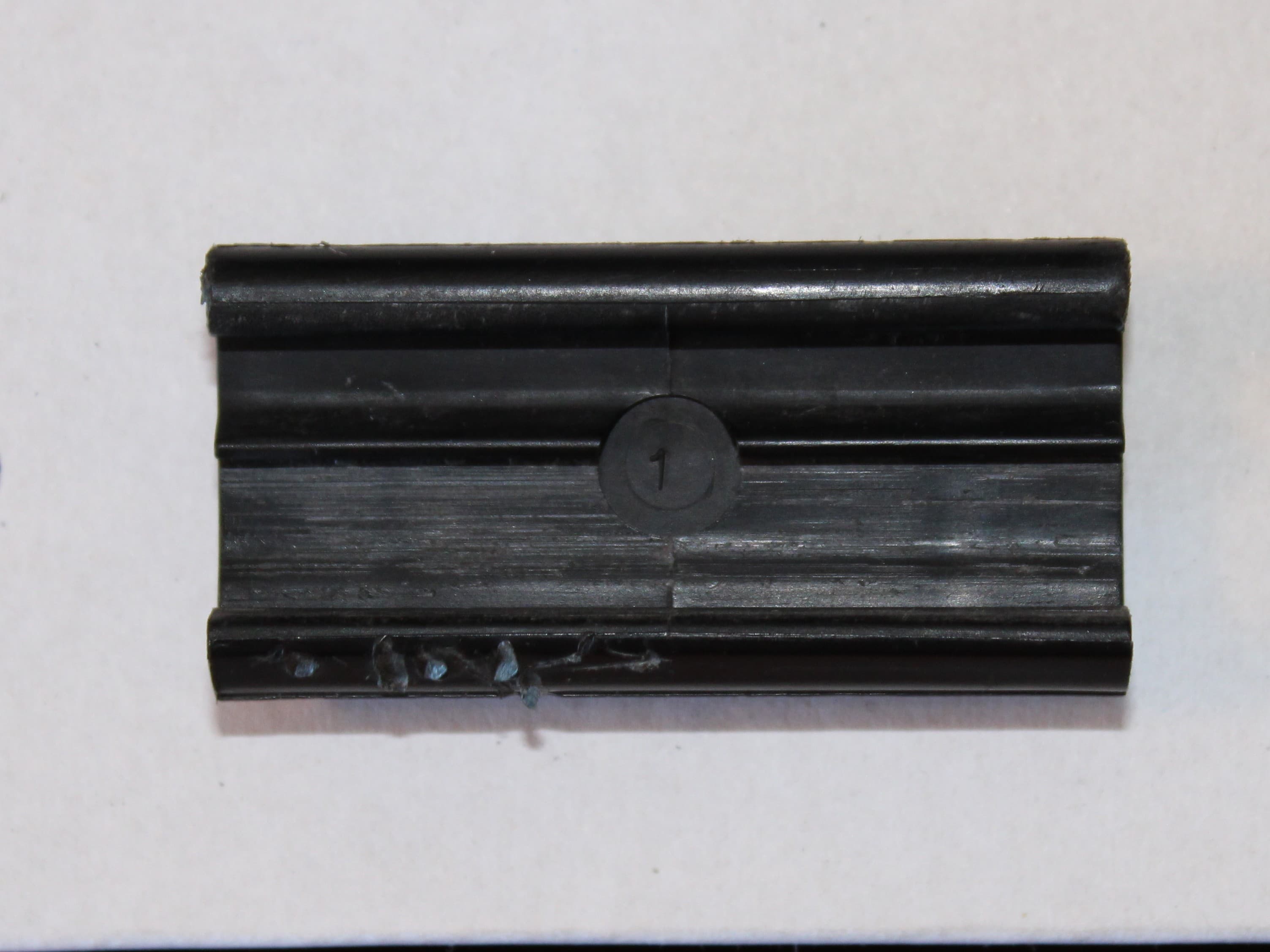

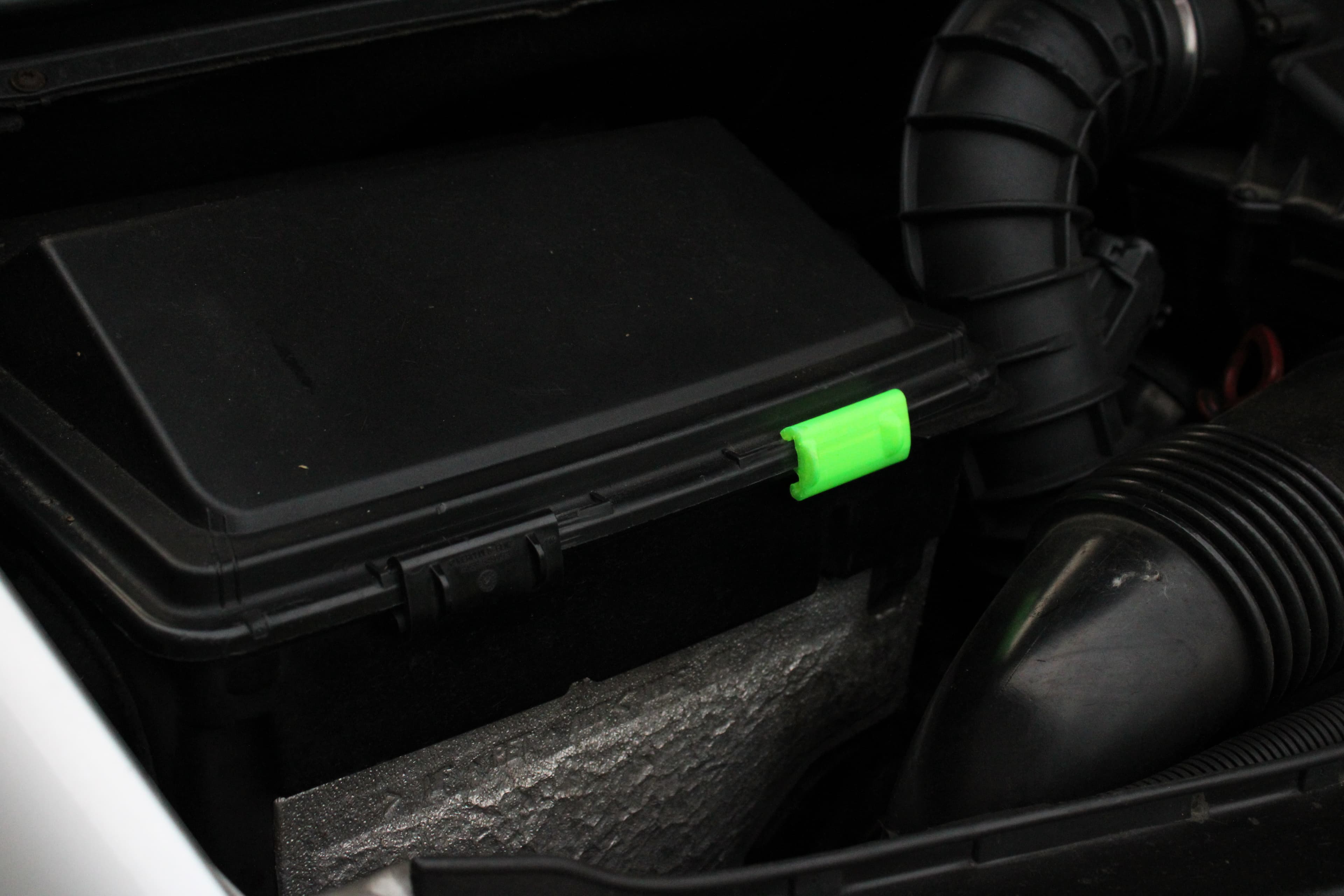

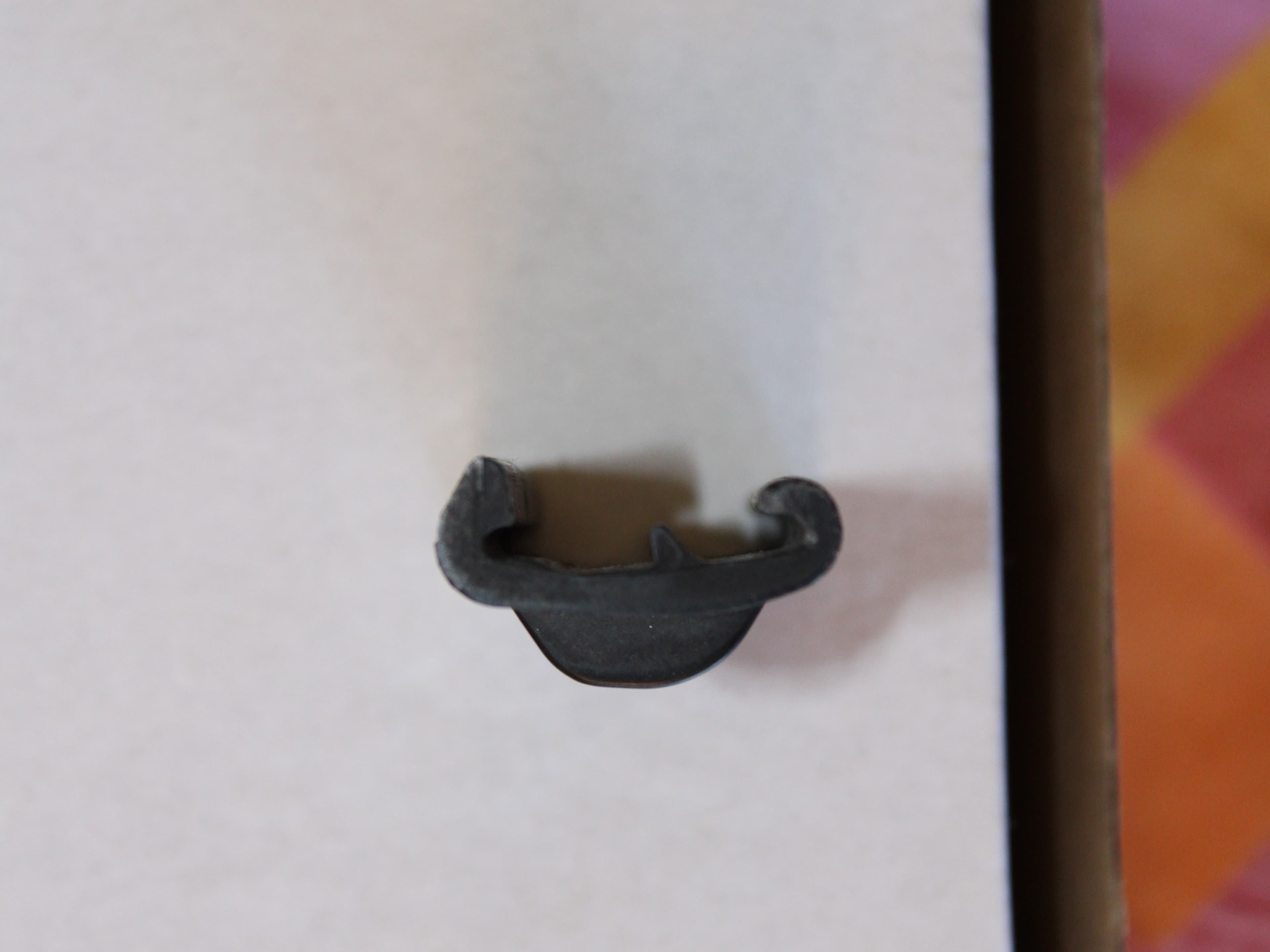

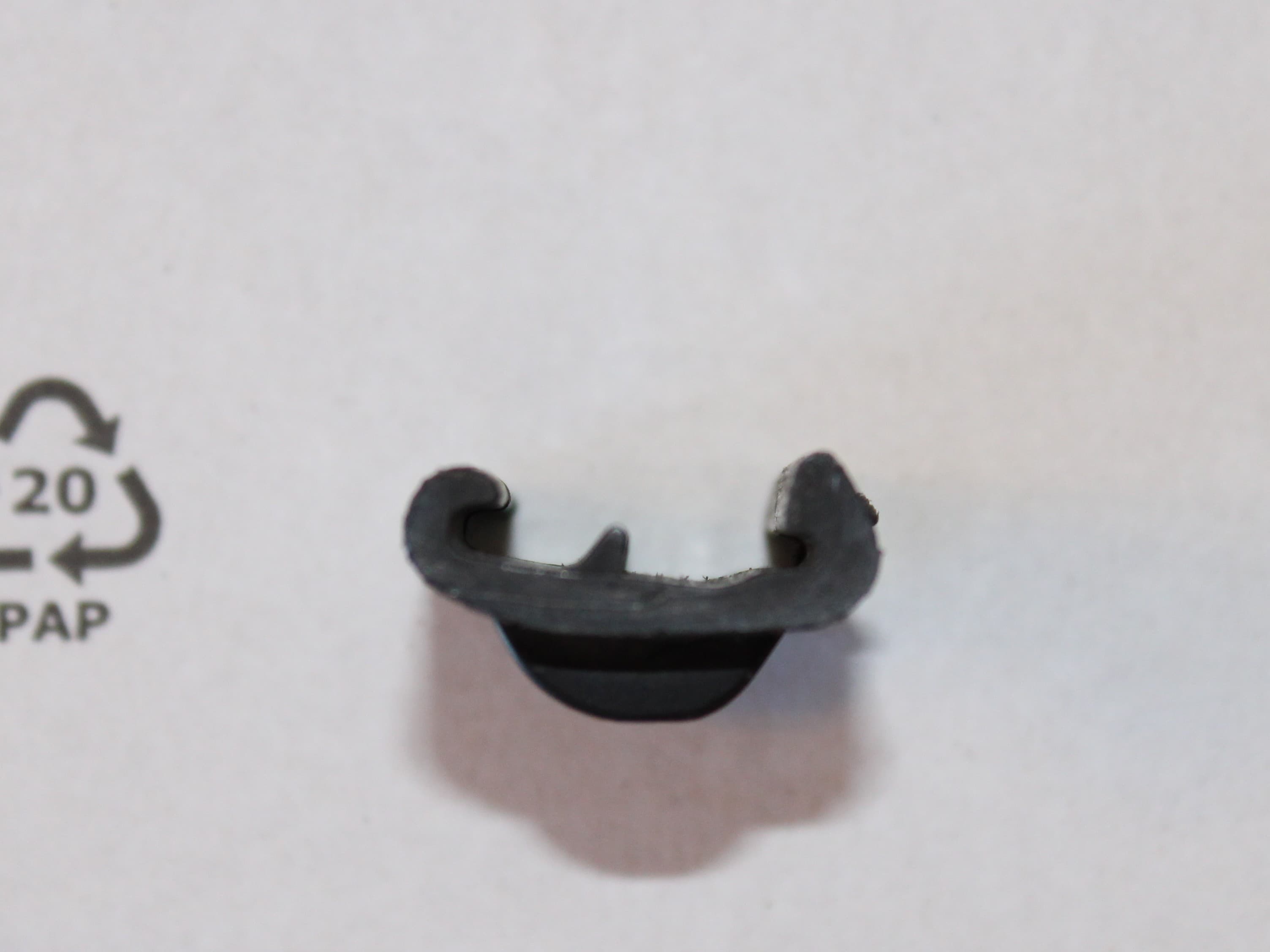

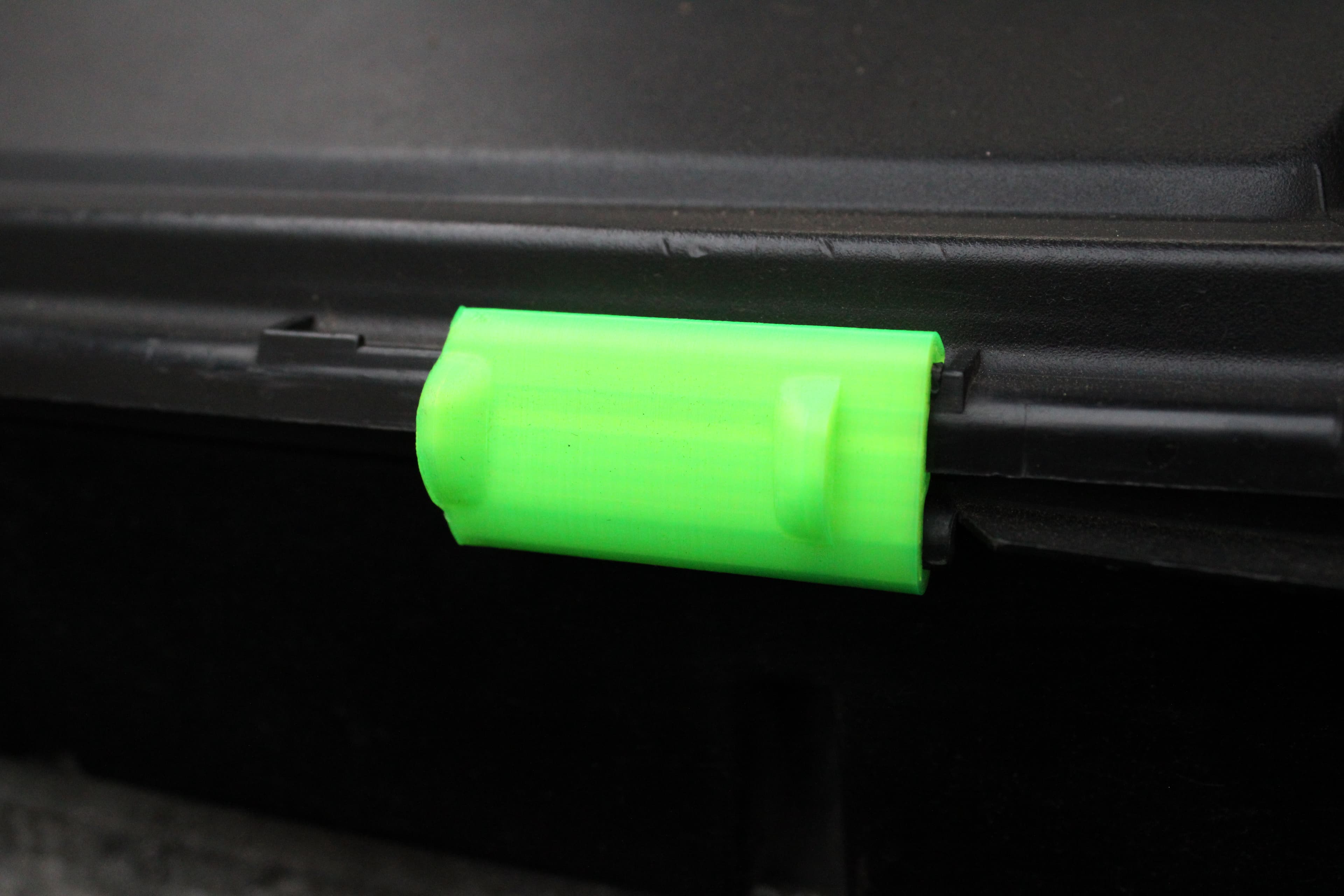

Replacement latch clip for the engine-compartment electrical fuse box, identified by the creator as the exact serviced child. Source photographs compare it with the original and show it retaining the lid. Print in engine-bay-temperature-resistant PETG, ABS or nylon, verify the box and latch version, and confirm the lid seals and remains secured without pinching wiring.
