PART №1750

Estate Cargo-Net Mounting Recess Set

PETG1 FILEPublic DomainCabin trim, cargo & roof
SummaryREF 1750
PART
Estate Cargo-Net Mounting Recess Set
OEM
FITS
E-Class W211 / S211
PartREV 2026

Loading 3D viewer...

Ref 17501 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1750
  • [01]Daimler net roll mount.stl.STL
  • [02]Bounding box137.000 × 51.000 × 17.000 mm
  • [03]Volume50,130.317 mm³
Field notes
BY MELT

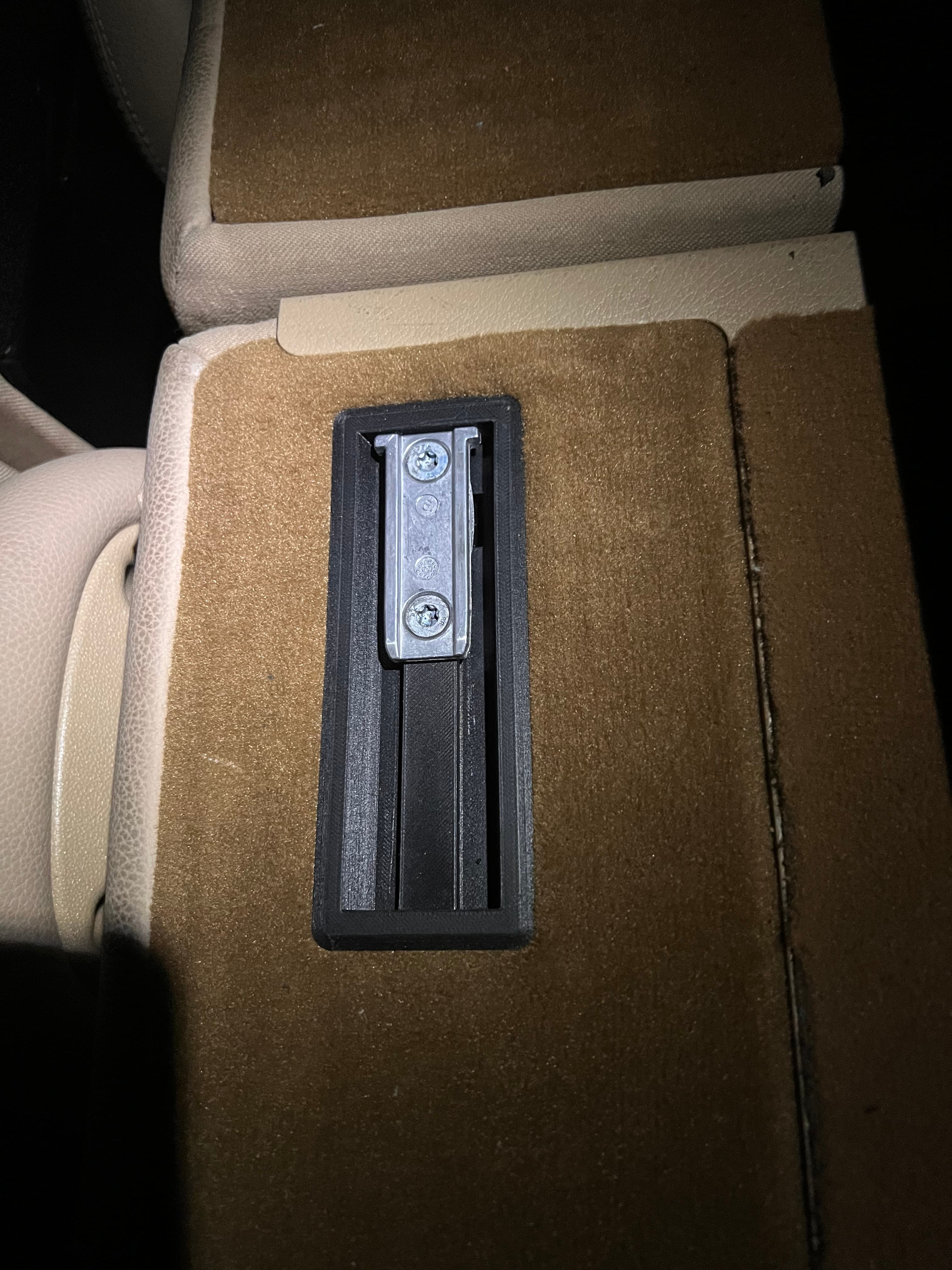

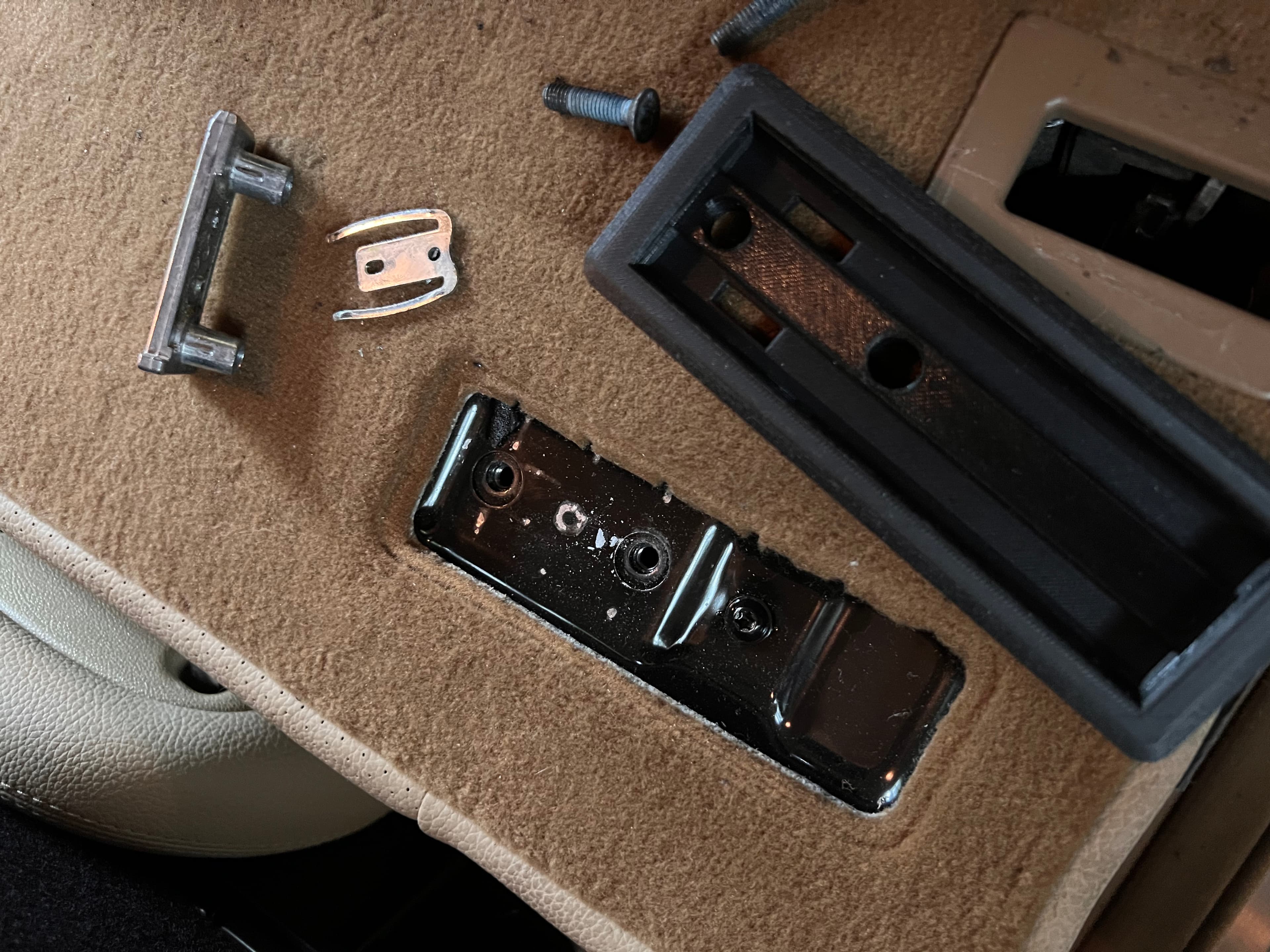

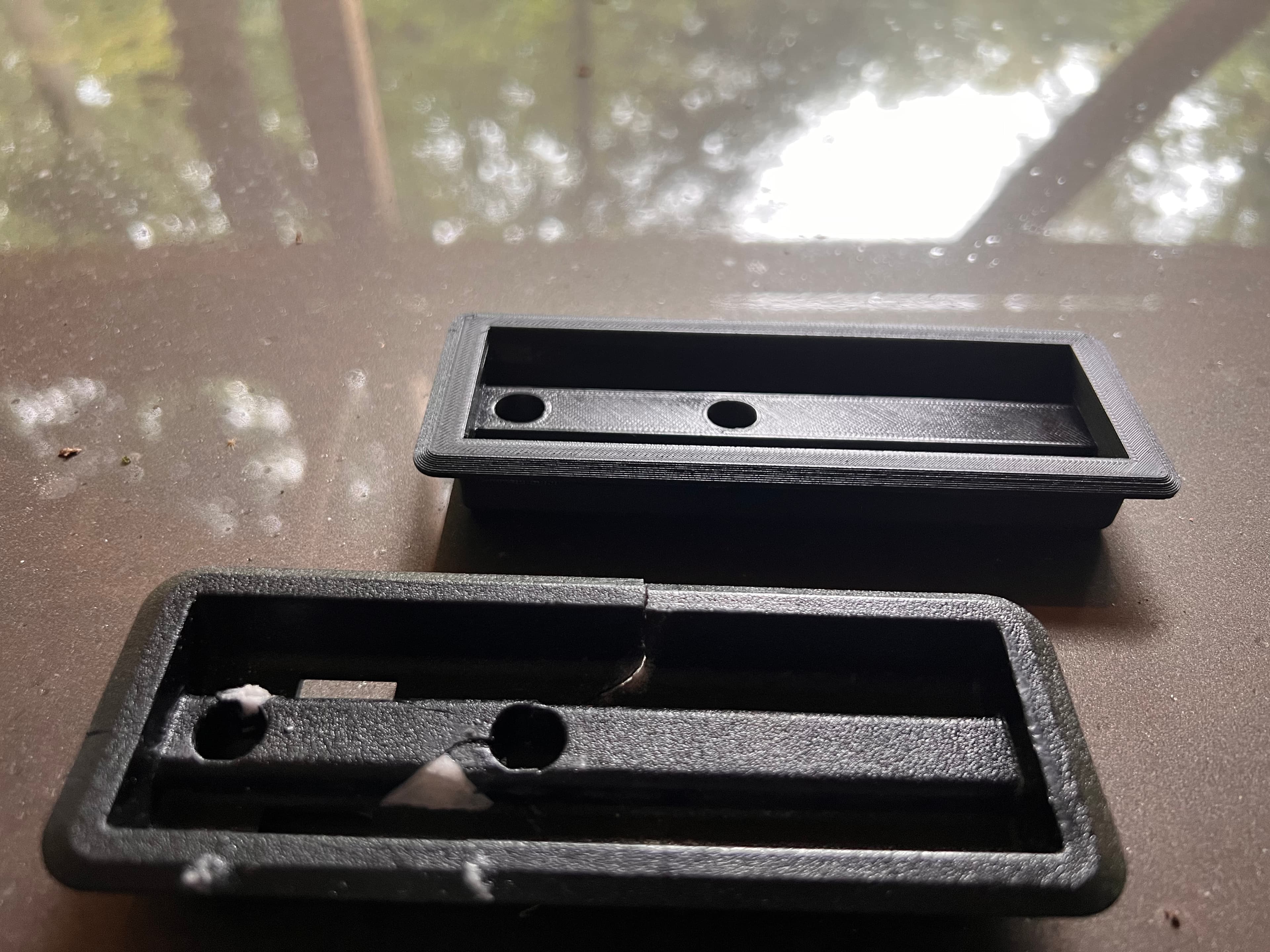

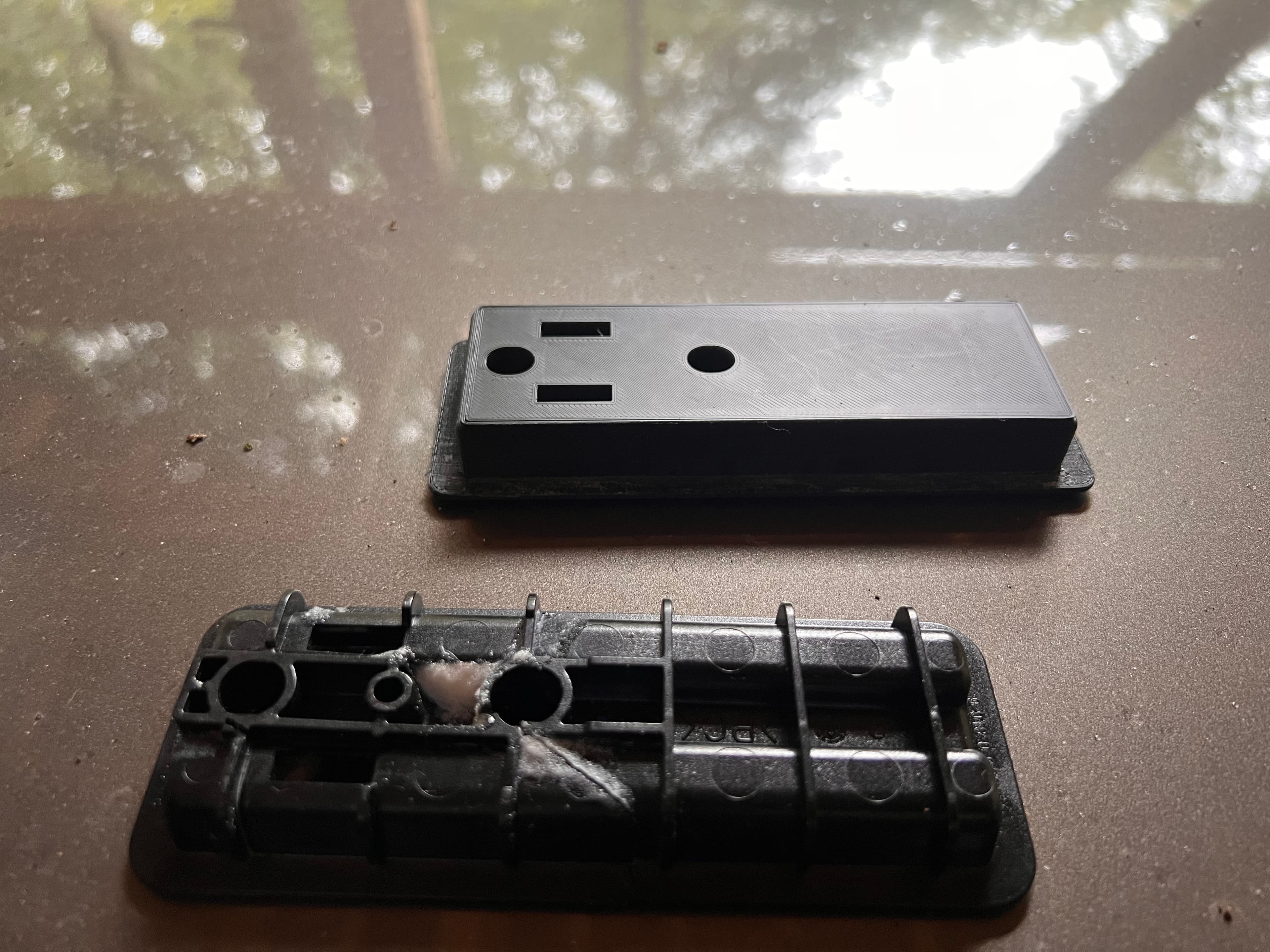

Left and right plastic recesses that retain the metal mounting points for the estate luggage-compartment protection-net roller on the rear-seat backs. The creator reports a snug fit, recommends PETG with build-plate supports, and notes that the 9 mm bracket holes are intentionally tight.
