PART №1751
Estate Rear-Seatbelt Retaining Clip Set
PETG1 FILECC-BYCabin trim, cargo & roof
- PART
- Estate Rear-Seatbelt Retaining Clip Set
- OEM
- —
- FITS
- E-Class W211 / S211
Loading 3D viewer...
Ref 17511 STL filePrints without supports
Field photographs
3 PLATES

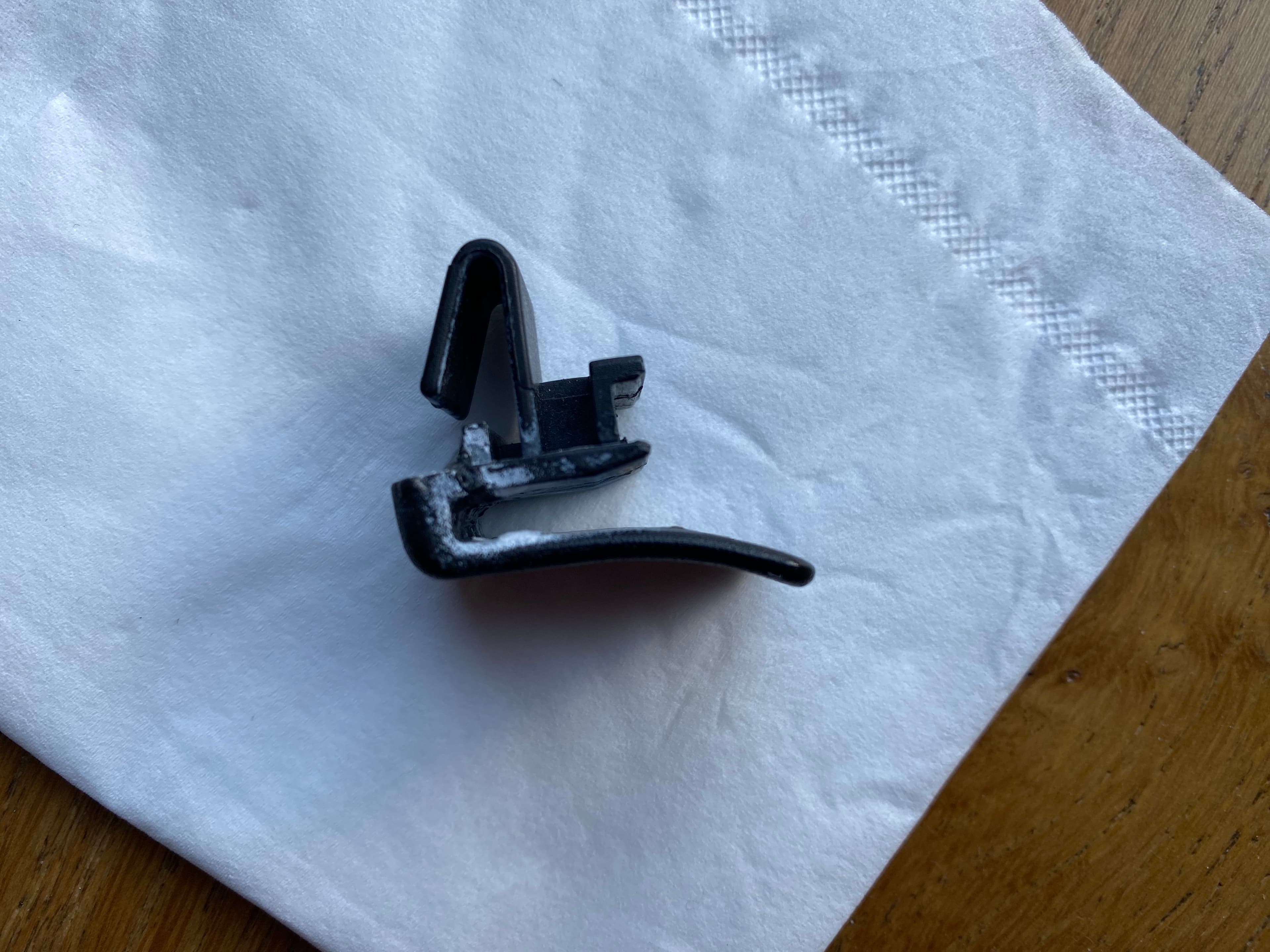

PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1751- [01]w211 seatbelt clip v2.stlw211 seatbelt clip v2.stl.STL
- [02]Bounding box28.567 × 27.832 × 19.000 mm
- [03]Volume2,739.903 mm³
Field notes
BY DOMINOES7155Two replacement retaining clips that keep the estate rear seatbelts clear while the seat backs are folded. The creator reports accurate fit and warns that PLA deformed in summer cabin heat; use PETG or a more heat-resistant material.
