PART №1767
Factory Phone-Cradle Adapter Plate
ABS · Nylon · PETG4 FILESCC-BY-NCConsole & storage
- PART
- Factory Phone-Cradle Adapter Plate
- OEM
- —
- FITS
- Vito / Viano / V-Class W639
Loading 3D viewer...
Ref 17674 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions
MAN-1767- [01]w639-phone-holder-brodit-plate-v2.3mfw639-phone-holder-brodit-plate-v2.3mf.STL
- [02]w639-phone-holder-brodit-plate-v2.stlw639-phone-holder-brodit-plate-v2.stl.STL
- [03]w639-phone-holder-brodit-plate-v3.3mfw639-phone-holder-brodit-plate-v3.3mf.STL
- [04]w639-phone-holder-brodit-plate-v3.stlw639-phone-holder-brodit-plate-v3.stl.STL
- [05]Bounding box54.000 × 53.585 × 49.000 mm
- [06]Volume31,676.887 mm³
Field notes

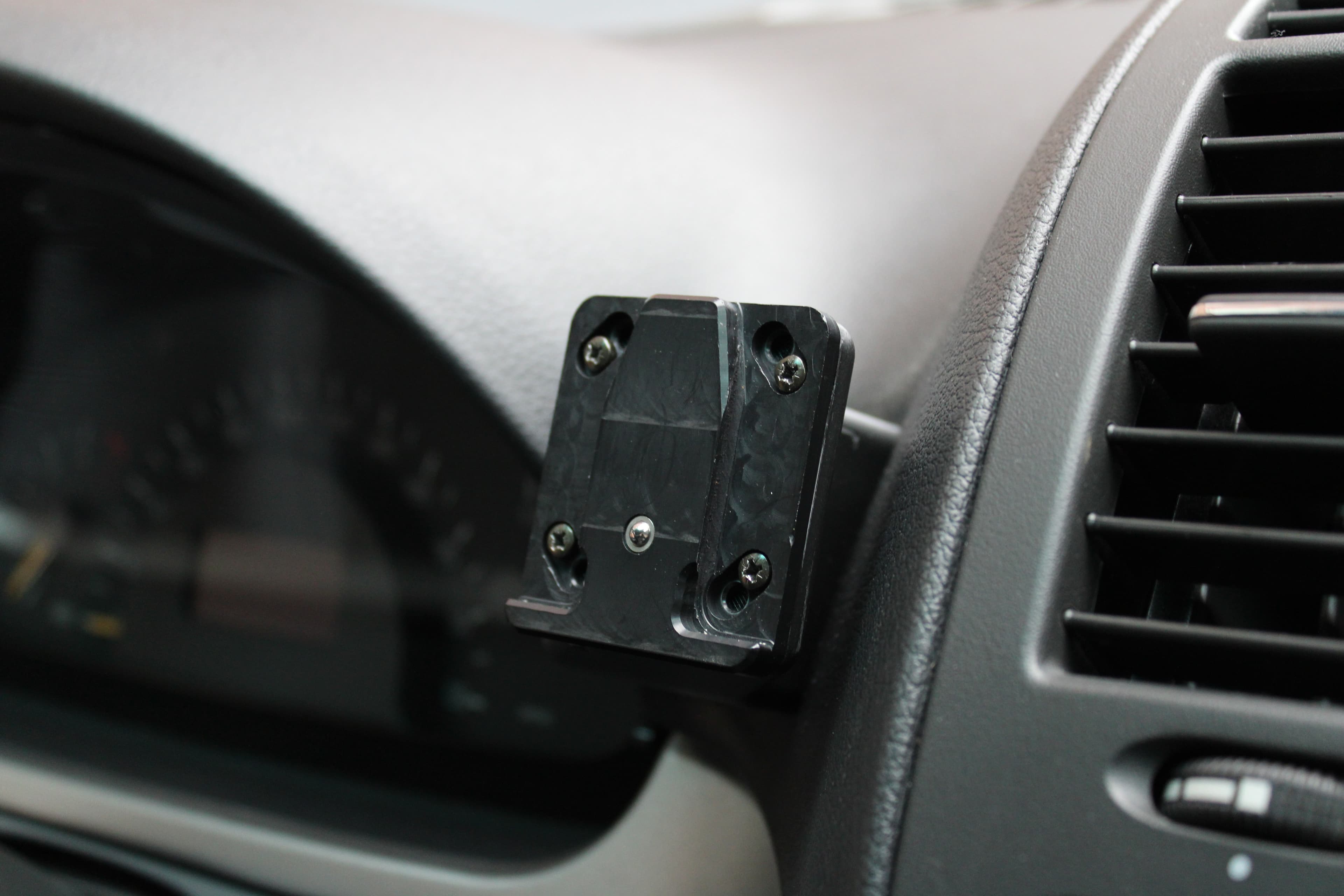

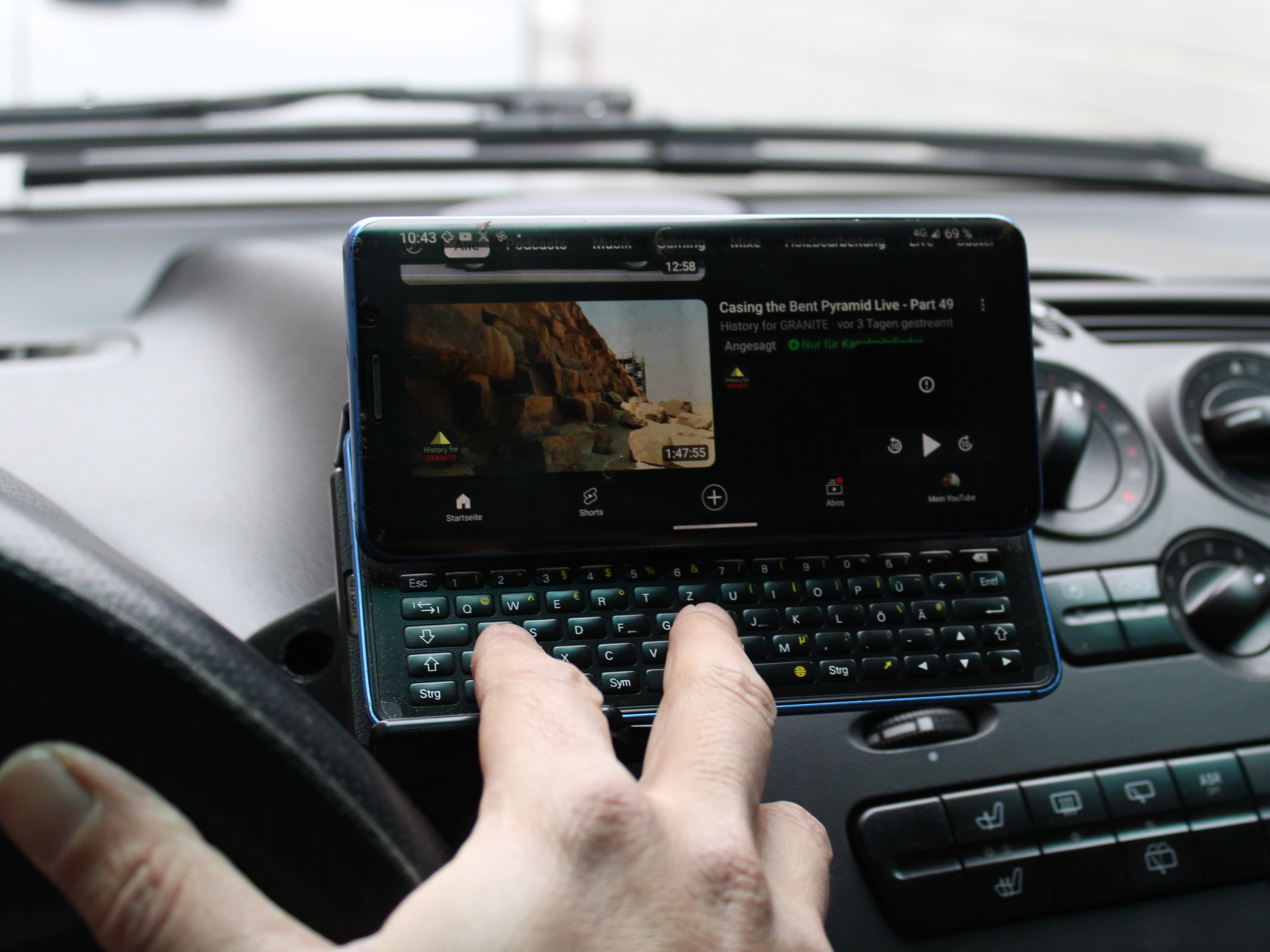

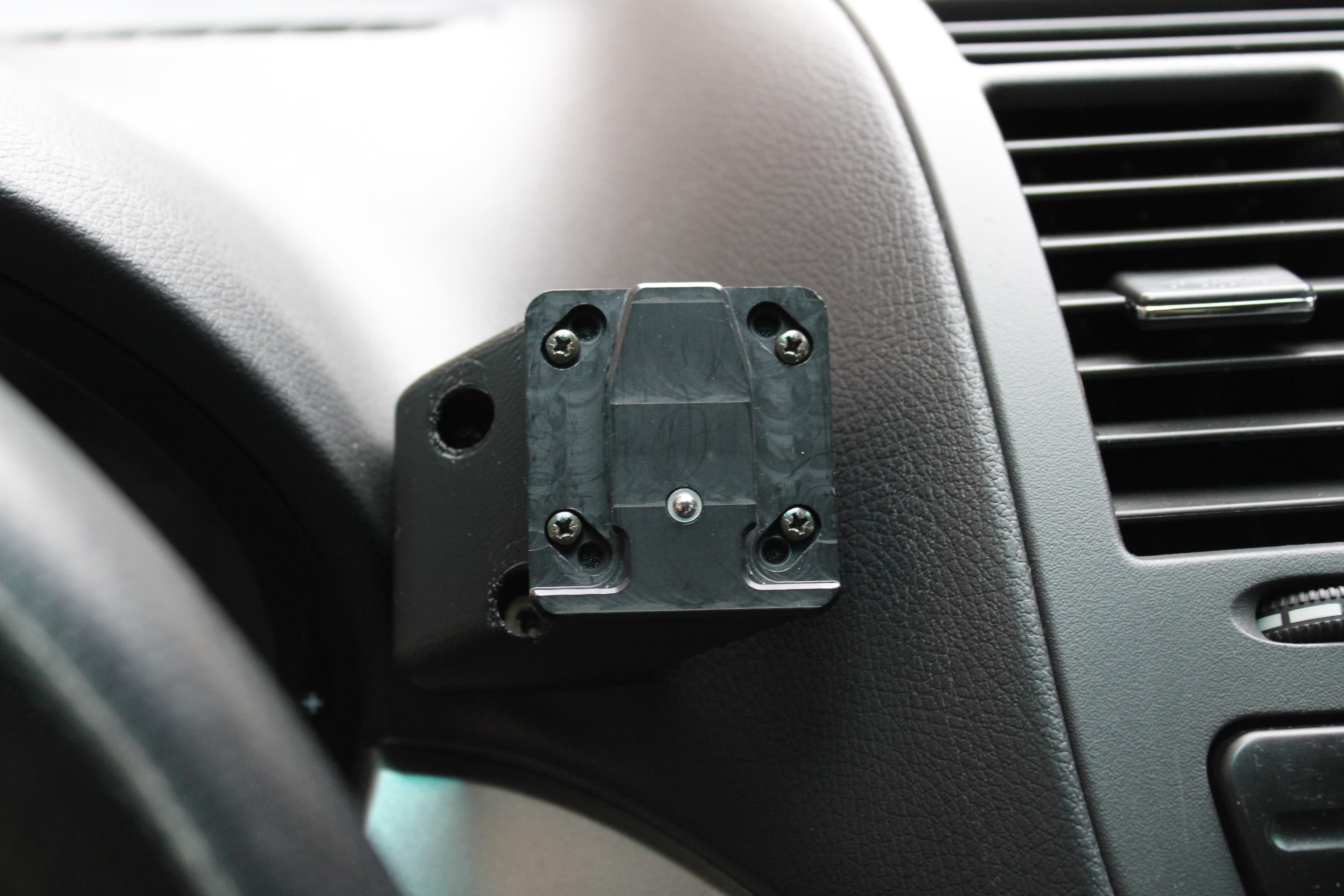

BY MOWERKAdapter plate that replaces the obsolete factory phone cradle while reusing its original dashboard bracket and screws, with variants for a Brodit MoveClip mounting pattern and alternate screen position. Source photographs show the bracket, plate and phones installed. Match the equipped cradle and screw lengths, use cabin-heat-resistant material, and confirm the device cannot obscure instruments, controls, airbags or the driver view.
