PART №1755

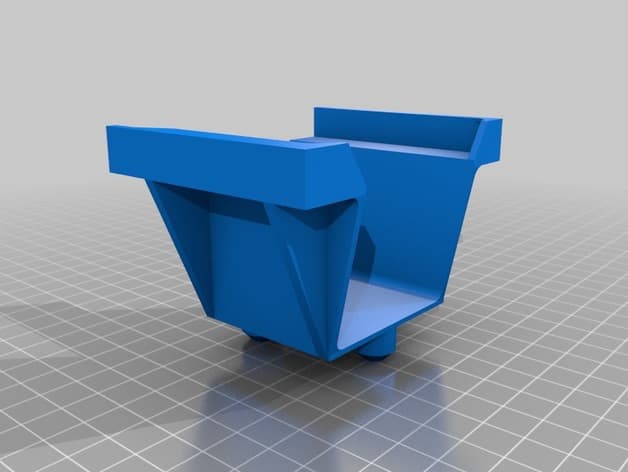

Factory Phone-Cradle Smartphone Holder

ABS · Nylon · PETG1 FILECC-BYConsole & storage
SummaryREF 1755
PART
Factory Phone-Cradle Smartphone Holder
OEM
FITS
Vito / Viano / V-Class W639
PartREV 2026

Loading 3D viewer...

Ref 17551 STL filePrints without supports
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Files & dimensions
MAN-1755
  • [01]Handyhalter.stl.STL
  • [02]Bounding box84.500 × 68.000 × 63.500 mm
  • [03]Volume29,986.078 mm³
Field notes
BY MA PRI (HGGLMMR)

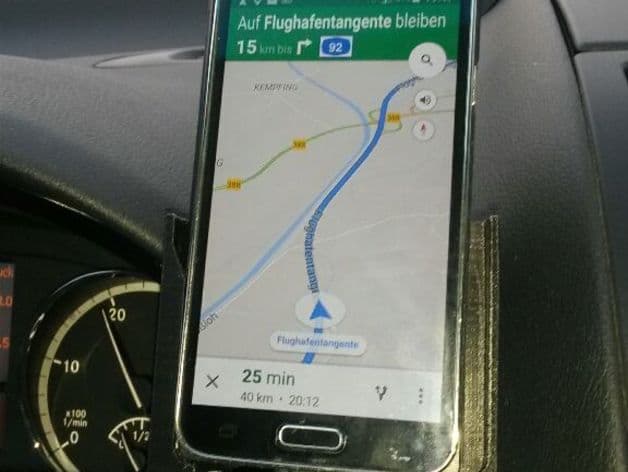

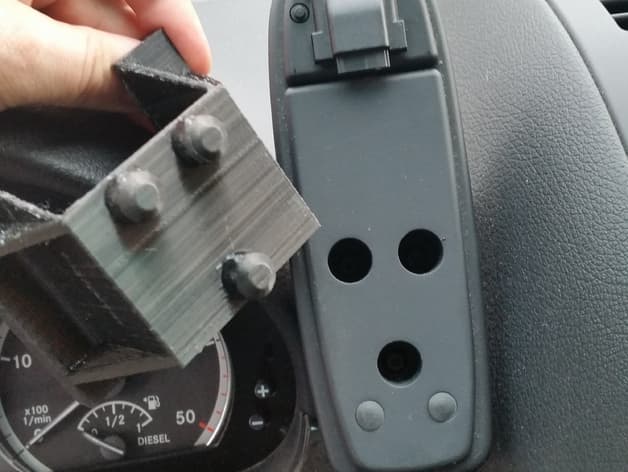

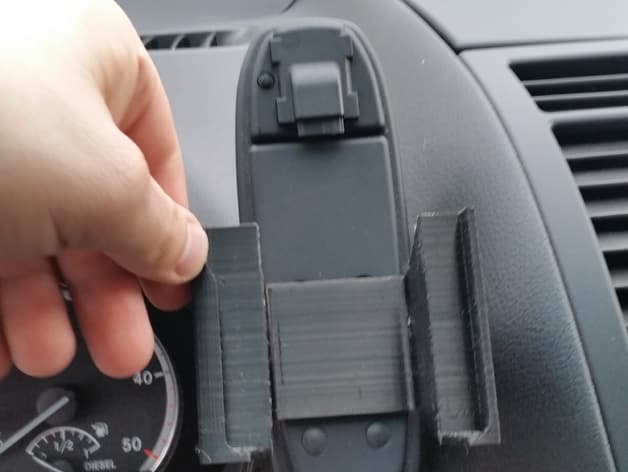

Smartphone holder that mounts into the original SAP V3/V4 Bluetooth cradle beside the steering wheel using the cradle connector and three factory mounting holes. The creator designed it around a Samsung Galaxy S5 with S-View cover; verify the phone and cradle dimensions, keep the display clear of instruments and controls, route charging safely, and confirm the device cannot detach or obstruct steering, airbags or driver visibility.
