PART №1628

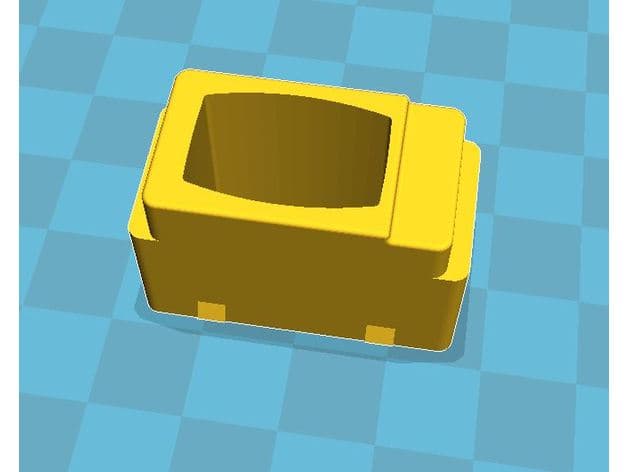

Fader-Switch USB Cable Insert

ABS · Nylon · PETG1 FILECC-BYConsole & storage
SummaryREF 1628
PART
Fader-Switch USB Cable Insert
OEM
FITS
E-Class W124 / S124 / C124 / A124
PartREV 2026

Loading 3D viewer...

Ref 16281 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1628
  • [01]Fader_USB_3.stl.STL
  • [02]Bounding box33.300 × 21.000 × 18.486 mm
  • [03]Volume6,433.476 mm³
Field notes
BY ANDREW MESZAROS (DREWLINK555)

Insert replacing the disassembled centre-console fader-switch mechanism to retain a USB extension cable from an updated head unit. The source supplies the insert model and console-fit imagery but no electrical hardware. Confirm the early console opening and cable connector, use cabin-heat-resistant insulating material, provide strain relief and fusing for the connected accessory, and keep wiring clear of the selector and original harness.
