PART №1683
Floor Air-Ventilation Grille
REPLACES OEMA63882701397C65
ABS · Nylon · PETG1 FILEPublic DomainDashboard & controls
- PART
- Floor Air-Ventilation Grille
- OEM
- A63882701397C65
- FITS
- Vito / Viano / V-Class W638
Loading 3D viewer...
Ref 16831 STL filePrints without supports
Field photographs
2 PLATES
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1683- [01]Grille aeration sol W638 - 5.stlGrille aeration sol W638 - 5.stl.STL
- [02]Bounding box156.546 × 46.241 × 32.683 mm
- [03]Volume27,388.294 mm³
Field notes

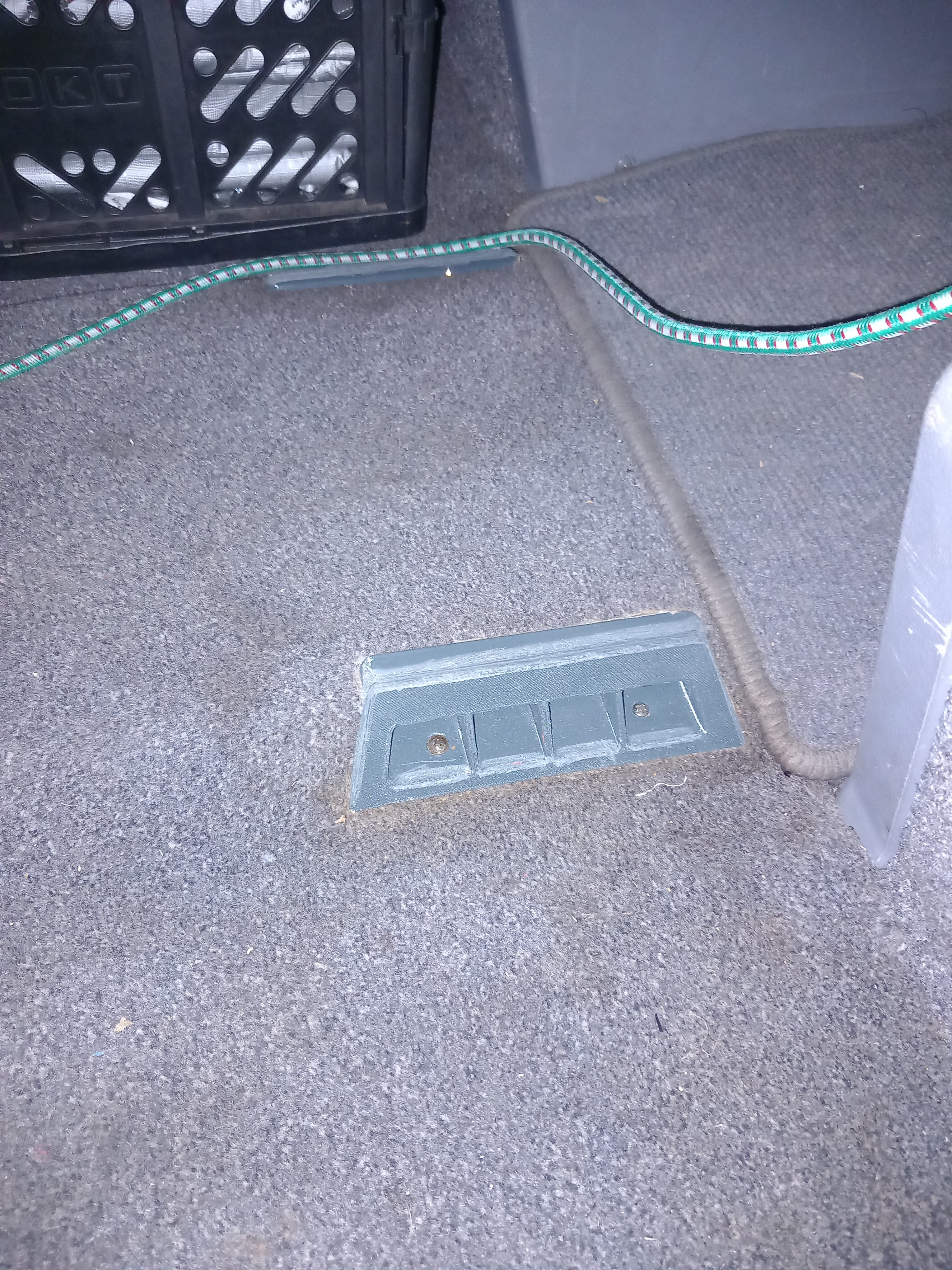

BY MASTERE30Replacement floor air-ventilation grille identified by the creator as A63882701397C65. Source photographs show the physical grille installed in the carpeted floor opening. Use tough cabin-heat- and abrasion-resistant material, match the opening and colour/trim version, clear every slot and edge, seat the grille flush without trapping carpet, and confirm unrestricted airflow and clearance from feet, seats and movable interior fittings.
