PART №1776
Floor-Mat Retaining Clip Set
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYCabin trim, cargo & roof
- PART
- Floor-Mat Retaining Clip Set
- OEM
- —
- FITS
- A-Class W169
Loading 3D viewer...
Ref 17762 STL filesPrints without supports
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Files & dimensions

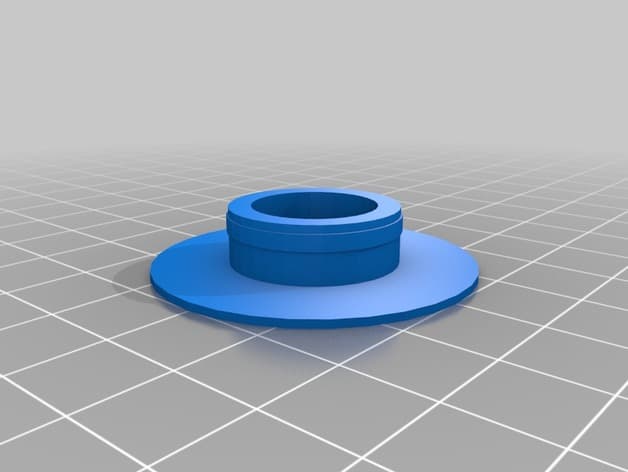

MAN-1776- [01]mercedes_a-class_w169_floor_mat_clips_v6_bottom.stlmercedes_a-class_w169_floor_mat_clips_v6_bottom.stl.STL

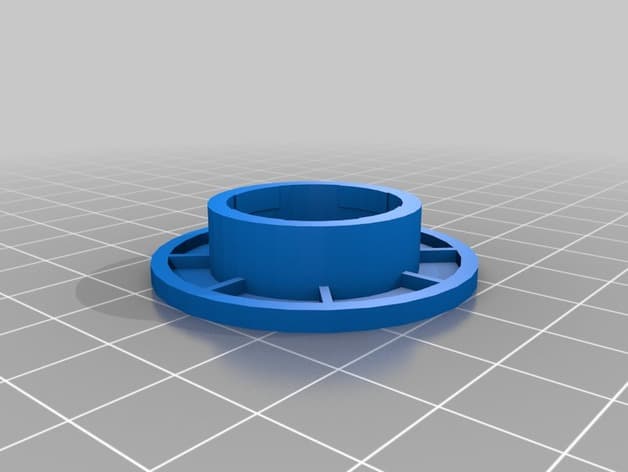

- [02]mercedes_a-class_w169_floor_mat_clips_v6_top.stlmercedes_a-class_w169_floor_mat_clips_v6_top.stl.STL
- [03]Bounding box40.002 × 40.002 × 17.003 mm
- [04]Volume5,123.303 mm³
Field notes

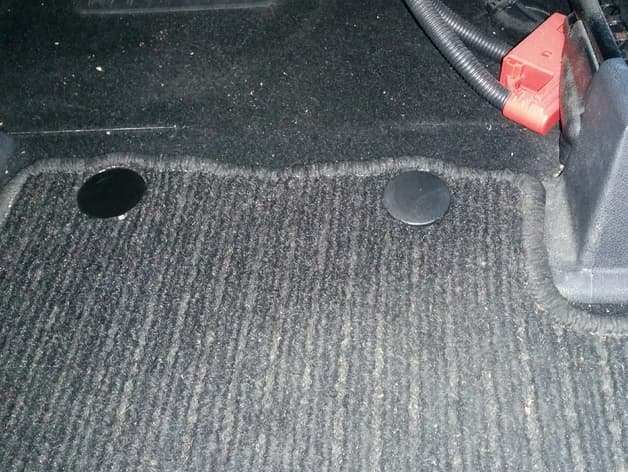

BY STEFAN ROSGAARD (ESKIMO)Two-piece retaining clip for the driver's floor mat. The creator designed and tested it on a 2011 vehicle, states that the two halves permanently snap together through the mat, and notes that removal from the floor takes slightly more force than the original. The source print used PLA with a 0.4 mm nozzle, no raft and no supports; for sustained cabin heat, prefer an automotive-temperature-capable material. Confirm that both halves are fully locked, that the mat cannot slide toward the pedals, and stop using the print if it loosens or cracks.
