PART №1744

Folding Cup-Holder Repair Link

ABS · Nylon · PETG1 FILECC-BY-SAConsole & storage

SummaryREF 1744

PART: Folding Cup-Holder Repair Link
OEM: —
FITS: E-Class W211 / S211

Loading 3D viewer...

Ref 17441 STL filePrints without supports

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Files & dimensions

MAN-1744

[01]f7wG9Uq38zD.stlf7wG9Uq38zD.stl.STL
[02]Bounding box35.997 × 7.498 × 4.498 mm
[03]Volume427.234 mm³

Field notes

BY SOSNA997OK ADAM (SOSNOWSKI)

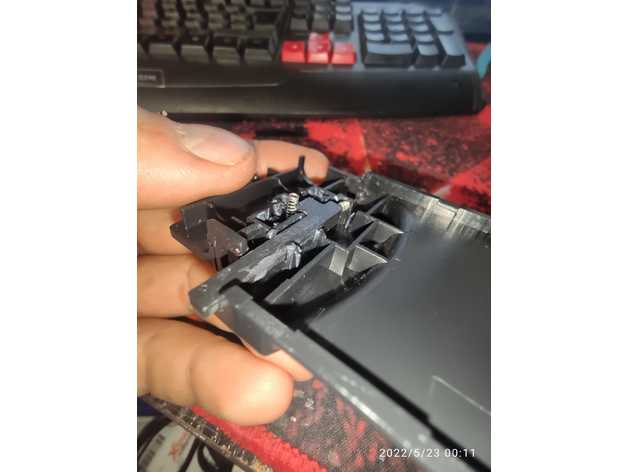

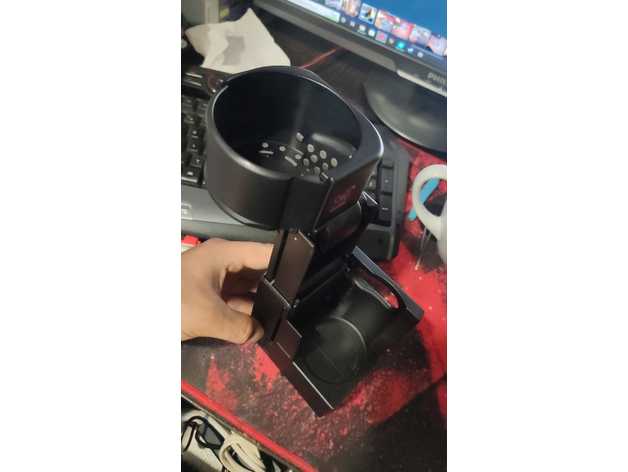

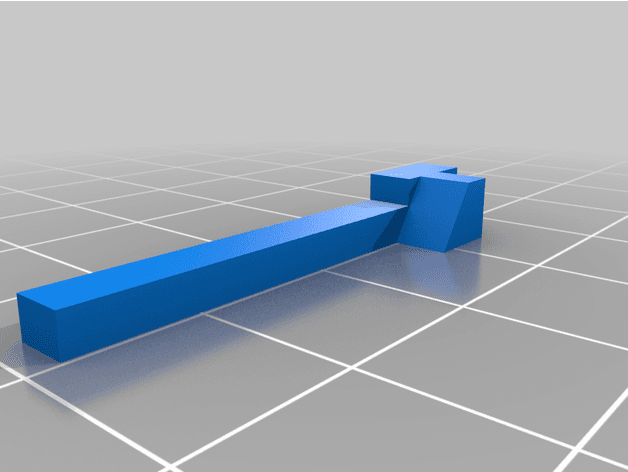

Replacement link for the folding center-console cup-holder mechanism. Source photos document the original mechanism, printed part and working assembly; verify smooth movement before reinstalling the trim.
