PART №1787
Front-Door B-Pillar Trim-Cap Set
ABS · PETGMULTI-PART3 FILESCC-BYInterior doors & windows
- PART
- Front-Door B-Pillar Trim-Cap Set
- OEM
- —
- FITS
- M-Class / GLE W164
Loading 3D viewer...
Ref 17873 STL filesPrints without supports
Field photographs
2 PLATES

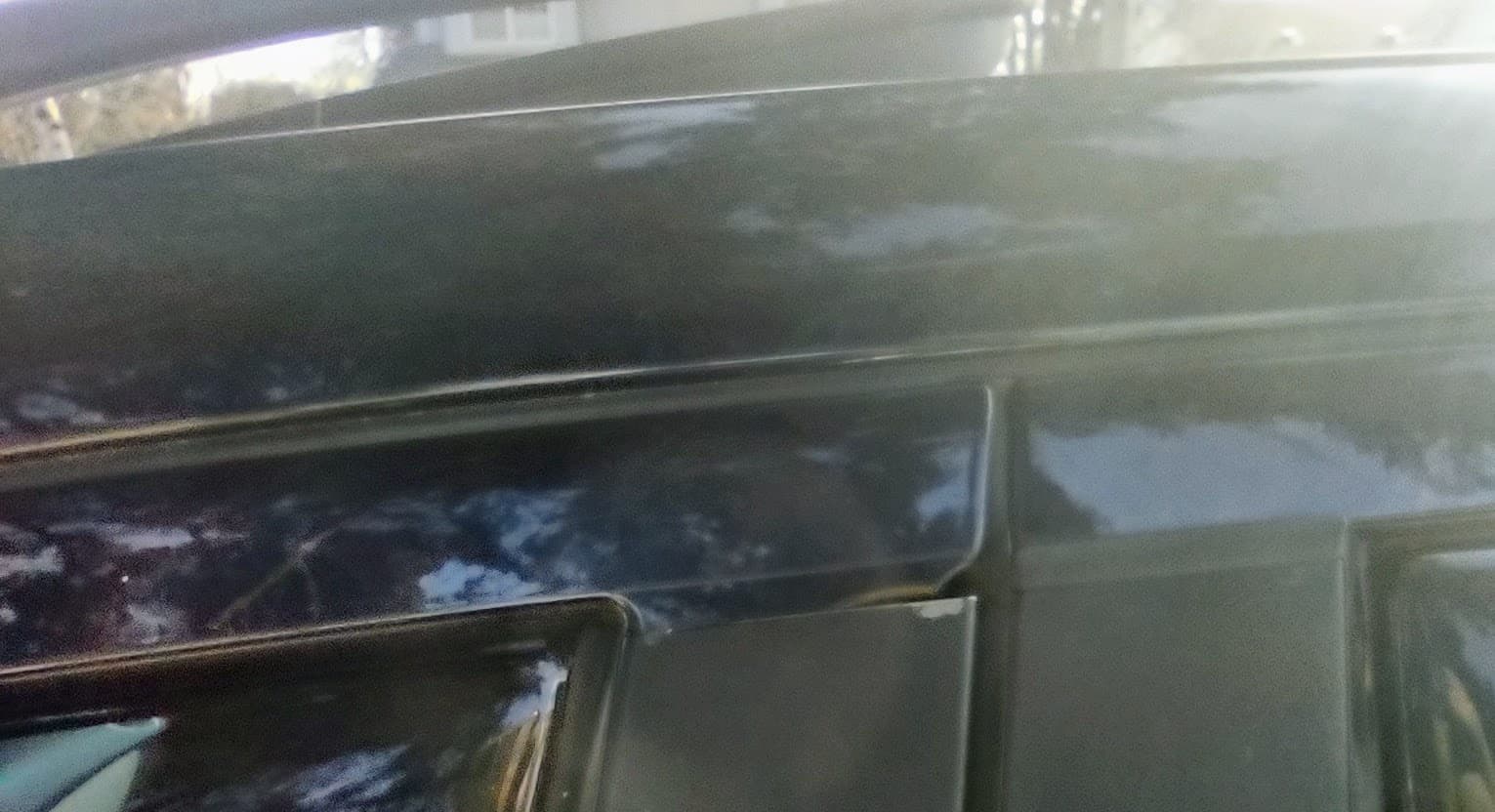

PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1787- [01]W164 B Pillar Trim Cap LH.stlW164 B Pillar Trim Cap LH.stl.STL
- [02]W164 B Pillar Trim Cap RH.stlW164 B Pillar Trim Cap RH.stl.STL
- [03]W164 B Pillar Trim Caps.stepW164 B Pillar Trim Caps.step.STL
Field notes
BY HAROLD SULLIVANLeft- and right-hand caps that close the openings at the tops of the front-door B-pillar trims. The creator modeled substitutes from a deteriorating original on an ML350, recommends ABS, ASA or PETG rather than PLA for sun exposure, and advises a test fit with light filing if necessary plus a small amount of clear adhesive behind the cap. EPC evidence found complete left/right trim mouldings, not these printed child caps, so no parent assembly number is assigned.
