PART №1621

Front-Right Sill-End Cap

REPLACES OEMA2016981030

ABS · Nylon · PETG1 FILECC-BY-NCBody panels & exterior trim

SummaryREF 1621

PART: Front-Right Sill-End Cap
OEM: A2016981030
FITS: 190 Series W201

Loading 3D viewer...

Ref 16211 STL filePrints without supports

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Files & dimensions

MAN-1621

[01]zaglushka_poroga_w201.stlzaglushka_poroga_w201.stl.STL
[02]Bounding box51.847 × 50.000 × 12.085 mm
[03]Volume8,359.975 mm³

Field notes

BY SLYD1CK

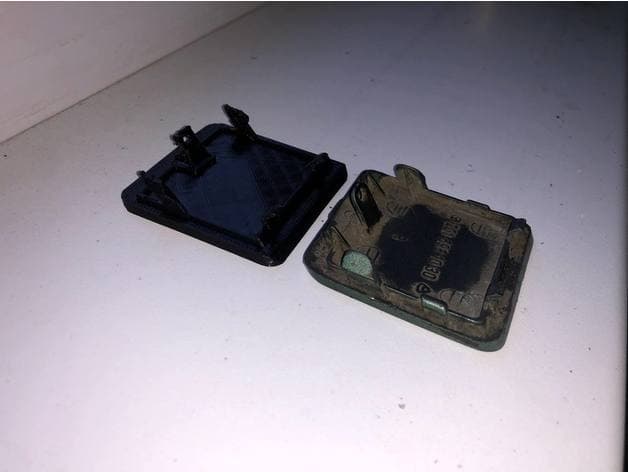

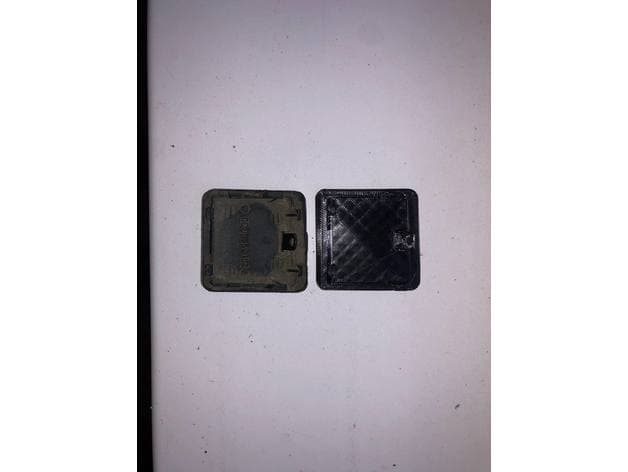

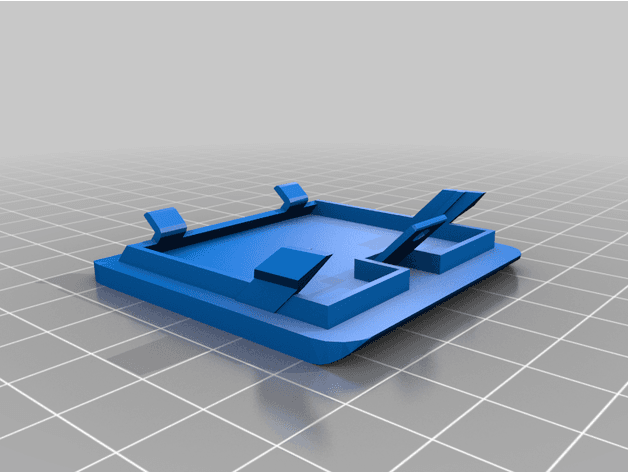

Replacement cover for the front-right opening in the side-member/sill cladding. Source photographs show the installed location, the original and printed pieces, and the CAD model. EPC evidence identifies the right-front covering; use UV-, weather- and impact-resistant material, inspect the mounting opening for corrosion, and confirm the cap remains secure.
