PART №1764

Fuel-Cap Tether

TPU1 FILECC-BY-NCCooling, fuel & exhaust
SummaryREF 1764
PART
Fuel-Cap Tether
OEM
FITS
Vito / Viano / V-Class W639
PartREV 2026

Loading 3D viewer...

Ref 17641 STL filePrints without supports
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Files & dimensions
MAN-1764
  • [01]vito-gas-capv2.stl.STL
  • [02]Bounding box108.122 × 64.898 × 9.998 mm
  • [03]Volume2,182.756 mm³
Field notes
BY BLAYSS

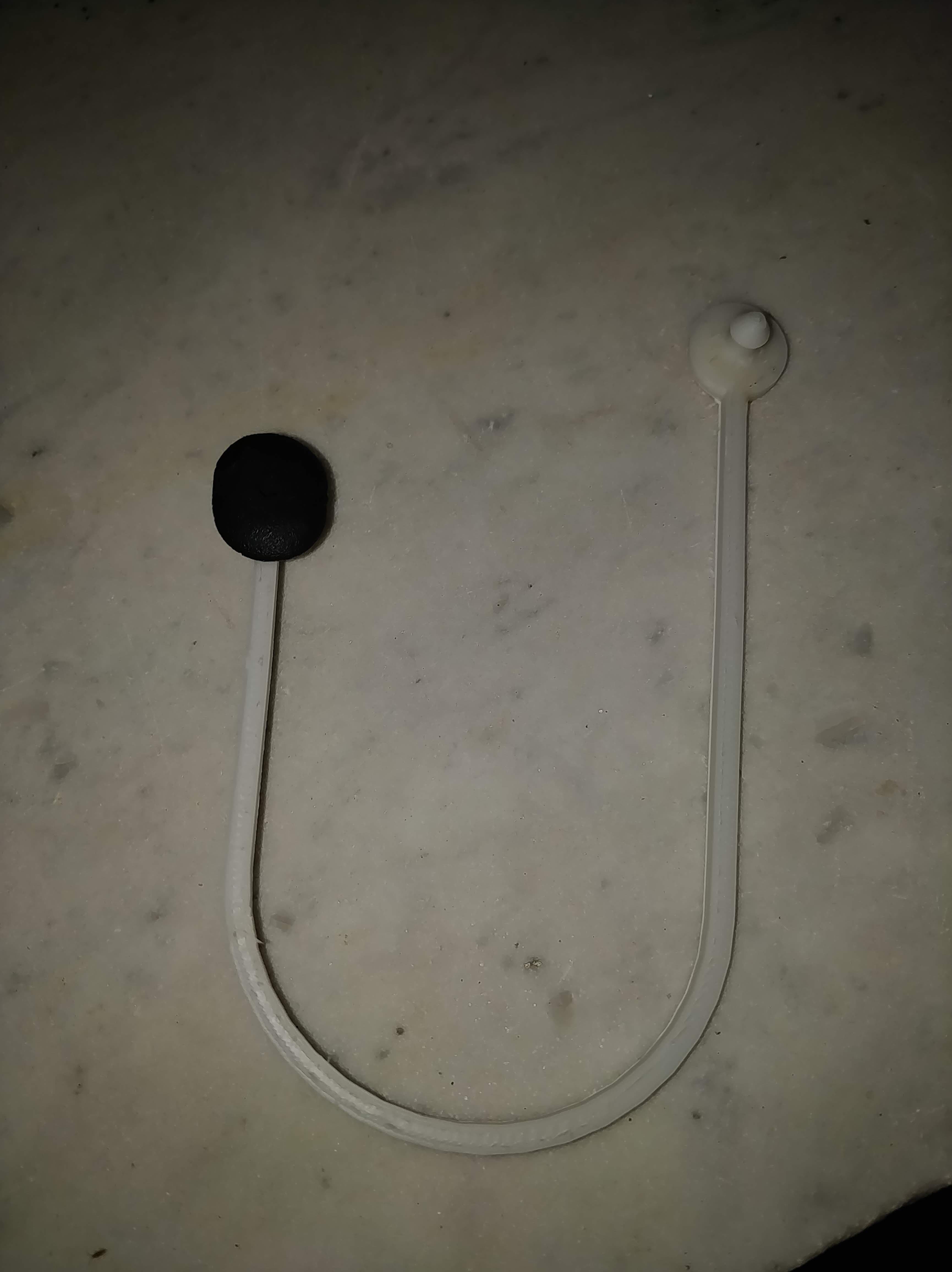

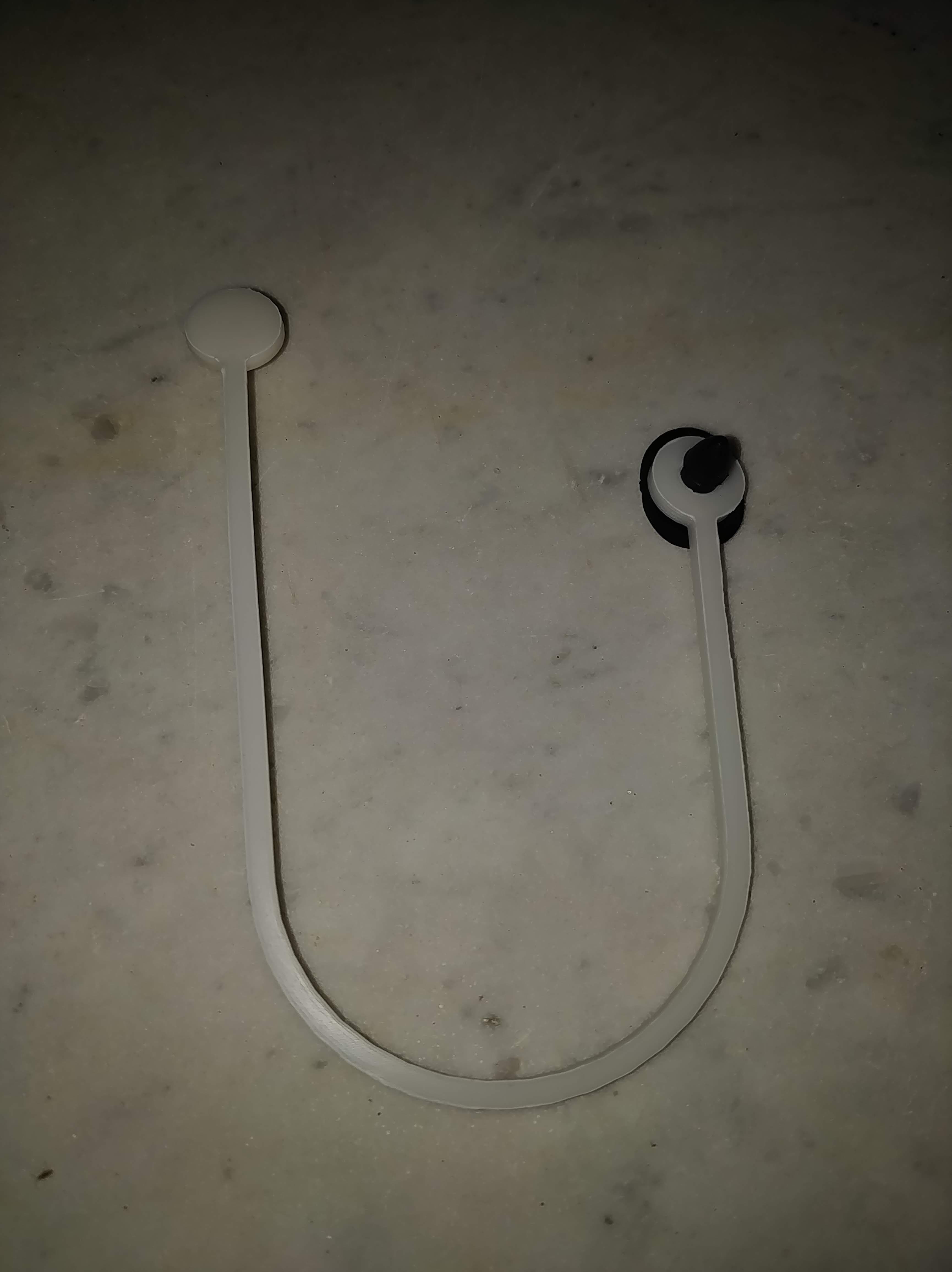

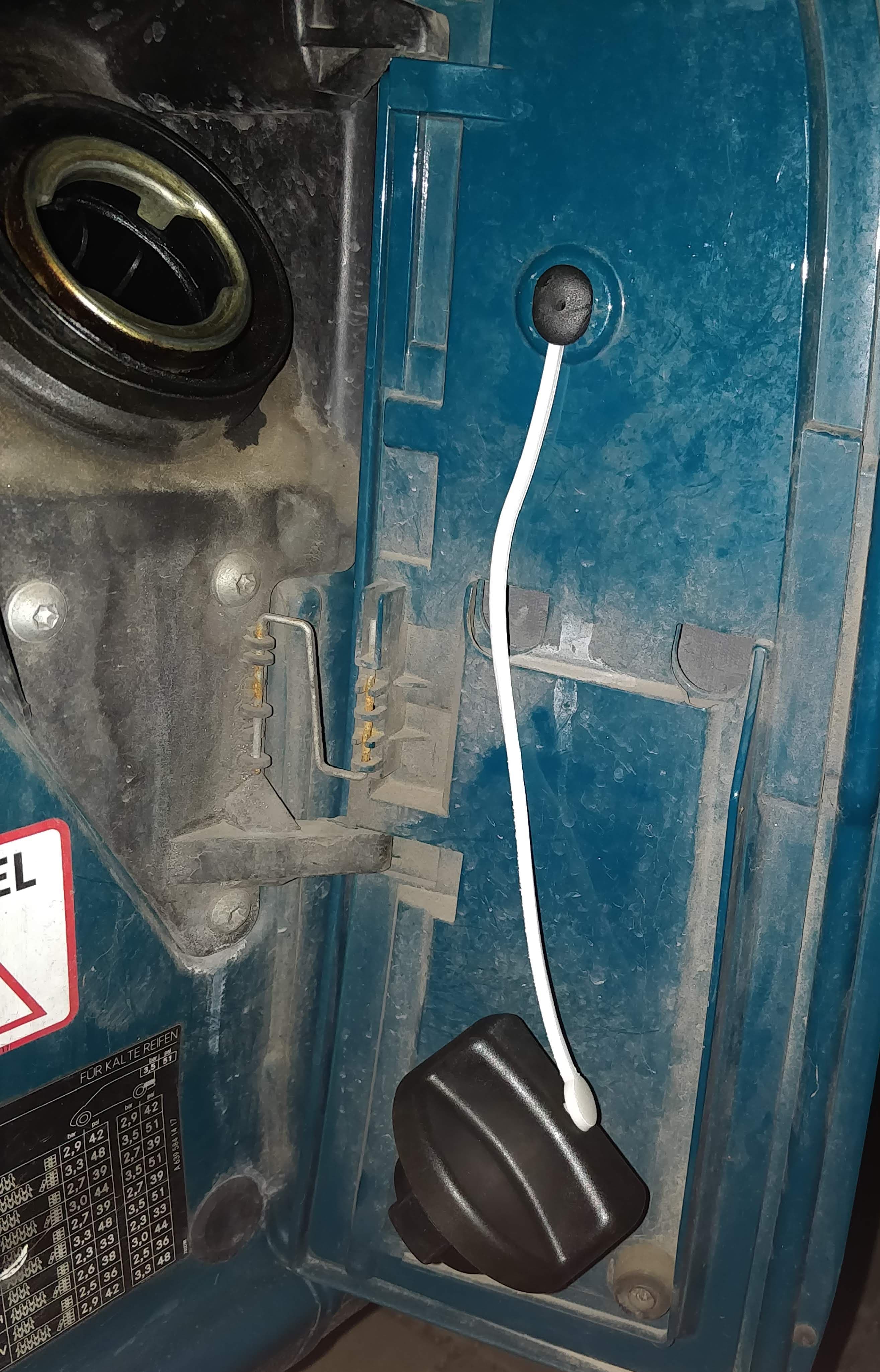

Flexible replacement tether for the fuel filler cap, created after the original tether failed and shown installed on the filler door. Print in fuel-, UV- and weather-resistant flexible material, preserve the cap sealing surfaces and venting, keep the tether clear of the neck and hinge, and confirm the cap still seals and locks normally.
