PART №1682

Gear-Selector Internal Repair Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCTransmission & drivetrain
SummaryREF 1682
PART
Gear-Selector Internal Repair Set
OEM
FITS
Vito / Viano / V-Class W638
PartREV 2026

Loading 3D viewer...

Ref 16822 STL filesPrints without supports
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Files & dimensions
MAN-1682
  • [01]1.3mf.STL
  • [02]2.3mf.STL
  • [03]Bounding box37.486 × 36.500 × 25.000 mm
  • [04]Volume5,086.592 mm³
Field notes
BY JORMA KARVAEN (NOBODU)

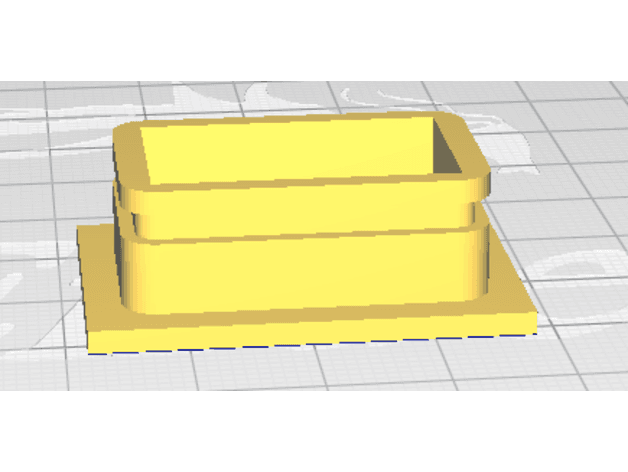

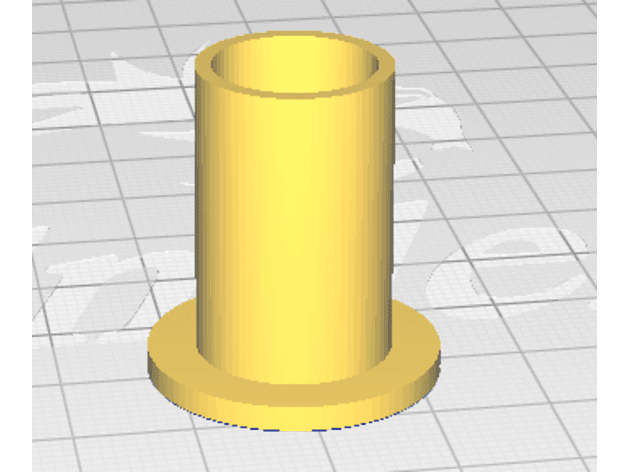

Two internal replacement parts for the gear-selector mechanism. The creator identifies exact chassis fitment, supplies a physical source photograph and states that one O-ring is required to retain the assembly. The archived files were 3MF containers carrying misleading STL extensions and are preserved for upload with corrected .3mf filenames. Compare both original profiles and the selector version, use tough cabin-heat- and wear-resistant material, fit an oil-compatible O-ring of the correct size, and verify every gear position, detent, indication and interlock repeatedly with the vehicle stationary before road use.
