PART №1587

Hazard-Switch Button Cap

ABS · Nylon · PETG1 FILECC-BYDashboard & controls
SummaryREF 1587
PART
Hazard-Switch Button Cap
OEM
FITS
W123 Series W123 / S123 / C123
PartREV 2026

Loading 3D viewer...

Ref 15871 STL filePrints without supports
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1587

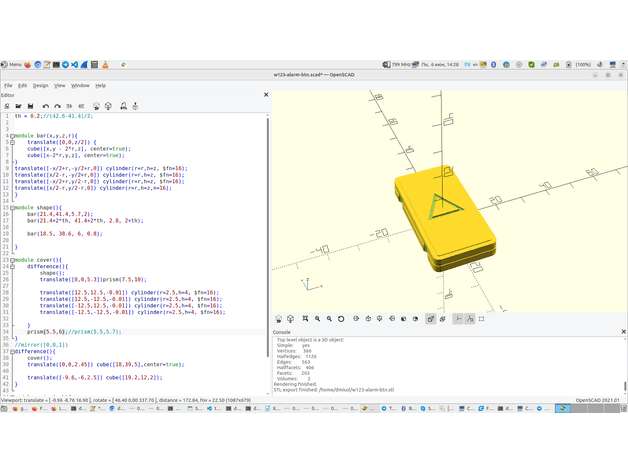

  • [01]w123-alarm-btn.stl.STL
  • [02]Bounding box41.800 × 21.800 × 6.000 mm
  • [03]Volume1,768.836 mm³
Field notes
BY DMITRI SOLOVIEV (DMISOL)

Replacement external button cap carrying the hazard-warning triangle for the dashboard switch identified by the creator as 1238200205. The printable reproduces only the cap, not the complete electrical switch, so that assembly number is not assigned. Use heat-resistant material, retain the original switch mechanism and confirm reliable hazard-light activation, cancellation and indicator visibility before driving.
