PART №1591

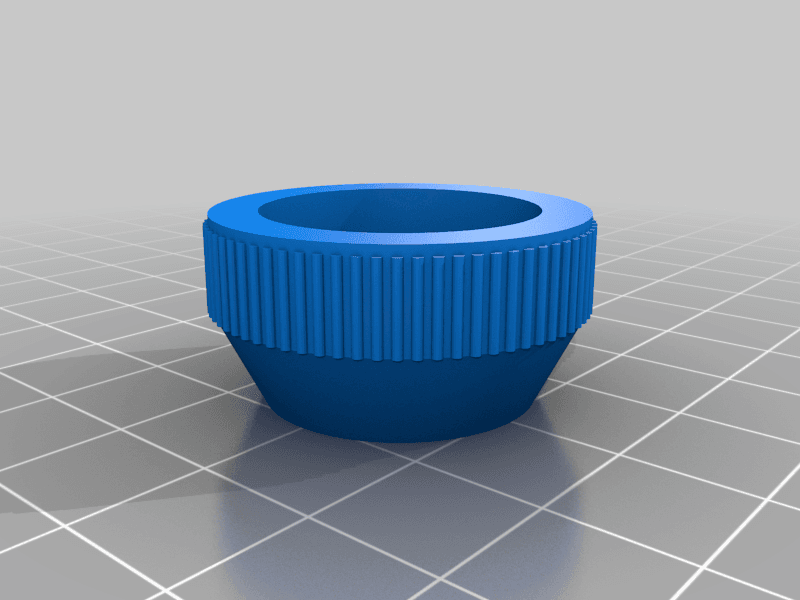

Headlamp Mounting Nut
ABS · Nylon1 FILECC-BYExterior lighting, cameras & sensors
- PART
- Headlamp Mounting Nut
- OEM
- —
- FITS
- W123 Series W123 / S123 / C123
Loading 3D viewer...
Ref 15911 STL filePrints without supports
Field photographs
2 PLATES
PLATE 01 / 02No caption recorded
Files & dimensions
MAN-1591- [01]w123-lamp-nut.stlw123-lamp-nut.stl.STL
- [02]Bounding box30.300 × 30.300 × 15.000 mm
- [03]Volume5,538.458 mm³
Field notes
BY DMITRI SOLOVIEV (DMISOL)Replacement headlamp mounting nut shown beside the original physical component. Compare the thread, diameter and lamp position before use, print in heat- and weather-resistant material, tighten only to the original retention load and verify headlamp aim and stability after installation.
