PART №1631

Headlamp-Wiper Motor Shaft Lock Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NC-SAWipers & washers

SummaryREF 1631

PART: Headlamp-Wiper Motor Shaft Lock Set
OEM: —
FITS: E-Class W124 / S124 / C124 / A124

Loading 3D viewer...

Ref 16312 STL filesPrints without supports

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Files & dimensions

MAN-1631

[01]Headlight_Shaft_Lock_K.stlHeadlight_Shaft_Lock_K.stl.STL
[02]Headlight_Shaft_Lock_L.stlHeadlight_Shaft_Lock_L.stl.STL
[03]Bounding box32.700 × 28.500 × 27.500 mm
[04]Volume9,921.521 mm³

Field notes

BY LUCAS (PTASHEK)

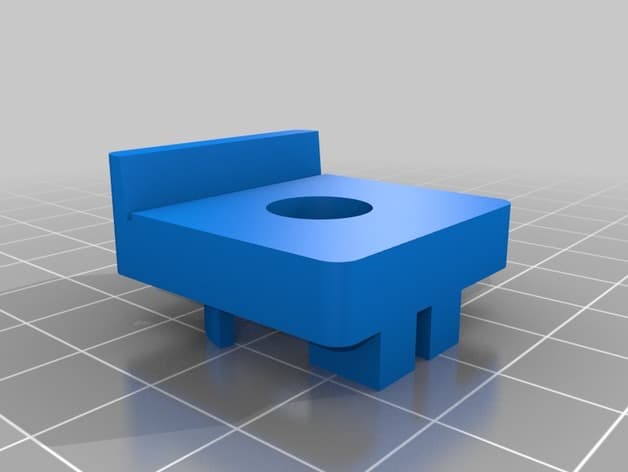

Two replacement shaft-lock variants for the headlamp-wiper motor assembly: K for SWF motors and L for SWF or Bosch motors. The creator tested both on original assemblies and documents the installed position. Identify the motor maker before printing, use heat- and weather-resistant material, preserve cable potting, and bench-test motor retention, full sweep and parking before road use.
