PART №1596

Heater-Control Button

ABS · PETG1 FILECC-BY-NC-SADashboard & controls

SummaryREF 1596

PART: Heater-Control Button
OEM: —
FITS: W123 Series W123 / S123 / C123

Loading 3D viewer...

Ref 15961 STL filePrints without supports

Field photographs

2 PLATES

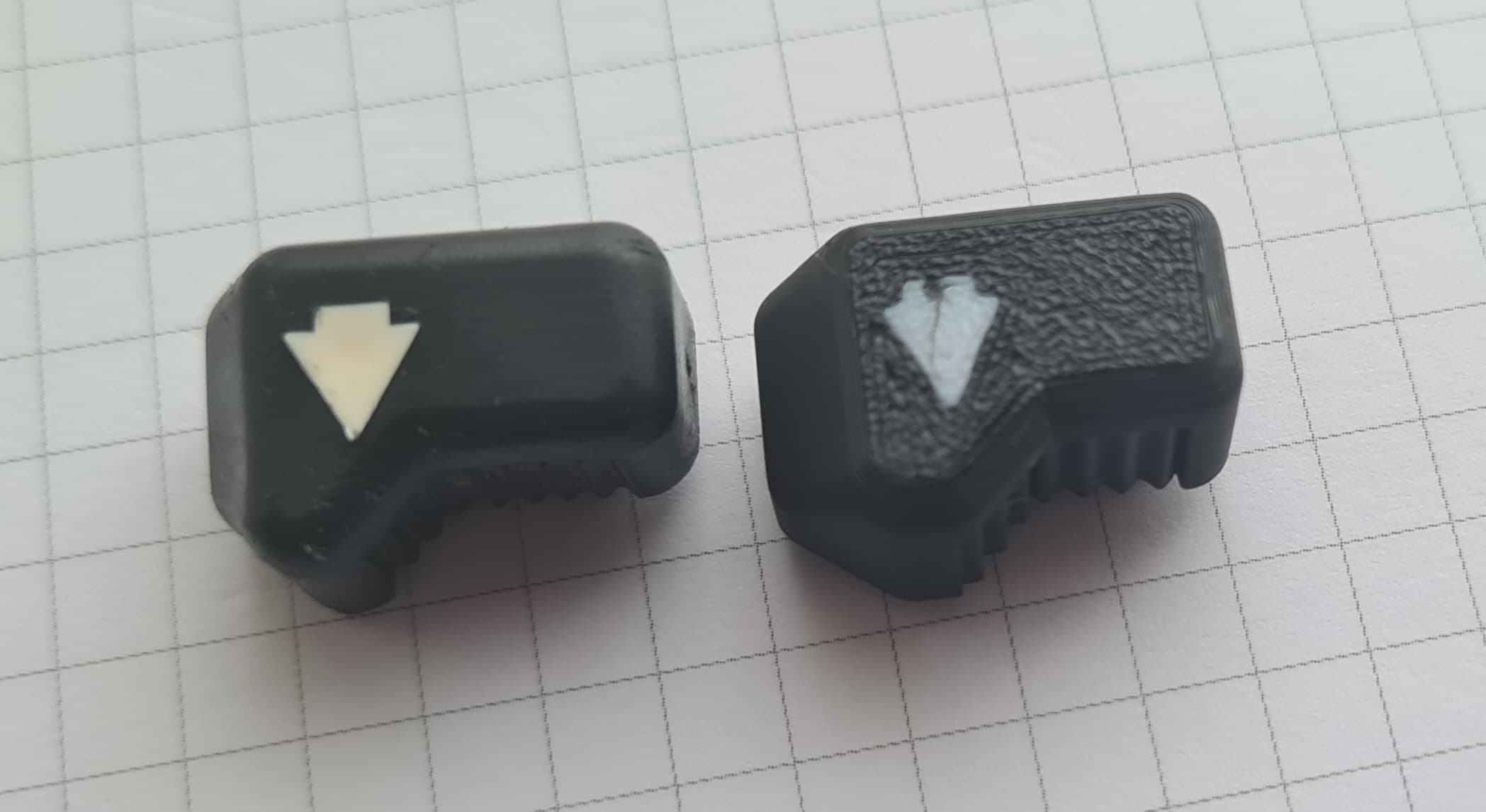

PLATE 01 / 02No caption recorded

Files & dimensions

MAN-1596

[01]W123_Knopf_v3.stlW123_Knopf_v3.stl.STL
[02]Bounding box19.926 × 13.715 × 12.000 mm
[03]Volume1,875.843 mm³

Field notes

BY CPA3D

Replacement heater-control button intended for a two-colour surface indicator. The creator used PLA, 0.08 mm layers, ironing and 100% infill; for automotive cabin use, choose a heat-resistant compatible material and preserve the visible indicator. Compare the shaft interface and confirm the control operates through its full range without binding.

View original source ↗
